Eaton Eaton 9SX 1kVA Tower UPS - 9SX1000IM

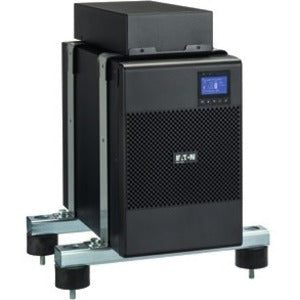

Eaton Eaton 9SX 1kVA Tower UPS - 9SX1000IM-UPSPLUSBATTERY

Eaton Eaton 9SX 1kVA Tower UPS - 9SX1000IM

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.

Eaton Eaton 9SX 1kVA Tower UPS

UPC 0743172090904
Tower - 230 V AC Input - 230 V AC Output - Serial Port - 6 x IEC 60320 C13
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9SX1000IM
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Model: 9SX
Product Name: Eaton 9SX 1kVA Tower UPS
Marketing Information: Online double conversion UPS
Successor of Eaton 9130 UPS

Performance and Availability
  • Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
  • The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for
  • easy replacement of the UPS without powering down critical systems.
  • With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
  • Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.
Manageability
  • The new graphical LCD provides clear information on the UPS's status and measurements on a single screen. Enhanced
  • configuration capabilities are also available.
  • The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton's Intelligent Power® Software.
  • Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.
  • 9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton's Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.
Flexibility
  • One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.
  • More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.
Product Type: Double Conversion Online UPS
Technical Information
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Application/Usage:
  • Industrial Equipment
  • IT Equipment
  • Network Equipment
  • Data Storage
  • Telecommunication
  • Medical
Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 900 W
Input Voltage: 230 V AC
Input Voltage Range: 120 V AC - 276 V AC
Output Voltage: 230 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Interfaces/Ports
Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Capacity: 9000 mAh
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 41 dB
Physical Characteristics
Height: 9.92" (252 mm)
Width: 6.30" (160 mm)
Depth: 15.24" (387 mm)
Form Factor: Tower

Call us if more information required.
