About this UPS

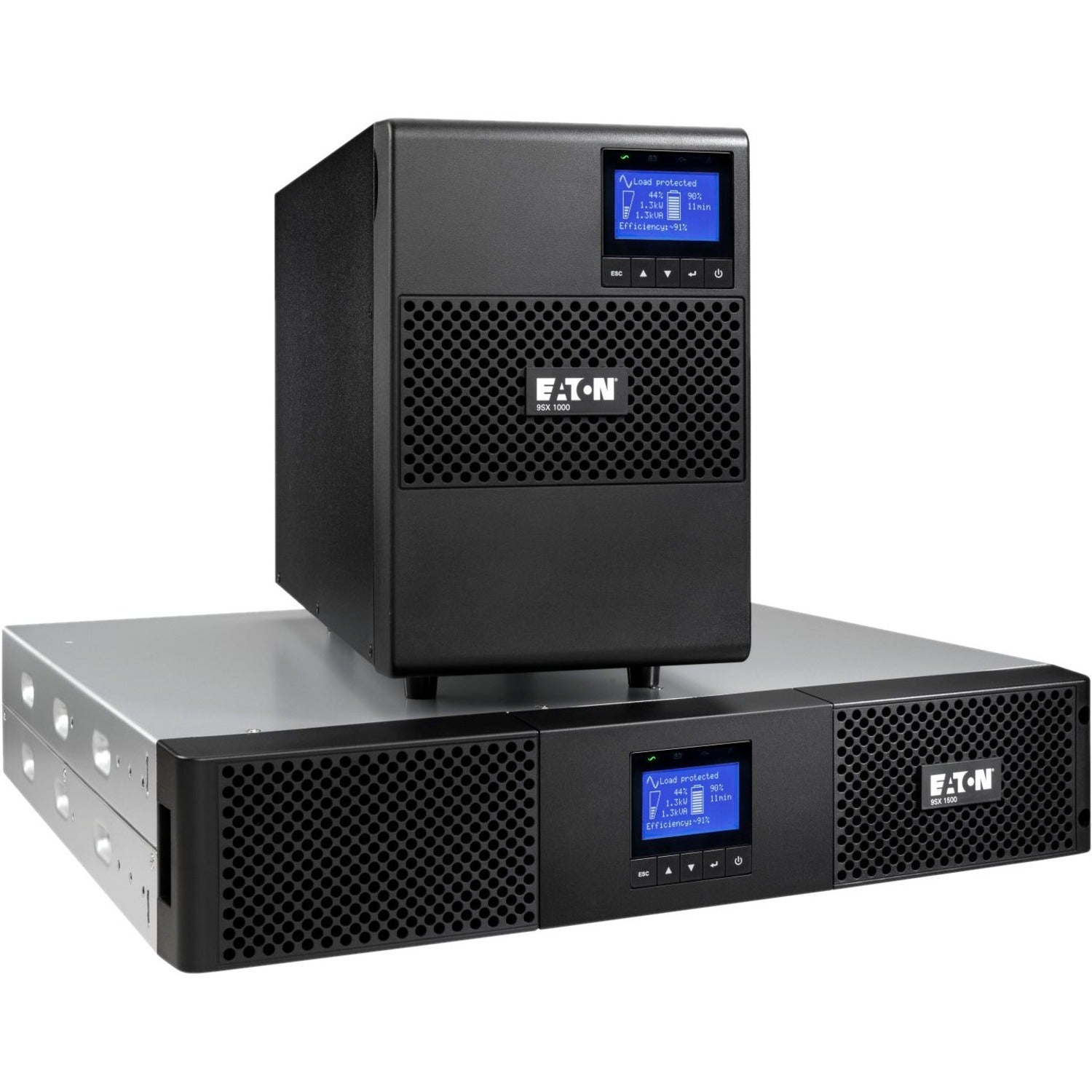

Eaton Eaton 9SX 3kVA UPS
| UPC | 743172091024 |
| 230 V AC Input - 230 V AC Output - Serial Port - 8 x IEC 60320 C13, 1 x IEC 60320 C19 Receptacle(s) | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 9SX3000IM |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Model: | 9SX |
| Product Name: | Eaton 9SX 3kVA UPS |
| Marketing Information: |
Online double conversion UPS Successor of Eaton 9130 UPS Performance and Availability
|
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 120 V AC - 276 V AC |
| Output Voltage: | 230 V AC |
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz | Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Battery Characteristics: | Sealed |
| Battery Chemistry: | Lead Acid |
| Battery Capacity: | 9000 mAh |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Sound Emission: | 45 dB | Physical Characteristics |
| Height: | 13.62" (346 mm) |
| Width: | 8.43" (214 mm) |
| Depth: | 16.22" (412 mm) |
| Weight (Approximate): | 33.40 kg |
Technical specifications
Power
VA Rating
3000VA
Wattage
2700W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C20
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
8× IEC 60320 C131× IEC 60320 C19
Features
Form Factor
Tower
Connectivity
USBRS-232 SerialHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
346 × 214 × 412 mm (13.62 × 8.43 × 16.22 in)
Weight
33.4kg
Certifications
IEC/EN 62040-1UL 1778IEC/EN 62040-2CEcULus ListedEACDNV GL Certified
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (1350 W)
16 min
Full load (2700 W)
6 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The 9SX3000IM side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P91g-3000 3000 VA / 3000 W Online UPS, 230 V
Compared with 9SX3000IM Spec 9SX3000IM Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 3000 W Topology Online Double-Conversion Online Double-Conversion Form Tower Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 8 × IEC 60320 C13, 1 × IEC 60320 C19 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 16 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
$3,064.32 -
Xtreme Power Conversion
Xtreme Power P91g-3kLi 3000 VA / 2700 W Lithium-Ion Online UPS, 208/230 V
Compared with 9SX3000IM Spec 9SX3000IM Xtreme Power Capacity 3000 VA / 2700 W 3000 VA / 2700 W Topology Online Double-Conversion Online Double-Conversion Form Tower Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 8 × IEC 60320 C13, 1 × IEC 60320 C19 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 16 min 23 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- No external battery option
$5,822.09
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
