About this UPS accessory

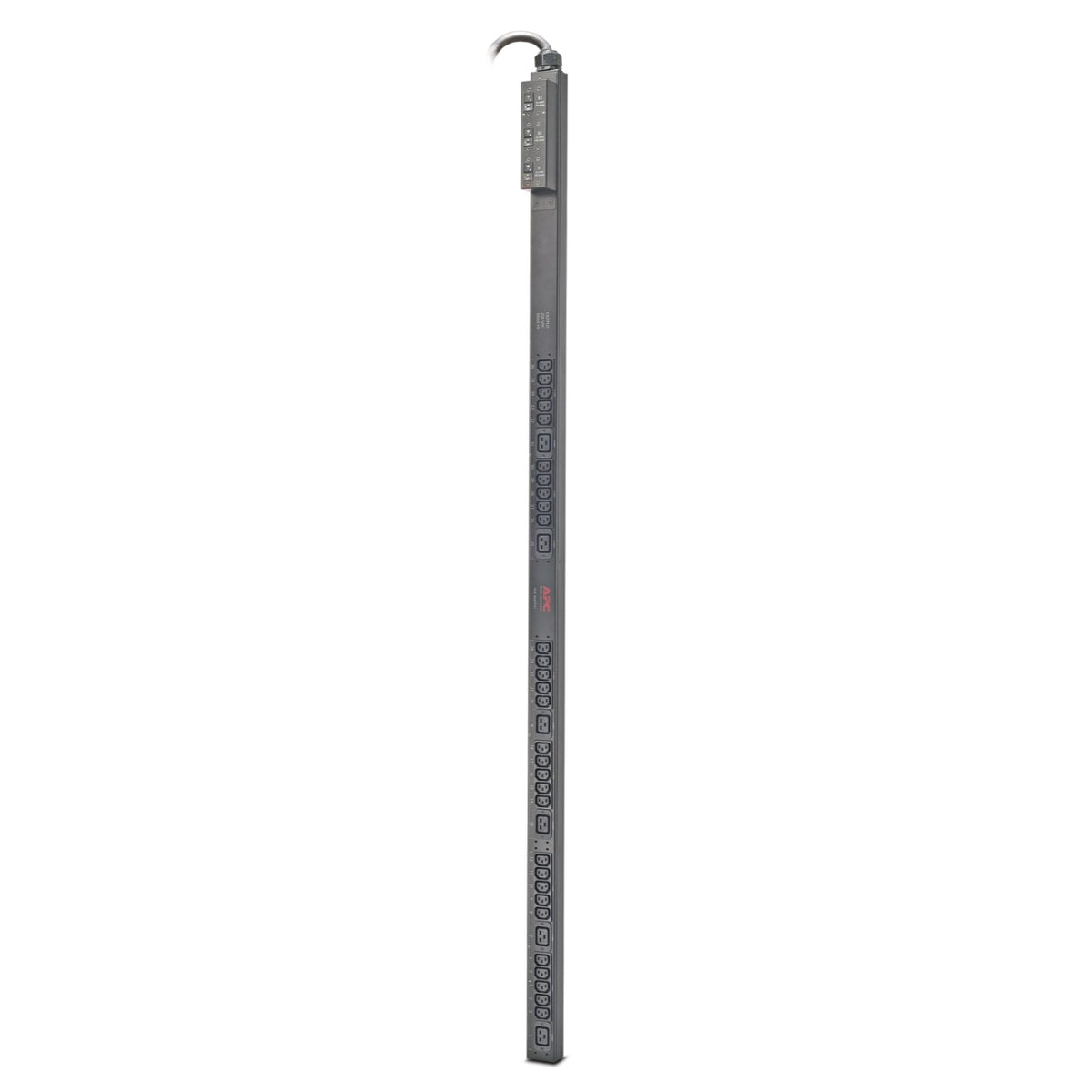

The APC AP7568 is a basic rack PDU.
Specifications
| Product colour | Black |
| Input connection type | Hubbell CS8365C |
| Output connections | -(30) IEC 320 C13. -(6) IEC 320 C19. |
| Cable length | 0.91 m |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Load capacity | 12500 VA |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Dimensions | 56 × 89 × 1778 mm (2.2 × 3.5 × 70 in) W × D × H |
| Weight | 6.95 kg (15.3 lb) |
| UPC | 731304226833 |
| Manufacturer part number | AP7568 |
Why order from us?
- Canadian UPS specialists: expert advice and free technical support by phone
- New stock: sourced through authorized Canadian distribution
- Ships from Canada: tracked delivery across Canada
- We're here to help: call 438-881-3363 or email info@upsplusbattery.com
Technical specifications
Compatibility, installation, and ordering details
Exact model matching
We confirm compatibility against the exact model number on your UPS, not a similar-sounding name.
Technical specifications
Use the product specifications and manufacturer documentation to confirm electrical, connector, and installation requirements.
Installation support
Contact us before ordering if the UPS model, rack configuration, connector, or regional suffix is uncertain.
Canadian fulfilment
Orders are fulfilled in Canada. Ask us to confirm current availability for your selected accessory and UPS model.
Before you order
How do I confirm this accessory fits my UPS?
Send us your complete UPS model number and we will confirm this accessory fits before you order.
Does compatibility mean the item is in stock?
No. Compatibility and availability are separate. The linked UPS status and the accessory's own product page provide current ordering information.
What installation details should I check?
Confirm the exact UPS model, voltage, connector or communication interface, rack or mounting requirements, quantity limits, and any required cables or dependencies.
