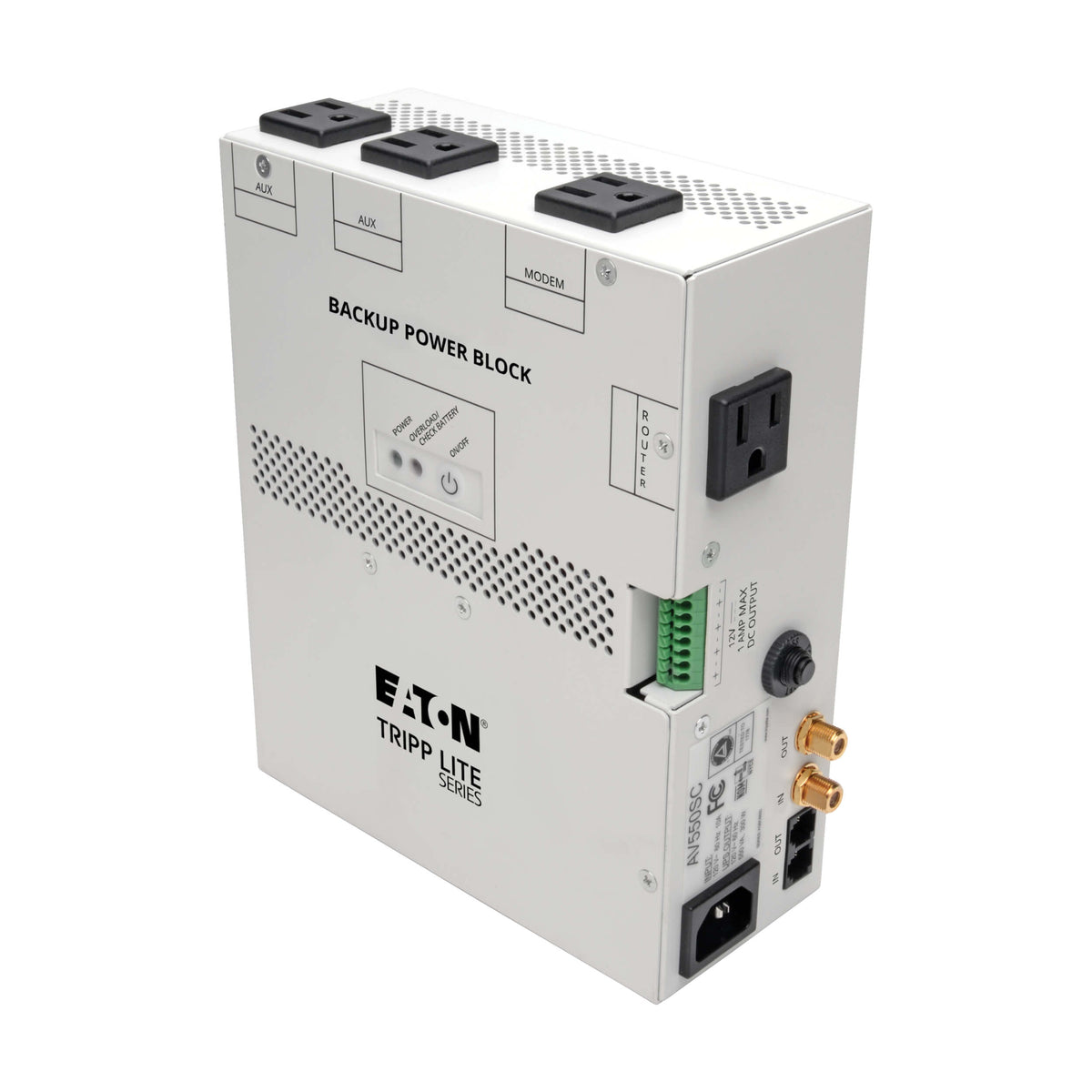

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Standby UPS
- Manufacturer Part Number: AV550SC
- Input Voltage: 110 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 60320 C14
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 550 VA/300 W
Marketing Information:
The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 9 Hour |
| Height | 8.40" (213.36 mm) |
| Width | 6.80" (172.72 mm) |
| Depth | 3" (76.20 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 7.80 lb (3538.02 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The AV550SC side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power A60-550 550 VA / 330 W Standby UPS, 120 V
Compared with AV550SC Spec AV550SC Xtreme Power Capacity 550 VA / 300 W 550 VA / 330 W Topology Standby Standby Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 5 × NEMA 5-15R, 5 × NEMA 5-15R (5 on battery) Runtime, half load 10 min 8 min Same class on every point compared.
$168.72 -
Xtreme Power Conversion
Xtreme Power S71-700 700 VA / 420 W Line-Interactive UPS, 120 V
Compared with AV550SC Spec AV550SC Xtreme Power Capacity 550 VA / 300 W 700 VA / 420 W Topology Standby Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R 4 × NEMA 5-15R Runtime, half load 10 min 6 min Differences
- Line-interactive, a step up from standby
- Larger unit: 420 W instead of 300 W
$243.57
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
