About this UPS

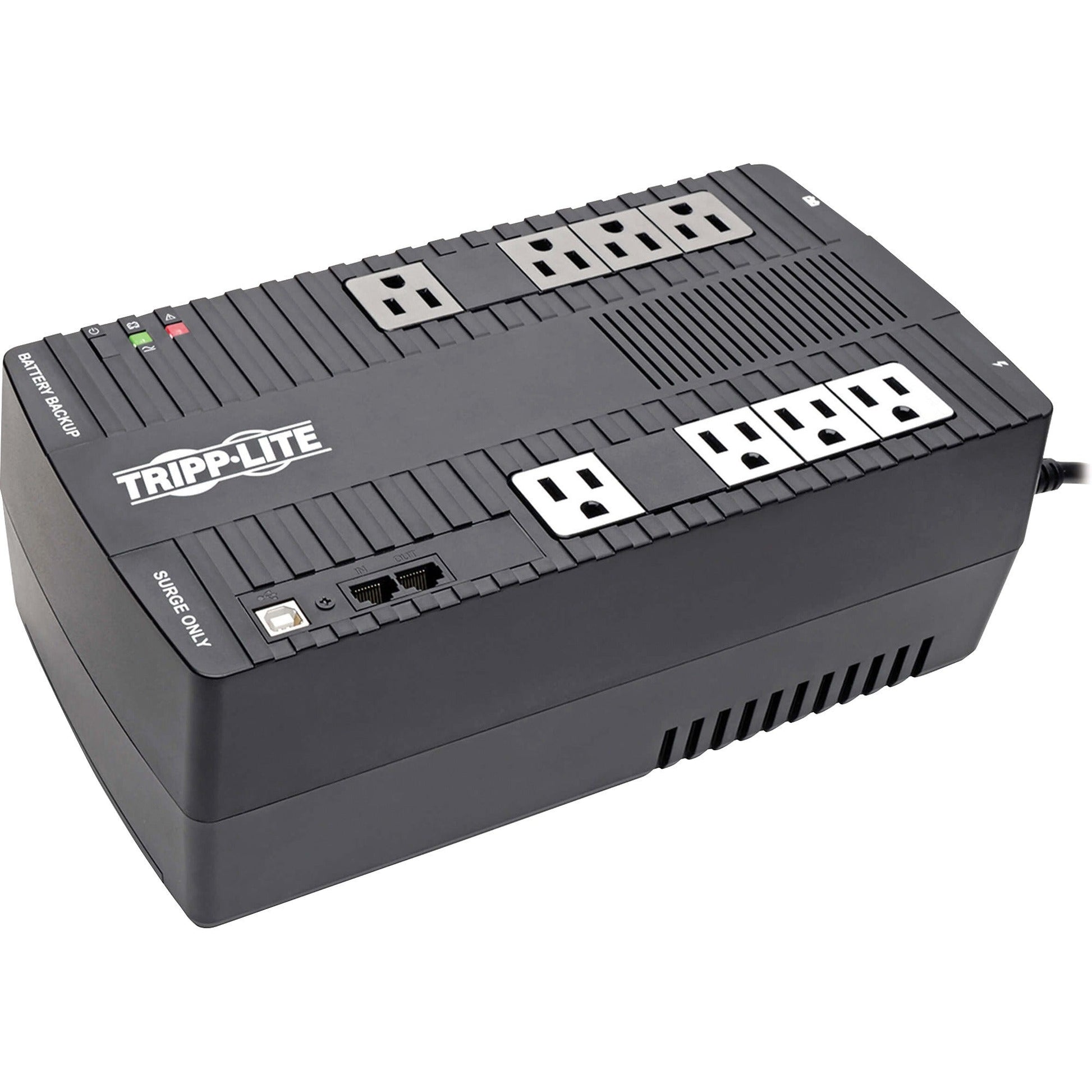

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets
| UPC | 0037332211453 |
| Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - USB - 8 x NEMA 5-15R - 4 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | AVR550U |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Series: | AVR |
| Product Model: | AVR550U |
| Product Name: | Desktop/Wall Mount Battery Backup Outlets |
| Marketing Information: | AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable. |
| Packaged Quantity: | 1 Each |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| AVR Range: | Boost +18% / Buck -15% |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 4 |
| Number of Surge-only Outlets: | 4 |
| Dataline Protection: | RJ-11 |
| Cord Length: | 6 ft |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Greater than 95% efficiency - GREEN UPS |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 550 VA |
| Load Capacity (Watt): | 300 W |
| Input Voltage: | 120 V AC |
| Input Current: | 12 A |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 316 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
Interfaces/Ports |
| USB: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 9 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 4.33" (109.98 mm) |
| Width: | 6.40" (162.56 mm) |
| Depth: | 12" (304.80 mm) |
| Form Factor: | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate): | 6.21 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert UPS monitoring software |
| Recycled: | No |
| Assembly Required: | No |
| Country of Origin: | Vietnam |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year Lifetime |
| Additional Warranty Information: |
|
Technical specifications
Power
VA Rating
550VA
Wattage
300W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
110V
Receptacles
8× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["USB""HTTP/Web Management"]
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
110 × 163 × 305 mm (4.33 × 6.40 × 12.00 in)
Weight
6.21kg
Manufacturer Warranty
2 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (150 W)
7.0 min
Full load (300 W)
2.0 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
