About this UPS

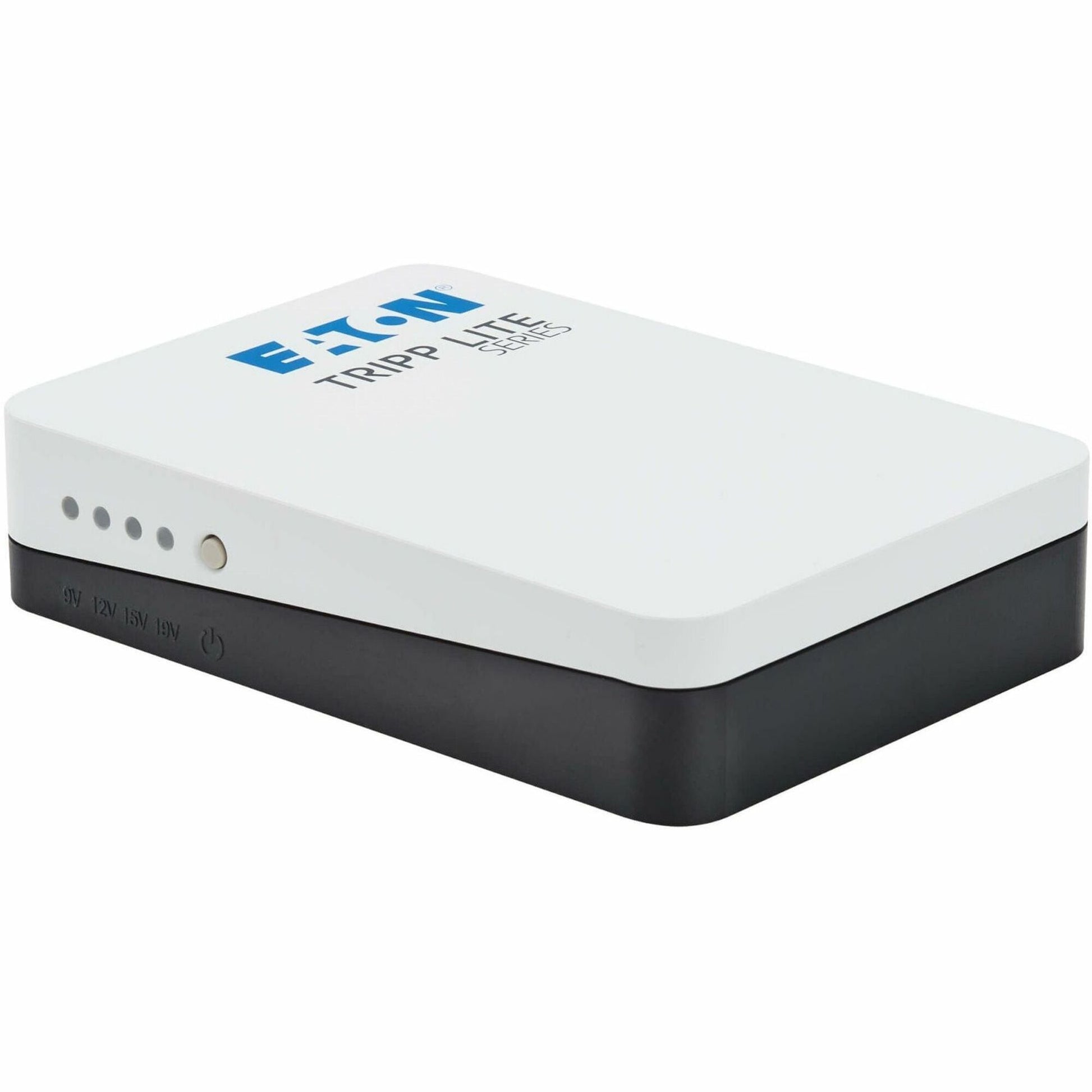

Tripp Lite series Battery Backup BC36ML 36VA Desktop UPS
| UPC | 0037332279569 |
| Desktop - 6 Hour Recharge - 10.80 Minute Stand-by - 120 V AC, 230 V AC Input - 9 V DC, 12 V DC, 15 V DC, 19 V DC Output | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | BC36ML |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite series |
| Product Series: | Battery Backup |
| Product Model: | BC36ML |
| Product Name: | Battery Backup BC36ML 36VA Desktop UPS |
| Marketing Information: |
Features | Desktop Battery Backup Keeps Critical Home Equipment Running During Power Outages You have devices in your home that need to be operational at all times, especially when the power is out. The Internet router that keeps you connected to the world. The IP cameras that help keep you safe. The home assistants, such as the Amazon Echo and Google Nest, and the smart controllers that maintain lighting and temperature. The BC36ML AC-to-DC battery backup not only keeps those devices up and running during a power outage, but it also maintains your ability to control them remotely. Compatible with a Wide Range of Essential Home Devices The BC36ML single-device mini UPS system is ideal for routers, modems, wi-fi extenders, IP cameras, access control devices, VoIP phones, medical alert solutions, portable computer monitors and other low-power devices that may need battery backup. It replaces the standard AC power adapter provided with your device, which ensures power protection without additional equipment. Dual Lithium-Ion Batteries Ensure Reliable Backup Power This 36V battery backup features two 2200mAh lithium-ion batteries that ensure continuous operation for one connected device at a time in your home office or residential application. The cold-start function also allows the unit to be used as a power bank. Adaptable to Your Power Needs The BC36ML allows you to select the appropriate output DC voltage corresponding to your equipment: 9V/3A, 12V/3A, 15V/2.4A or 19V/1.9A (12V is the default). It features an attached output cord and four barrel adapters (6.3 x 3.0 mm, 4.75 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm) that take the place of your connected device's power cord. Just connect the BC36ML to an AC wall outlet using the included input cord with NEMA 5-15P plug. Recommended for Home Office or Residential Purposes Easy-to-read LED indicators let you at a glance which output voltage you've selected and how much battery capacity remains in the BC36ML. The unit is small, silent and stylish to fit inconspicuously into your home or business environment. It's easy to set up in just a few minutes. |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: |
|
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 36 VA |
| Load Capacity (Watt): | 36 W |
| Input Voltage: |
|
| Output Voltage: |
|
| Input Frequency: | 60 Hz | Controls/Indicators |
| Status Indicators: |
LED Indicators:
|
Battery Information |
| DC System Voltage: | 7.4 V DC |
| Number of Batteries: | 2 |
| Battery Chemistry: | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load): | 10.80 Minute |
| Backup/Run Time (Half Load): | 30.40 Minute |
| Typical Battery Recharge Time: | 6 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 95 °F (35 °C) |
| Storage Temperature: | -4 °F (-20 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Height: | 1.18" (30 mm) |
| Width: | 3.74" (95 mm) |
| Depth: | 5.35" (136 mm) |
| Form Factor: | Desktop |
| Weight (Approximate): | 350 g | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
