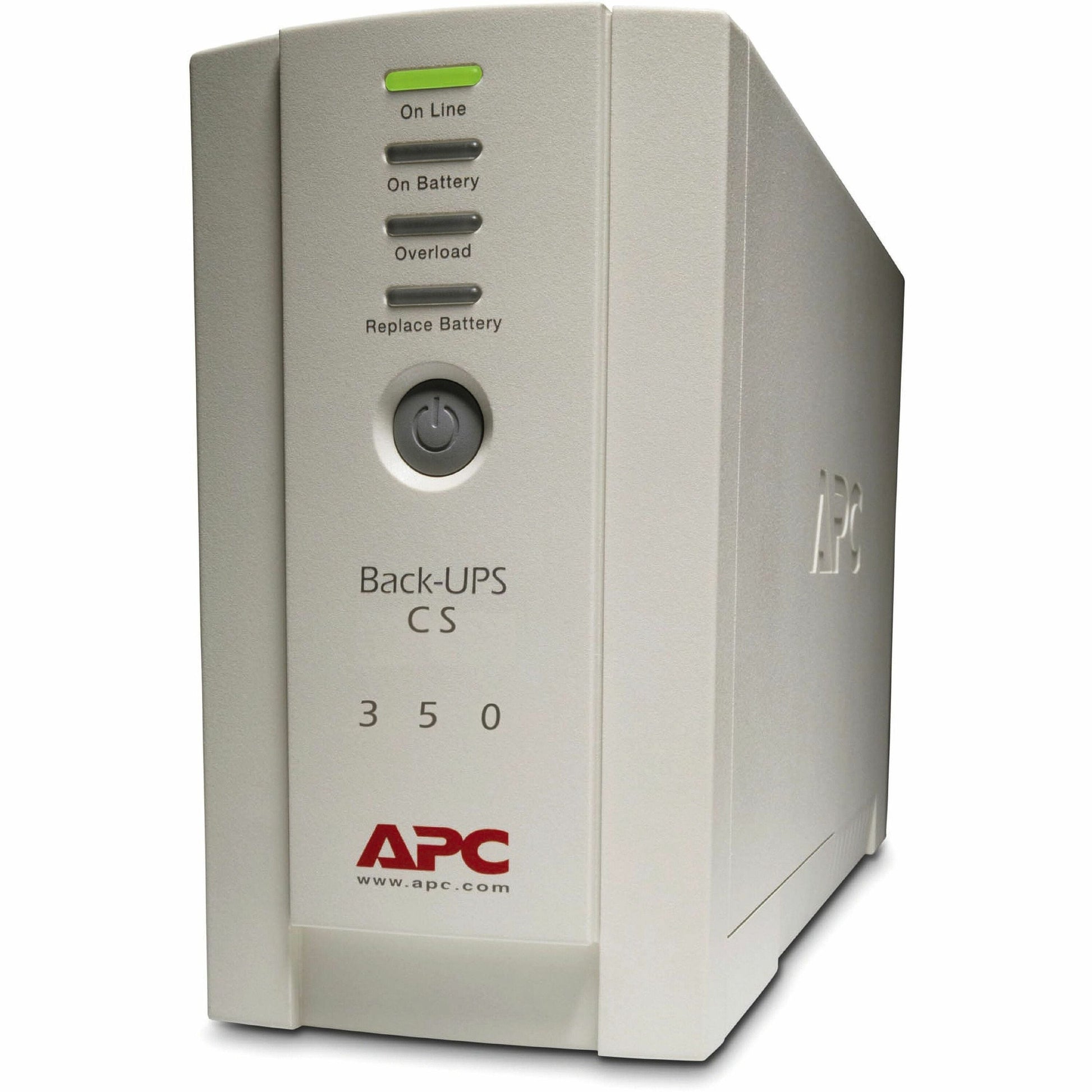

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Standby UPS
- Manufacturer Part Number: BK350
- Input Voltage: 120 V
- Form Factor: Tower
- Waveform Type: Step Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: Back-UPS CS
- Backup/Run Time (Half Load): 23.70 Minute
- Backup/Run Time (Full Load): 6.60 Minute
- Load Capacity: 350 VA
Marketing Information:
Protect your electronics with this 6-outlet, 120-volt battery backup system. 210-watt back-UPS features a surge energy rating of 1,020 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-11 |
| Bypass Switch | Not Provided |
| Cord Length | 6 ft |
| Load Capacity (VA) | 350 VA |
| Input Voltage | 120 V |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Power Consumption | 210 W |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 1020 J |
| Alarm |
|
| Battery Management | Intelligent Battery Management |
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring Fault and Overload indicators |
| Serial Port | Yes |
| USB | Yes |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6.60 Minute |
| Backup/Run Time (Half Load) | 23.70 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Maximum Operating Temperature | 113 °F (45 °C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 20 BTU/h |
| Color Family | Beige |
| Product Color | Beige |
| Height | 6.50" (165 mm) |
| Width | 3.58" (91 mm) |
| Depth | 11.18" (284 mm) |
| Form Factor | Tower |
| Mounting Location | Front |
| Weight (Approximate) | 12.52 lb (5678.98 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|T�V |
| Recycled | No |
| Post-consumer-waste% | 0% |
| Assembly Required | No |
| Energy Star | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK350_ROHS_DECLARATION&p_FileName=BK350KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760892&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760892&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
| Directly Connected Equipment Guarantee |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
