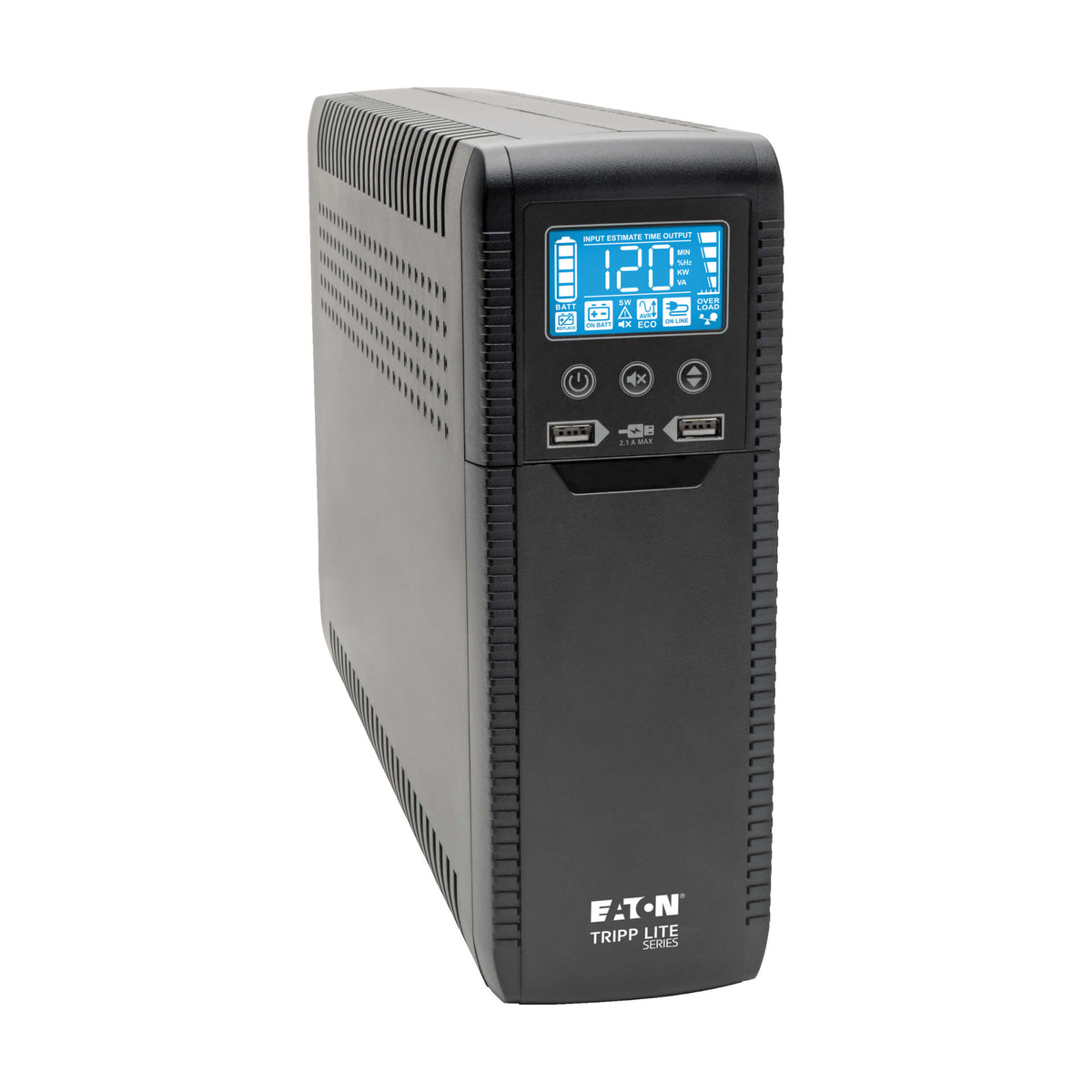

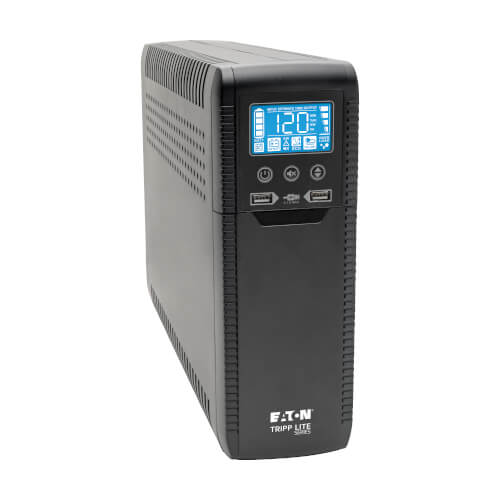

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: ECO1500LCD
- Input Voltage: 120 V AC
- Form Factor: Tower
- Waveform Type: Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: ECO
- Backup/Run Time (Half Load): 12 Minute
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 1.44 kVA/900 W
Marketing Information:
Line-interactive UPS provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. ECO power-saving option turns off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. Automatic voltage regulation (AVR) corrects low-voltage conditions to protect your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. Built-in audible alarm sounds to warn you of a low battery or overload conditions.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection |
|
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Alarm |
|
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 7 Hour |
| Hot Swappable | Yes |
| Height | 11" (279.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 16.14" (409.96 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 26.44 lb (11992.98 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Assembly Required | No |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 year limited warranty |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
