| UPC | 0037332211132 |
| Ultra-compact Desktop/Tower/Wall Mount - 8 Hour Recharge - 2.30 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - USB - 12 x NEMA 5-15R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | ECO850LCD |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Series: | ECO |
| Product Model: | ECO850LCD |

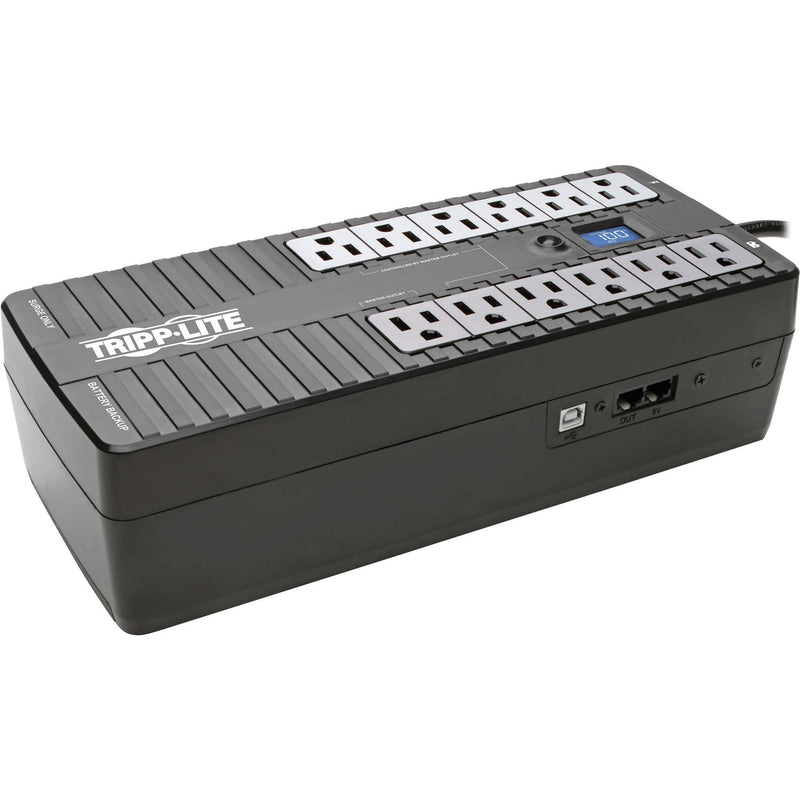

| Product Name: | 850VA Ultra-compact Green LCD UPS Systm |
| Marketing Information: | Ultra-compact, green UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99 percent, this UPS offers energy savings plus cooler operation by limiting UPS power consumption. Interactive LCD screen displays operating conditions and lets you change settings. Design also features six battery-supported outlets for computer and peripherals plus six surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories. Built-in, single-line, tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software enables unattended system shutdown without data loss in the case of an extended power failure. |
| Packaged Quantity: | 1 Each |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Number of Surge-only Outlets: | 6 |
| Dataline Protection: | RJ-11 |
| Protection Type: |
|
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 850 VA |
| Load Capacity (Watt): | 425 W |
| Input Voltage: | 120 V AC |
| Input Current: | 10 A |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 316 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity |
Interfaces/Ports |
| USB: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Backup/Run Time (Full Load): | 2.30 Minute |
| Backup/Run Time (Half Load): | 9 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.50" (88.90 mm) |
| Width: | 5.12" (130.05 mm) |
| Depth: | 12.20" (309.88 mm) |
| Form Factor: | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate): | 3.09 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | UL Listed Certification |
| Recycled: | No |
| Assembly Required: | No |
| Energy Star: | Yes |
| Country of Origin: | Vietnam |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: |
|
