Vertiv Liebert GXT5 UPS - 6kVA/6kW 230V | Online Rack Tower Energy Star - GXT5-6000IRT5UXLN
Vertiv Liebert GXT5 UPS - 6kVA/6kW 230V | Online Rack Tower Energy Star - GXT5-6000IRT5UXLN
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
Vertiv Liebert GXT5 UPS - 6kVA/6kW 230V | Online Rack Tower Energy Star
| UPC | 0767041026658 |
| Double Conversion | 5U | Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | GXT56000IRT5UXLN |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | GXT |
| Product Model: | GXT5-6000IRT5UXLN |
| Product Name: | GXT5 UPS-6kVA/6kW/230V|Online Rack Tower Energy Star |
| Marketing Information: | The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 6kVA/6kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. |
| Product Condition: | New |
| Packaged Quantity: | 1 |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 6 kVA |
| Load Capacity (Watt): | 6 kW |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 115 V AC - 288 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave | Controls/Indicators |
| Status Indicators: | LED/Full Color Graphic LCD |
Interfaces/Ports |
| Serial Port: | Yes |
| VGA: | No |
| Modem (RJ-11): | No |
| Network (RJ-45): | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |

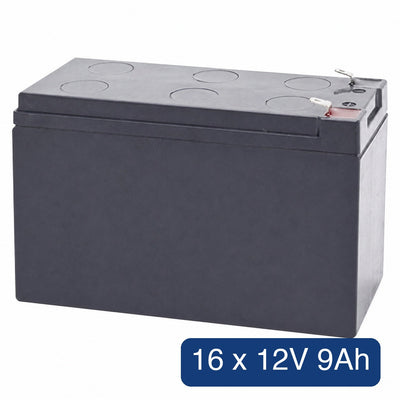

| Number of Batteries: | 16 |
| Battery Characteristics: | Valve-regulated, Non-spillable |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 12V |
| Battery Capacity: | 9000 mAh |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 14.50 Minute |
| Battery Life: | 5 Year |
| Hot Pluggable: | Yes |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Sound Emission: | 55 dB | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 8.54" (217 mm) |
| Width: | 16.93" (430 mm) |
| Depth: | 24.80" (630 mm) |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 70.80 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
