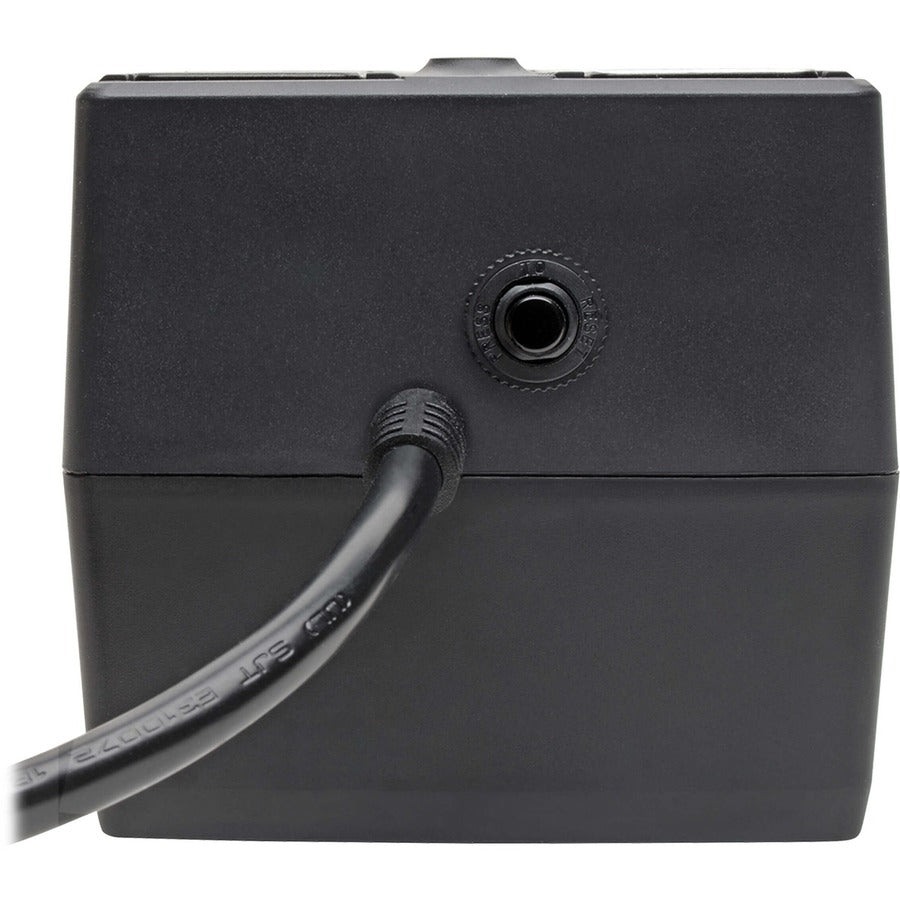

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Standby UPS
- Manufacturer Part Number: INTERNET550U
- Input Voltage: 120 V AC
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Waveform Type: Pure Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: Internet Office
- Backup/Run Time (Half Load): 5 Minute
- Backup/Run Time (Full Load): 1.20 Minute
- Load Capacity: 550 VA/300 W
Marketing Information:
UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Two of the 8 output receptacles are widely spaced to accommodate large transformer plugs. Four outlets with full battery support and surge suppression protect computers, monitors and other vital system components from loss of power. Four additional outlets with surge suppression-only are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 550VA/300 watt power handling ability supports entry-level PCs for up to 17 minutes during power failures.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Dataline Protection |
|
| Protection Type |
|
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage |
|
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| Alarm |
|
| Status Indicators | 1 x Status LED reports operating mode and fault status |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Storage Temperature | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Height | 4.13" (105 mm) |
| Width | 4.33" (110 mm) |
| Depth | 7.28" (185 mm) |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 3.97 lb (1800 g) |
| Package Contents |
|
| Certifications & Standards | Energy Star |
| Software Included | PowerAlert Software |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
