In stockTripp Lite
· SMART1200XLHG

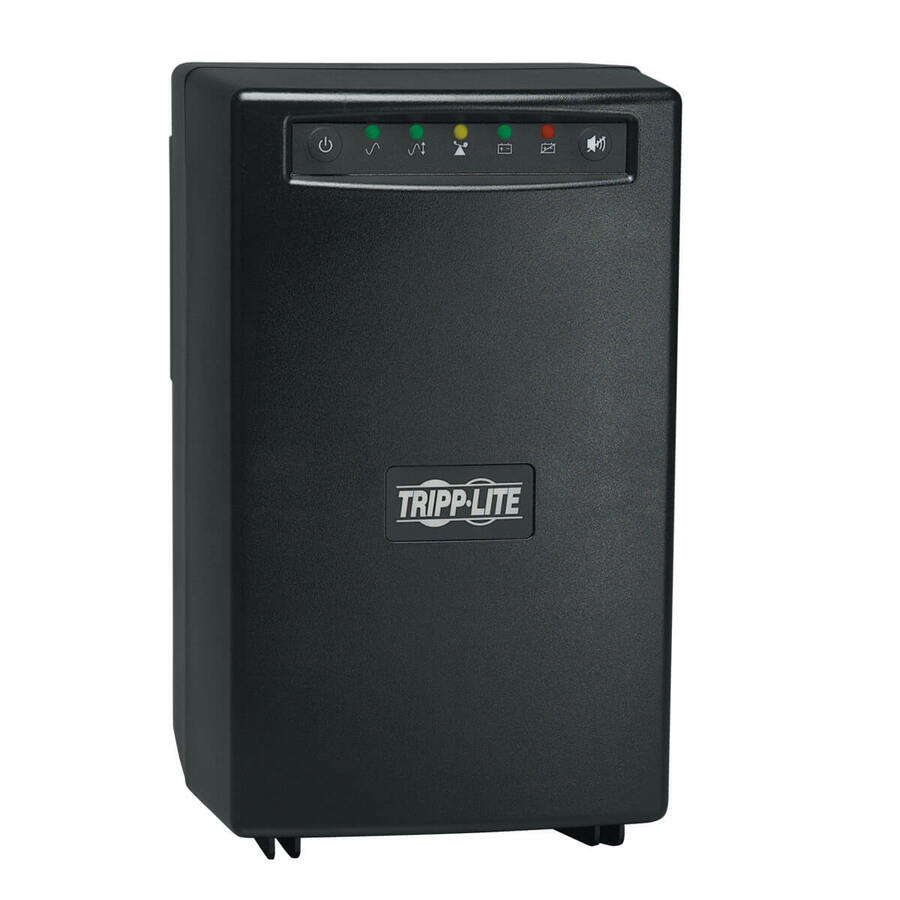

Tripp Lite SmartPro SMART1200XLHG 1000 VA / 750 W Tower Line-Interactive UPS
- Power
- 1000 VA / 750 W
- Form
- Tower
- Outlets
- 4× NEMA 5-15R
$1,631.99
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNI1000ISO
- Input Voltage: 110 V AC
- Form Factor: Tower
- Plug/Connector Type: NEMA 5-15P
- Product Family: OmniSmart
- Backup/Run Time (Half Load): 24 Minute
- Backup/Run Time (Full Load): 8 Minute
- Load Capacity: 1 kVA/700 W
Marketing Information:
Tripp Lite's OMNI1000ISO offers complete UPS protection with built-in line-interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Built-in isolation transformer with Faraday shield offers full isolation and complete common mode noise rejection. 1000VA power-handling capacity supports point-of-sale applications, computers, internetworking equipment and home theater systems during commercial power failures. Line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V back to normal 120V levels, reserving battery power for use during complete power failures. Built-in USB communications port works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| USB | Yes |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 24 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Height | 12.75" (323.85 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 9.25" (234.95 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 36.11 lb (16380 g) |
| Package Contents |
|
| Additional Information | Ideal for providing a continuous clean grounding reference, voltage regulation and backup power for sensitive POS, networking and home-theater applications. |
| Certifications & Standards | UL1778 (USA), CSA C22.2 No. 107.3 (Canada), Class A (Emissions), NOM (Mexico) |
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1000VA
Wattage
700W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
324 × 190 × 235 mm (12.75 × 7.50 × 9.25 in)
Weight
16.38kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (350 W)
24 min
Full load (700 W)
8 min
Available now
The manufacturer no longer makes the OMNI1000ISO. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with OMNI1000ISO Spec OMNI1000ISO Xtreme Power Capacity 1000 VA / 700 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 24 min 11 min Differences
- Lower VA rating: 800 VA instead of 1000 VA
$1,068.18 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with OMNI1000ISO Spec OMNI1000ISO Xtreme Power Capacity 1000 VA / 700 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 24 min 16 min Differences
- Lower VA rating: 700 VA instead of 1000 VA
- Online double-conversion, a step up from line-interactive
$975.80 Request a freight quote -
Xtreme Power Conversion
Xtreme Power S71-1500 1500 VA / 900 W Line-Interactive UPS, 120 V
Compared with OMNI1000ISO Spec OMNI1000ISO Xtreme Power Capacity 1000 VA / 700 W 1500 VA / 900 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 6 × NEMA 5-15R Runtime, half load 24 min Not stated Differences
- Larger unit: 900 W instead of 700 W
$522.80
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the OMNI1000ISO. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

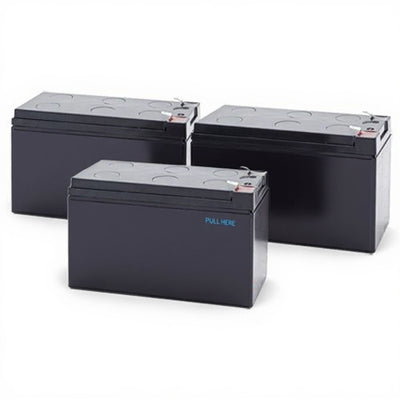

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
