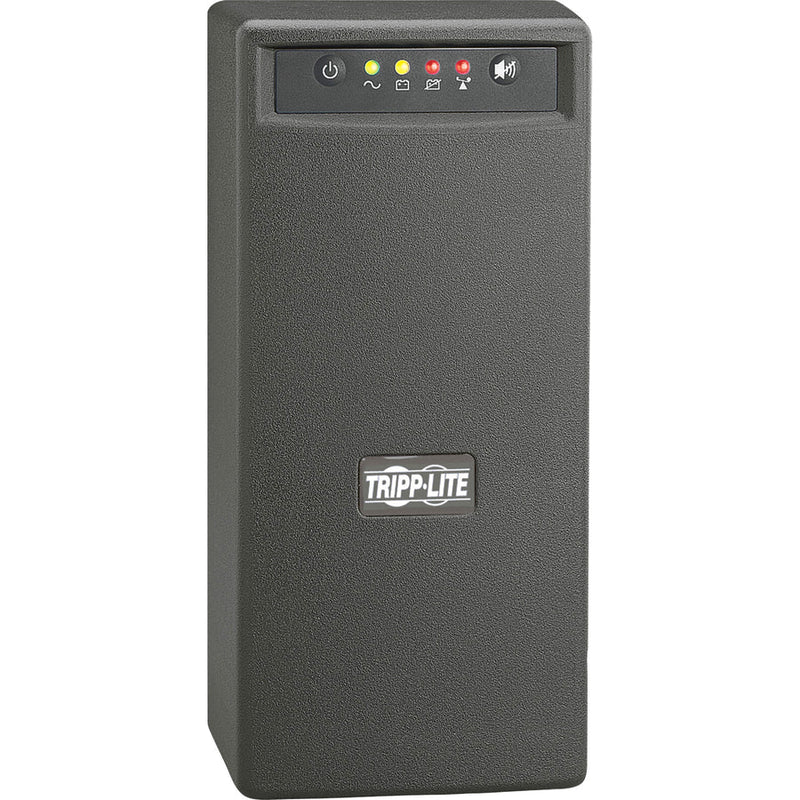

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNIVS1000
- Input Voltage: 110 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: Omni VS
- Backup/Run Time (Half Load): 14 Minute
- Backup/Run Time (Full Load): 3.50 Minute
- Load Capacity: 1 kVA/500 W
Marketing Information:
Line interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 83 volts back to usable levels without using battery power. Includes six battery-supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in, single-line RJ phone suppression jacks protect modem, fax machine or cordless phone with a standard dial-up/DSL phone connection. Offers 7-minute battery runtime with a full load of 1000VA/500 watts and 18 minutes with a half load of 500VA/250 watts.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail |
|
| Dataline Protection | RJ-45 |
| Protection Type | Surge |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| Alarm | On Battery |
| Status Indicators | 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation |
| USB | Yes |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Black |
| Product Color | Black |
| Height | 10.75" (273.05 mm) |
| Width | 5.25" (133.35 mm) |
| Depth | 7.25" (184.15 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 21 lb (9525.44 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
