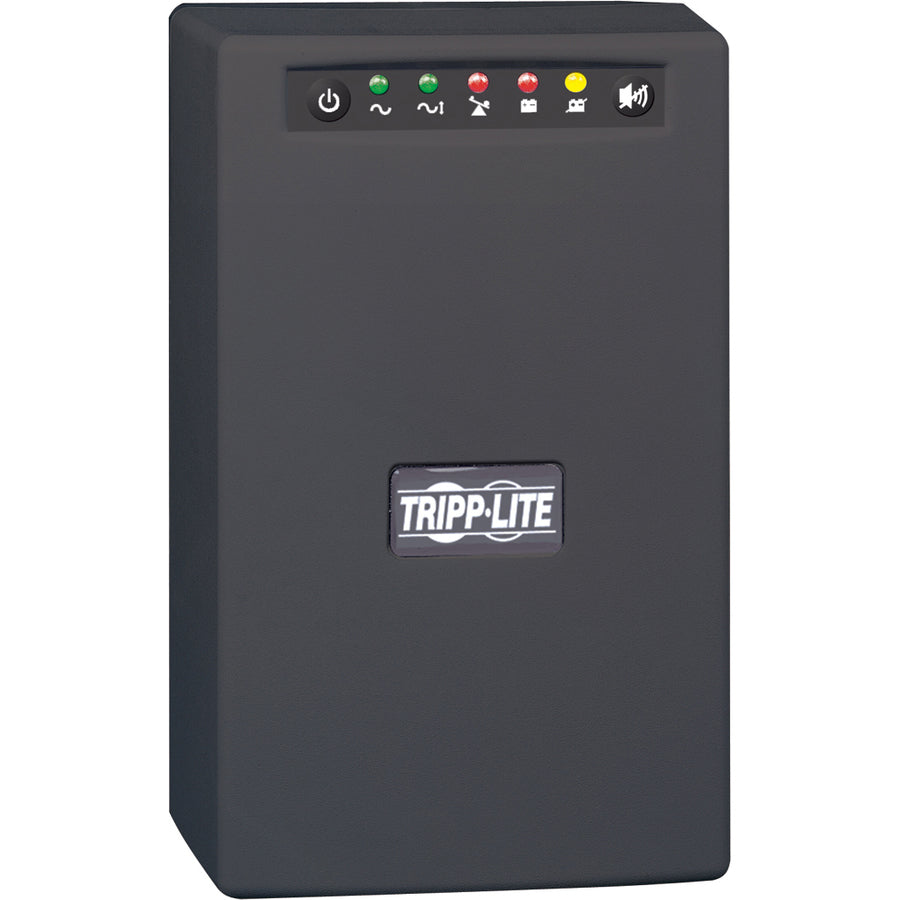

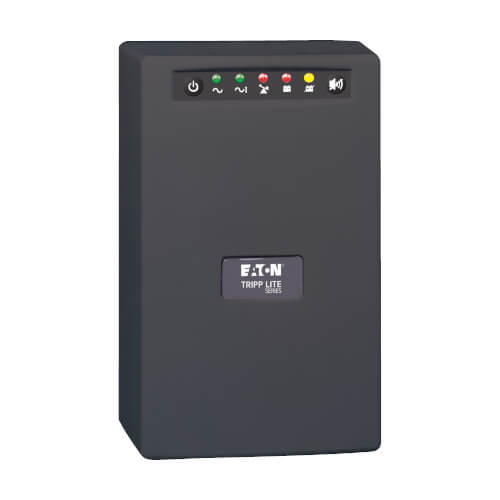

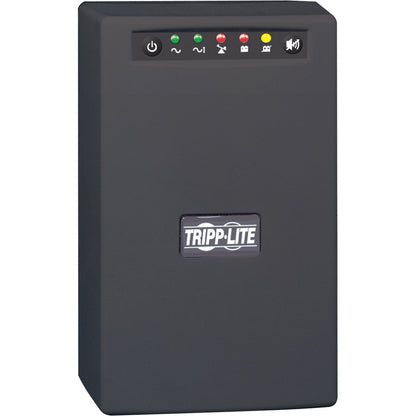

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNIVSINT1500XL
- Input Voltage: 220 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Plug/Connector Type: IEC 320-C14
- Product Family: Omni VS
- Backup/Run Time (Half Load): 14 Minute
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 1.50 kVA/940 W
Marketing Information:
Tripp Lite's OMNIVSINT1500XL line interactive UPS system offers voltage regulation, surge suppression and expandable battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151 and overvoltages up to 282 volts back to usable 230V levels without using battery power. Includes 8 IEC320-C13 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ jacks. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via access panel.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |

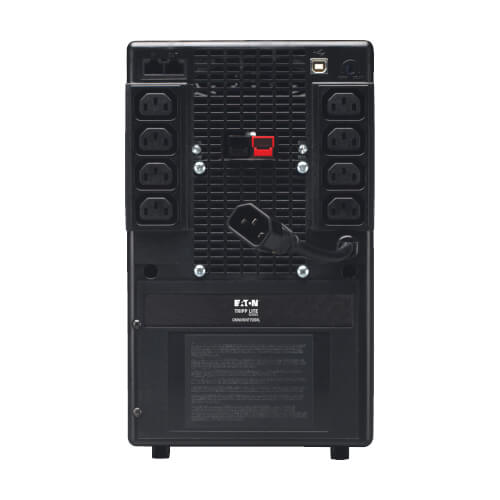

| Receptacle Detail | 8 x IEC 60320 C13 |
| Dataline Protection |
|
| Cord Length | 5.9 ft (1.80 m) |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 940 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 1920 J |
| Alarm | Power Failure |
| Status Indicators |
4 Front Panel LEDs:
|
| USB | Yes |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Black |
| Product Color | Black |
| Height | 11.75" (298.45 mm) |
| Width | 7.25" (184.15 mm) |
| Depth | 7.50" (190.50 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 33 lb (14968.55 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
