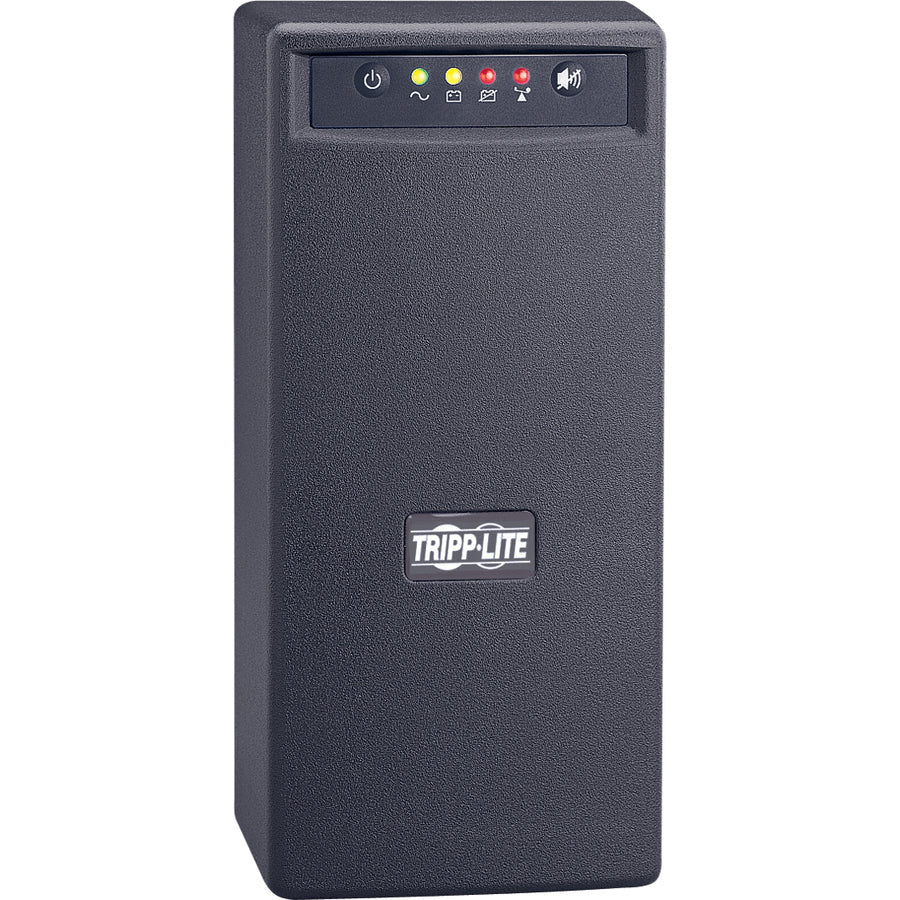

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNIVSINT800
- Input Voltage: 220 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 320-C14
- Product Family: Omni VS
- Backup/Run Time (Half Load): 19 Minute
- Backup/Run Time (Full Load): 6 Minute
- Load Capacity: 800 VA/475 W
Marketing Information:

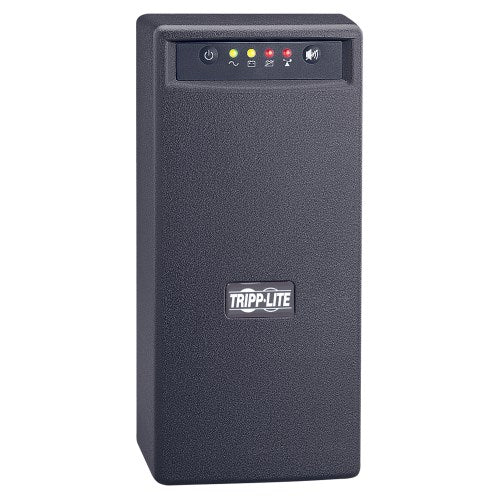

Tripp Lite's OMNIVSINT800 line interactive UPS system offers voltage regulation, surge suppression for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 40 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 159 volts back to usable levels without using battery power. Includes 4 outlets with battery support and AC surge suppression. USB port enables unattended system shutdown without data loss. PowerAlert software available via free download from www.tripplite.com. Built-in single line RJ phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and 4 front panel LEDs. 800VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Supports battery replacement via built-in access panel.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |

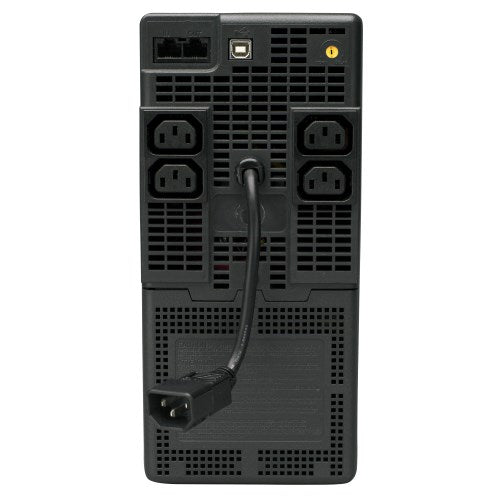

| Receptacle Detail | 4 x IEC 60320 C13 |
| Dataline Protection | RJ-11 |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 800 VA |
| Load Capacity (Watt) | 475 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| USB | Yes |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Height | 10.75" (273.05 mm) |
| Width | 5.25" (133.35 mm) |
| Depth | 7.50" (190.50 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 19.50 lb (8845.05 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
