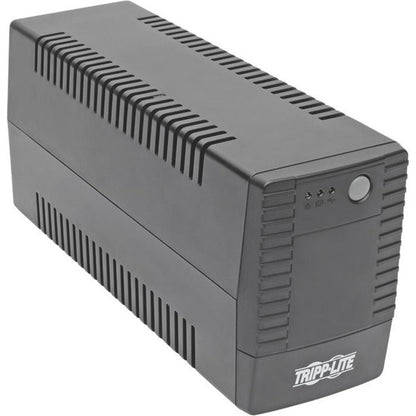

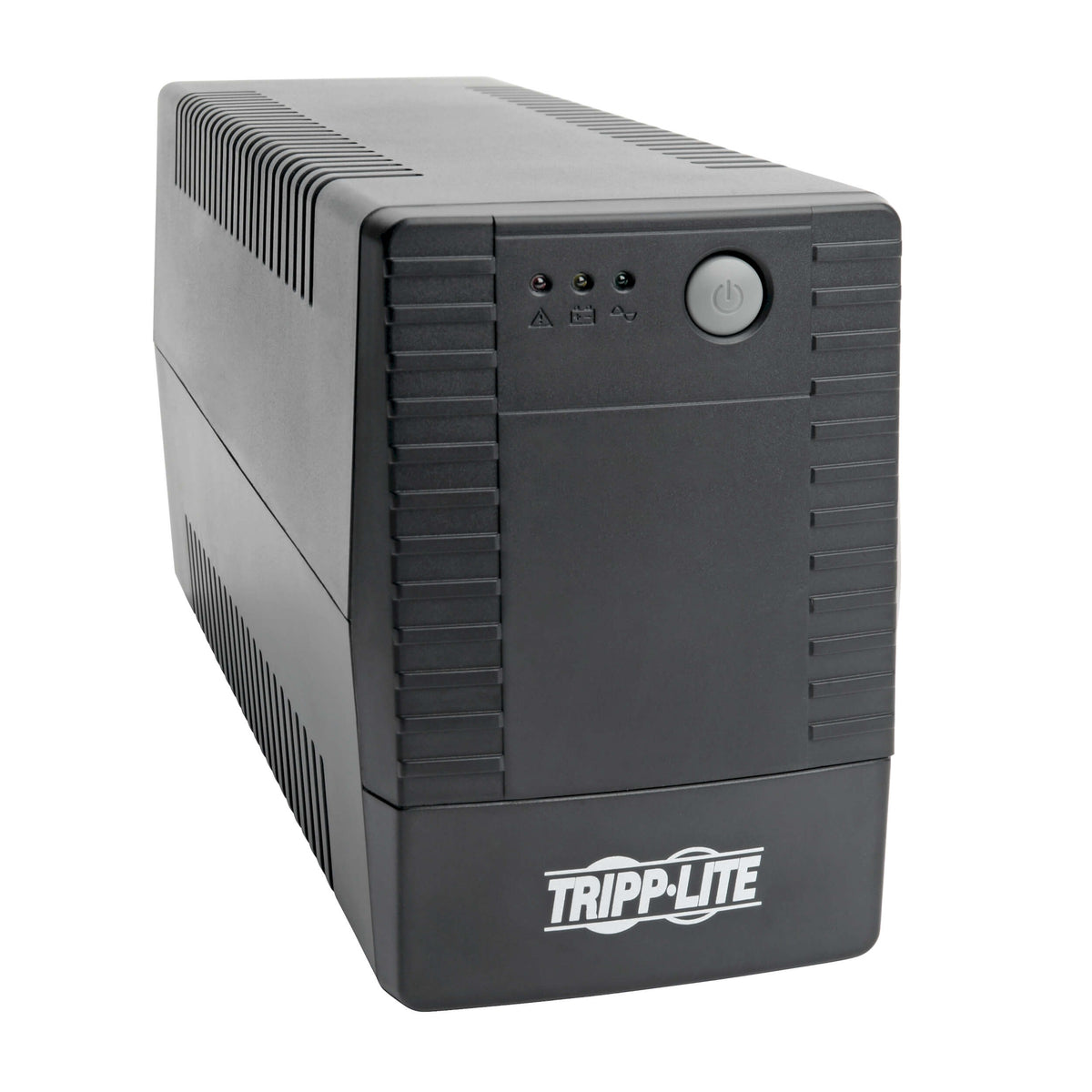

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNIVSX650D
- Input Voltage: 230 V AC
- Form Factor: Tower
- Waveform Type: Pulse-width Modulated Sine Wave
- Backup/Run Time (Half Load): 6 Minute
- Backup/Run Time (Full Load): 1 Minute
- Load Capacity: 650 VA/360 W
Marketing Information:
Protect Your Electronics with Voltage Regulation, Surge Suppression and Battery Backup
Line-interactive UPS offers voltage regulation, surge suppression and battery backup support. It regulates brownouts as low as 170V and overvoltages as high as 280V back to usable levels without using battery power. Both CEE 7/7 Schuko UPS outlets offer battery backup, automatic voltage regulation and AC surge suppression. Three front panel LEDs and audible alarm combine to indicate off/on power status, line power availability, battery mode operation, low battery, overload, battery replacement and fault mode.
Operate Your Connected Equipment During Short-Term Outages
This UPS supports an entry-level PC consuming 60W continuous up to 32 minutes during power failure condition and a 50% load of 120W for 7 minutes. It also enables users to operate connected equipment during short-duration outages without interruption and shut down without data loss during longer outages. All the UPS Schuko outlets receive battery backup.
Two-Year Limited Warranty
This UPS is backed by a two-year limited warranty, ensuring reliability and performance.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | Schuko CEE 7/7 |
| Receptacle Type | Schuko CEE 7/7 |
| Receptacle Detail | 2 x CEE 7/7 (SCHUKO) |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 650 VA |
| Load Capacity (Watt) | 360 W |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 312 J |
| Alarm |
|
| Status Indicators |
3 front panel LEDs:
|
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 1 Minute |
| Backup/Run Time (Half Load) | 6 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation | 6561.68 ft (2000000 mm) |
| Storage Relative Humidity | 90% |
| Thermal Dissipation | 26 BTU/h |
| Height | 5.59" (142 mm) |
| Width | 4.02" (102 mm) |
| Depth | 11.81" (300 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 10.60 lb (4810 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
