In stockTripp Lite
· AVRX750U
Tripp Lite AVRX750U 750 VA / 450 W Tower Line-Interactive UPS
- Power
- 750 VA / 450 W
- Form
- Tower
- Outlets
- 3× IEC 60320 C13, 3× IEC 60320 C13
$357.99
About this UPS

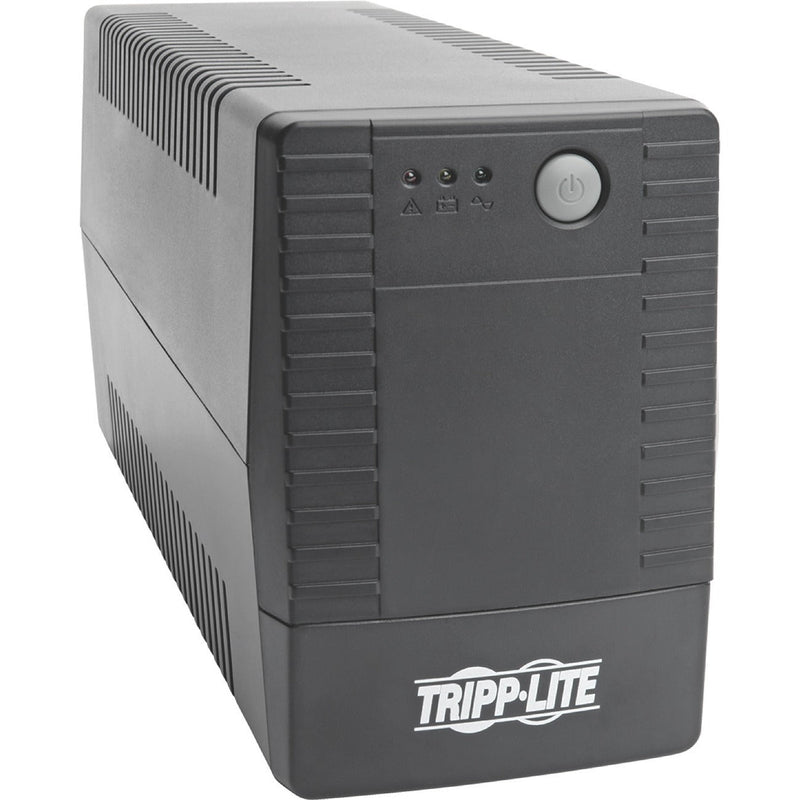

Tripp Lite by Eaton OMNIVSX650D 650VA Tower UPS
| UPC | 0037332221483 |
| Tower - AVR - 8 Hour Recharge - 1 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - Single Phase - 2 x CEE 7/7 (SCHUKO) | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | OMNIVSX650D |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Model: | OMNIVSX650D |
| Product Name: | OMNIVSX650D 650VA Tower UPS |
| Marketing Information: |
Protect Your Electronics with Voltage Regulation, Surge Suppression and Battery Backup Line-interactive UPS offers voltage regulation, surge suppression and battery backup support. It regulates brownouts as low as 170V and overvoltages as high as 280V back to usable levels without using battery power. Both CEE 7/7 Schuko UPS outlets offer battery backup, automatic voltage regulation and AC surge suppression. Three front panel LEDs and audible alarm combine to indicate off/on power status, line power availability, battery mode operation, low battery, overload, battery replacement and fault mode. Operate Your Connected Equipment During Short-Term Outages This UPS supports an entry-level PC consuming 60W continuous up to 32 minutes during power failure condition and a 50% load of 120W for 7 minutes. It also enables users to operate connected equipment during short-duration outages without interruption and shut down without data loss during longer outages. All the UPS Schuko outlets receive battery backup. Two-Year Limited Warranty This UPS is backed by a two-year limited warranty, ensuring reliability and performance. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | Schuko CEE 7/7 |
| Receptacle Type: | Schuko CEE 7/7 |
| Receptacle Detail: | 2 x CEE 7/7 (SCHUKO) |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 650 VA |
| Load Capacity (Watt): | 360 W |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 50 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 312 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
3 front panel LEDs:
|
Battery Information |
| DC System Voltage: | 12 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 12V |
| Backup/Run Time (Full Load): | 1 Minute |
| Backup/Run Time (Half Load): | 6 Minute |
| Typical Battery Recharge Time: | 8 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 6561.68 ft (2000000 mm) |
| Storage Relative Humidity: | 90% |
| Thermal Dissipation: | 26 BTU/h | Physical Characteristics |
| Height: | 5.59" (142 mm) |
| Width: | 4.02" (102 mm) |
| Depth: | 11.81" (300 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 4.81 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Power
VA Rating
650VA
Wattage
360W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
240V
Input Plug
CEE 7/7 (Schuko)
Input Phase
Single-phase
Output
Output Voltage
220V
Receptacles
2× CEE 7/7
Features
Form Factor
Tower
Connectivity
HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
142 × 102 × 300 mm (5.59 × 4.02 × 11.81 in)
Weight
4.81kg
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (180 W)
6 min
Full load (360 W)
1 min
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
Other models in the same range
If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
