Available on orderTripp Lite
· SMX700HG
Tripp Lite SmartPro SMX700HG 700 VA / 450 W Tower Line-Interactive UPS 230 V
- Power
- 700 VA / 450 W
- Form
- Tower
- Outlets
- 6× IEC 60320 C13
$1,312.99
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: OMNIX350HG
- Input Voltage: 220 V AC
- Form Factor: Tower
- Product Family: OmniSmart
- Backup/Run Time (Half Load): 37 Minute
- Backup/Run Time (Full Load): 15.50 Minute
- Load Capacity: 350 VA/225 W
Marketing Information:

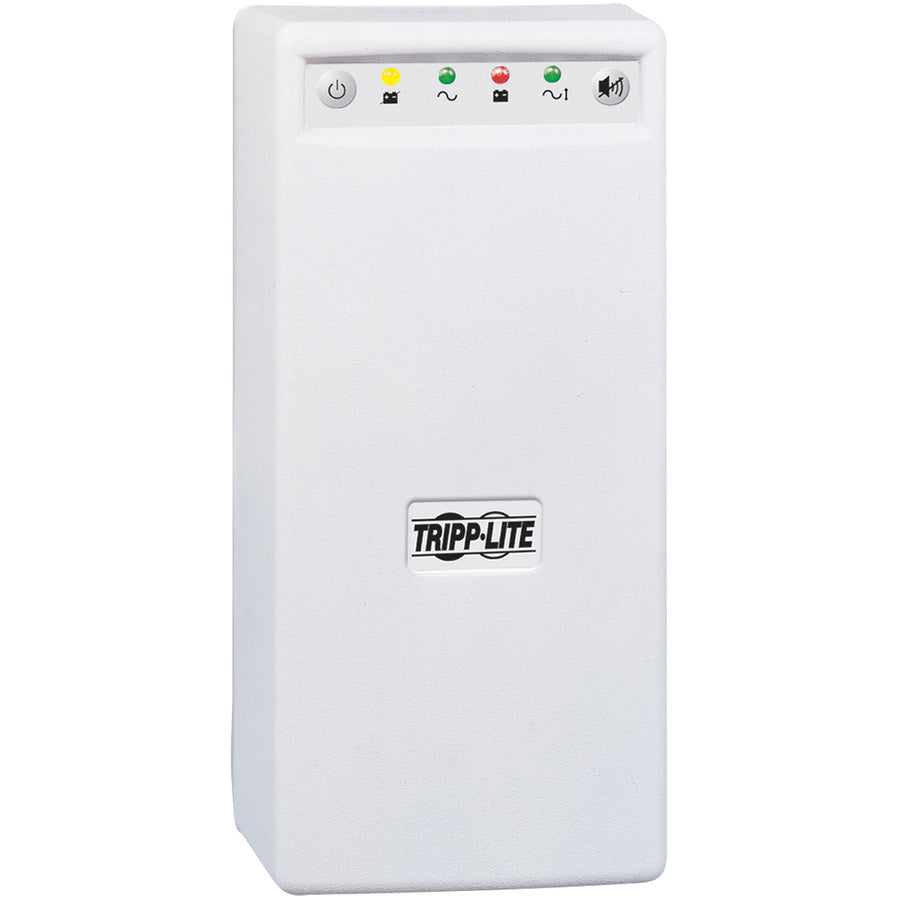

Tripp Lite's OMNIX350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. IEC320 plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise. Tested to CE/IEC 60601-1 as medical electrical equipment. 350VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 159V back to normal 230V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in USB communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Detail | 6 |
| Transfer Time | 5 ms |
| Load Capacity (VA) | 350 VA |
| Load Capacity (Watt) | 225 W |
| Input Voltage | 220 V AC |
| Input Current | 1.80 A |
| Output Voltage | 230 V AC |
| USB | Yes |
| Backup/Run Time (Full Load) | 15.50 Minute |
| Backup/Run Time (Half Load) | 37 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 7.20 Hour |
| Hot Swappable | Yes |
| Height | 10.60" (269.24 mm) |
| Width | 5.20" (132.08 mm) |
| Depth | 7.40" (187.96 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 25.40 lb (11521.25 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | Tested to CE/ IEC 60601-1 (Series AGOM6832), Class B (emissions) |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
350VA
Wattage
225W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C14
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
6× IEC 60320 C13
Features
Form Factor
Tower
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
269 × 132 × 188 mm (10.60 × 5.20 × 7.40 in)
Weight
11.52kg
Certifications
IEC 60601-1
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (112 W)
37 min
Full load (225 W)
16 min
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
