Vertiv Liebert PSI5 PSI5-1100RT120 1100 VA / 990 W Rack/Tower Line-Interactive UPS
Vertiv Liebert PSI5 PSI5-1100RT120 1100 VA / 990 W Rack/Tower Line-Interactive UPS
Available on order
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS

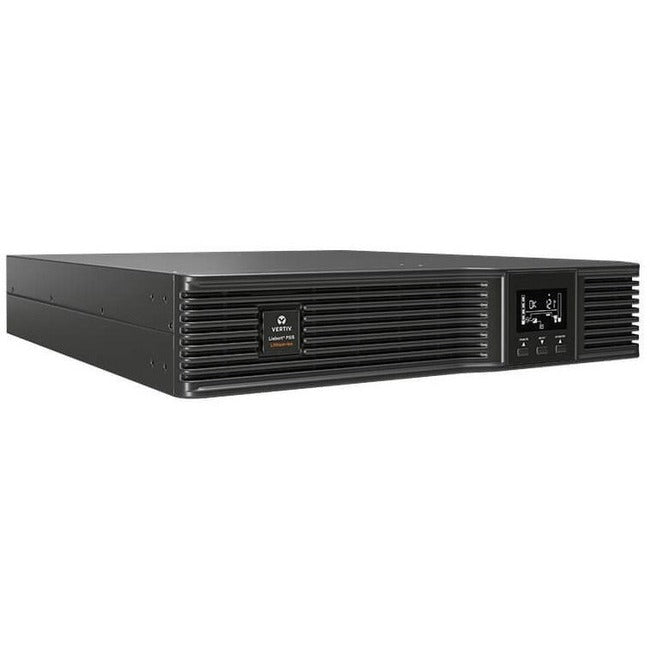

Vertiv Liebert PSI5 UPS - 1100VA Line Interactive Rackmount
| UPC | 0812105028700 |
| 2U Rack/Tower - AVR - 4 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Pure Sine Wave - 6 x NEMA 5-15R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | PSI5-1100RT120 |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | PSI5 |
| Product Name: | PSI5 1100VA/990W, 120VAC, Rack-tower |
| Marketing Information: | The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 1100VA UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15 |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Transfer Time: | 6 ms |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.10 kVA |
| Load Capacity (Watt): | 990 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 75 V AC - 146 V AC |
| Output Voltage: |
|
| Waveform Type: | Pure Sine Wave | Controls/Indicators |
| Status Indicators: | LCD Display | Interfaces/Ports |
| Network (RJ-45): | Yes | Battery Information |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 10 Minute |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 3.50" (88.90 mm) |
| Width: | 17.20" (436.88 mm) |
| Depth: | 16.10" (408.94 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower | Miscellaneous |
| Package Contents: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The PSI5-1100RT120 side by side with UPS from other makers.
-
Compared with PSI5-1100RT120 Spec PSI5-1100RT120 360PQ Capacity 1100 VA / 990 W 1000 VA / 1000 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 12 min Differences
- Lower VA rating: 1000 VA instead of 1100 VA
- Online double-conversion, a step up from line-interactive
$1,137.00 -
Xtreme Power Conversion
Xtreme Power P80-1500 1500 VA / 1350 W Line-Interactive UPS, 120 V
Compared with PSI5-1100RT120 Spec PSI5-1100RT120 Xtreme Power Capacity 1100 VA / 990 W 1500 VA / 1350 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15/20R Runtime, half load 14 min 18 min Differences
- Larger unit: 1350 W instead of 990 W
$1,443.31 -
Xtreme Power Conversion
Xtreme Power P80-1100 1100 VA / 990 W Line-Interactive UPS, 120 V
Compared with PSI5-1100RT120 Spec PSI5-1100RT120 Xtreme Power Capacity 1100 VA / 990 W 1100 VA / 990 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 11 min Differences
- No external battery option
$1,096.42
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.

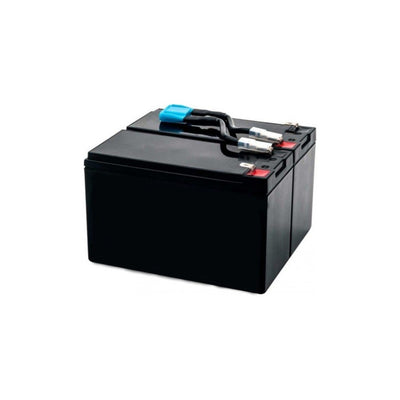

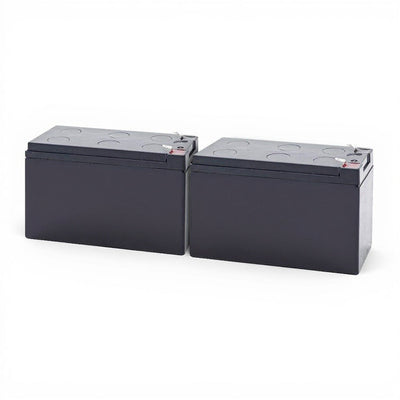

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
