| UPC | 0767041028003 |
| 2U Rack/Tower | Remote Management Capable | With Programmable Outlets | 5-Year Advanced Replacement Warranty | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | PSI5-1500RT120LI |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | PSI5 |

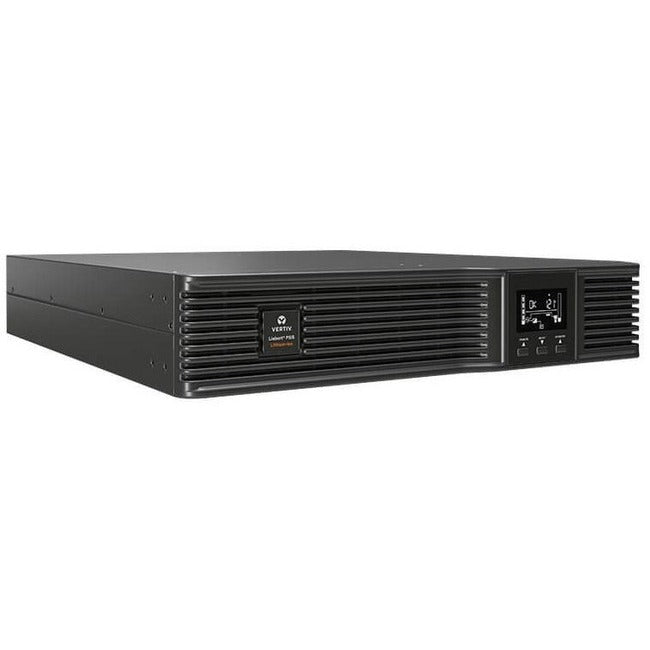

| Product Name: | PSI5-1500RT120LI 1500VA Rack/Tower UPS |
| Marketing Information: |

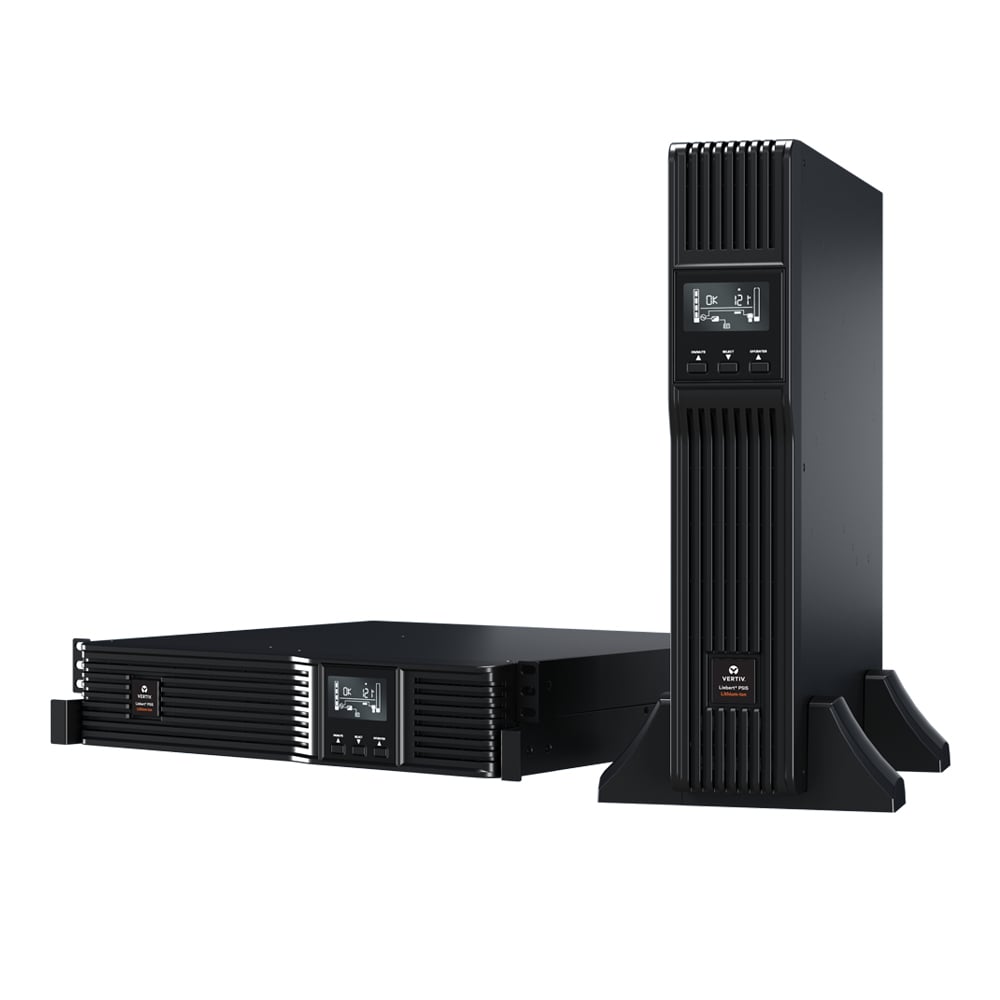

The Vertiv Liebert PSI5 Lithium-Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in edge and distributed IT applications. This 1500VA UPS offers more than double the battery life of a traditional VLRA UPS, and comes with a five-year advanced replacement warranty. This Lithium-Ion battery backup also includes automatic voltage regulation (AVR) technology to further extend battery life and provides premium protection from power disturbances. This line interactive UPS system provides reliable protection and pure sine wave output on battery for servers and networking equipment. With up to 17.7 minutes of runtime at half load and 7.5 minutes at full load, this reliable UPS system provides plenty of runtime on battery during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations. It allows remote management and environmental monitoring with additional communication card and sensors. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Dataline Protection: |
|
| Cord Length: | 10 ft |
| Transfer Time: | 4 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.35 kW |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 75 V AC - 146 V AC |
| Output Voltage: | 120 V AC |
| Waveform Type: | Pure Sine Wave |
| Circuit Breaker: | Yes | Interfaces/Ports |
| Serial Port: | No |
| VGA: | No |
| Modem (RJ-11): | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes |
| EPO Port: | Yes | Battery Information |
| Battery Chemistry: | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load): | 8 Minute |
| Backup/Run Time (Half Load): | 18 Minute |
| Battery Life: | 10 Year |
| Typical Battery Recharge Time: | 2 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.40" (86.36 mm) |
| Width: | 17.20" (436.88 mm) |
| Depth: | 16.10" (408.94 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 12.84 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | Power Insight 2.2 |
| Energy Star: | No |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 5 Year |
