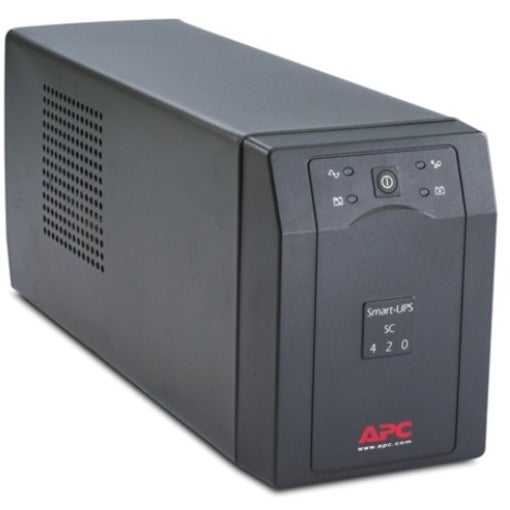

About this UPS
- Brand: APC by Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SC420I
- Input Voltage: 220 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 320-C14
- Product Family: Smart-UPS SC
- Backup/Run Time (Half Load): 13.50 Minute
- Backup/Run Time (Full Load): 5.50 Minute
- Load Capacity: 420 VA/260 W
Marketing Information:
APC Smart-UPS protects your data by supplying reliable, network-grade power in Tower form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). The Smart-UPS SC is the UPS to start your business with.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-45 |
| Load Capacity | 420 VA/260 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Stepped Sine Wave |
| Surge Energy Rating | 320 J |
| Circuit Breaker | Yes |
| Alarm |
|
| Status Indicators |
|
| Serial Port | Yes |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 113 °F (45 °C) |
| Thermal Dissipation | 50 BTU/h |
| Product Color | Gray |
| Height | 7" (177.80 mm) |
| Width | 5" (127 mm) |
| Depth | 15" (381 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 9.07 kg |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
