| UPC | 0731304222712 |
| 1U Rack-mountable - 5.90 Minute Stand-by - 220 V AC Input - 230 V AC Output - Stepped Sine Wave - Serial Port - 4 x IEC 60320 C13, 2 - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SC450RMI1U |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SC |

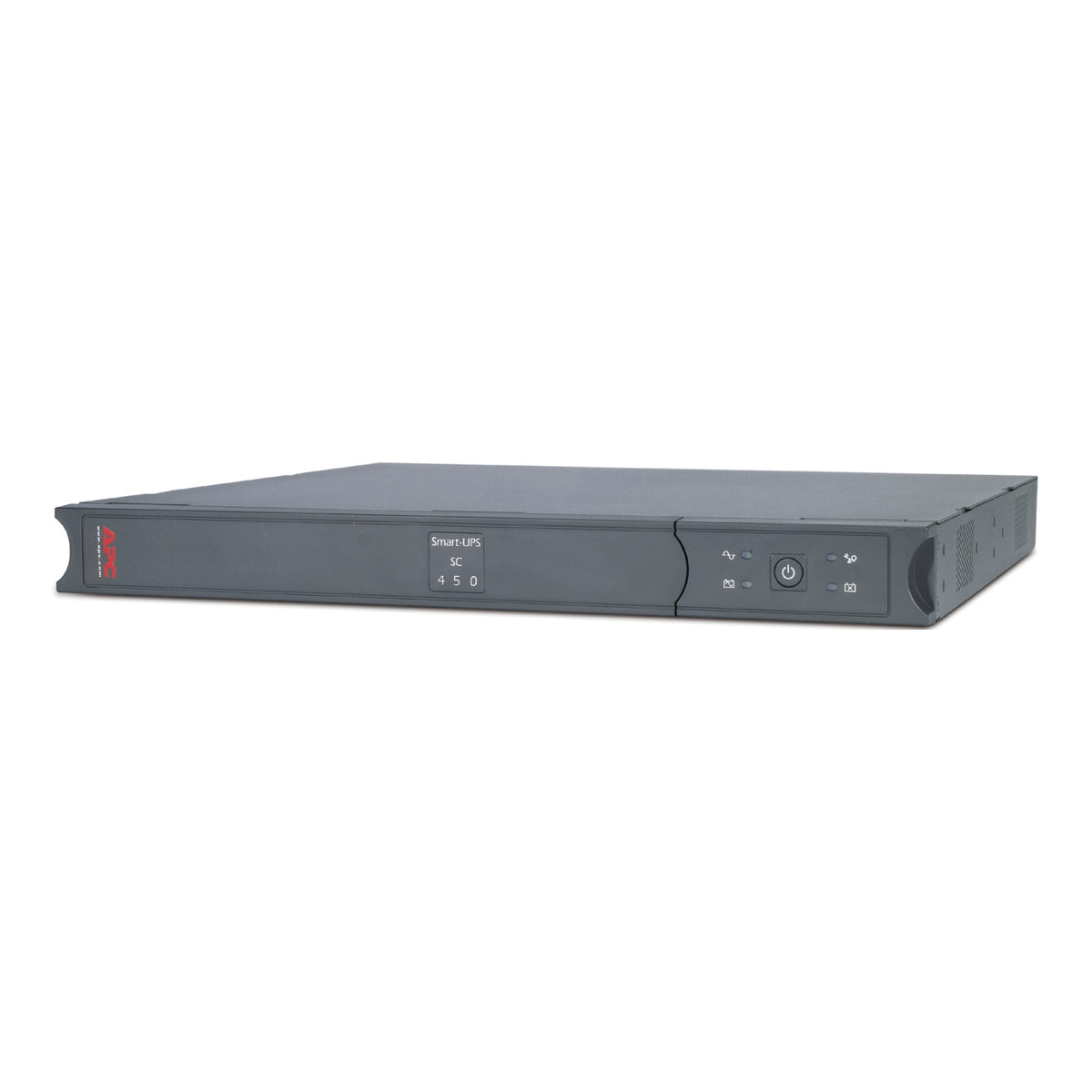

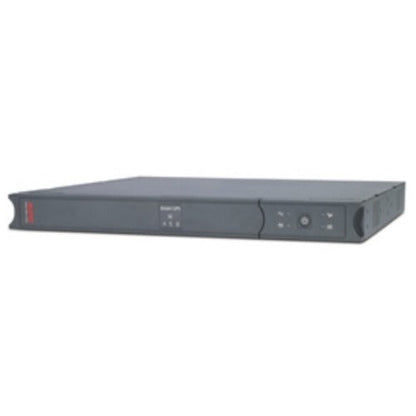

| Product Name: | Smart-UPS SC 450VA Rackmount/Tower |
| Marketing Information: | Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 |
| Dataline Protection: |
|
| Emergency Power OFF: | Optional | Power Description |
| Load Capacity (VA): | 450 VA |
| Load Capacity (Watt): | 280 W |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Stepped Sine Wave |
| Surge Energy Rating: | 320 J | Management |
| Alarm: |
|
| Battery Management: | Intelligent battery management | Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Serial Port: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5.90 Minute |
| Backup/Run Time (Half Load): | 19.40 Minute |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 113°F (45°C) |
| Sound Emission (A-Weighted): | 38 dB(A) |
| Thermal Dissipation: | 38 BTU/h | Physical Characteristics |
| Color Family: | Gray |
| Product Color: | Gray |
| Height: | 1.72" (43.69 mm) |
| Width: | 17" (431.80 mm) |
| Depth: | 15.08" (383.03 mm) |
| Rack Height: | 1U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 10.16 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
