About this UPS

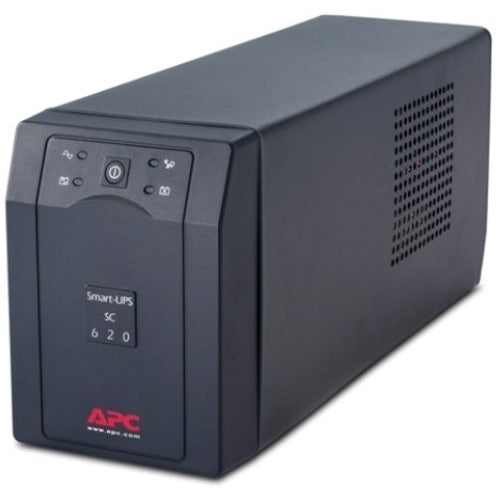

APC Smart-UPS SC 620VA
| UPC | 0731304222637 |
| 620VA/390W - 5.5 Minute Full Load - 1 x IEC 320-C13, 3 x IEC 320-C13, 2 | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SC620I |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SC |
| Product Name: | Smart-UPS SC 620VA |
| Marketing Information: | The economical UPS to start your business with, is Smart-UPS SC, the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 6 |
| Dataline Protection: | RJ-45 | Power Description |
| Load Capacity (VA): | 620 VA |
| Load Capacity (Watt): | 390 W |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Stepped Sine Wave |
| Surge Energy Rating: | 320 J | Management |
| Alarm: |
|
| Battery Management: | Intelligent Battery Management | Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Serial Port: | Yes | Battery Information |
| Battery Characteristics: | Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 15.70 Minute |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 113 °F (45 °C) |
| Thermal Dissipation: | 70 BTU/h | Physical Characteristics |
| Color Family: | Gray |
| Product Color: | Gray |
| Height: | 7" (177.80 mm) |
| Width: | 5" (127 mm) |
| Depth: | 15" (381 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 12.25 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Environmentally Friendly: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
