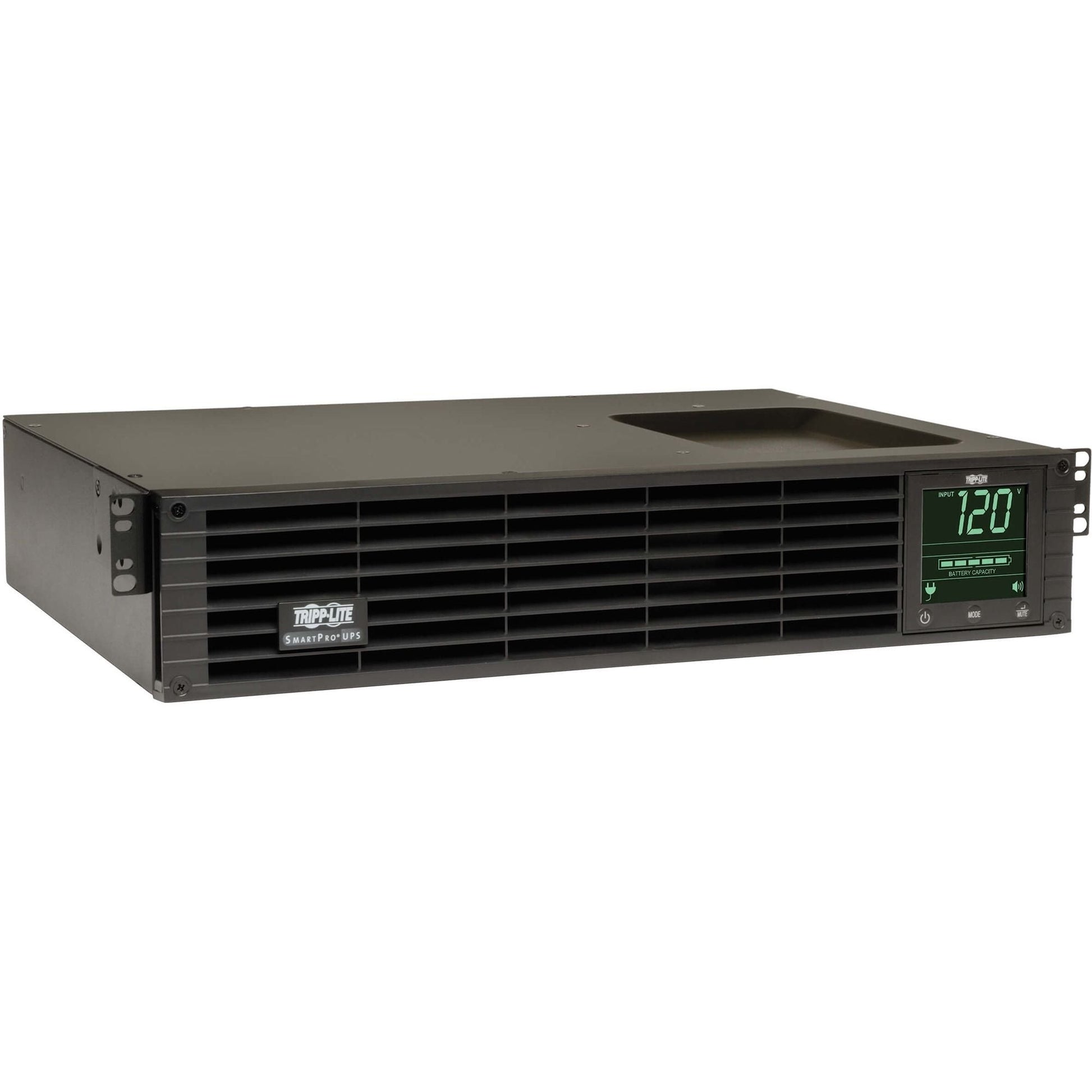

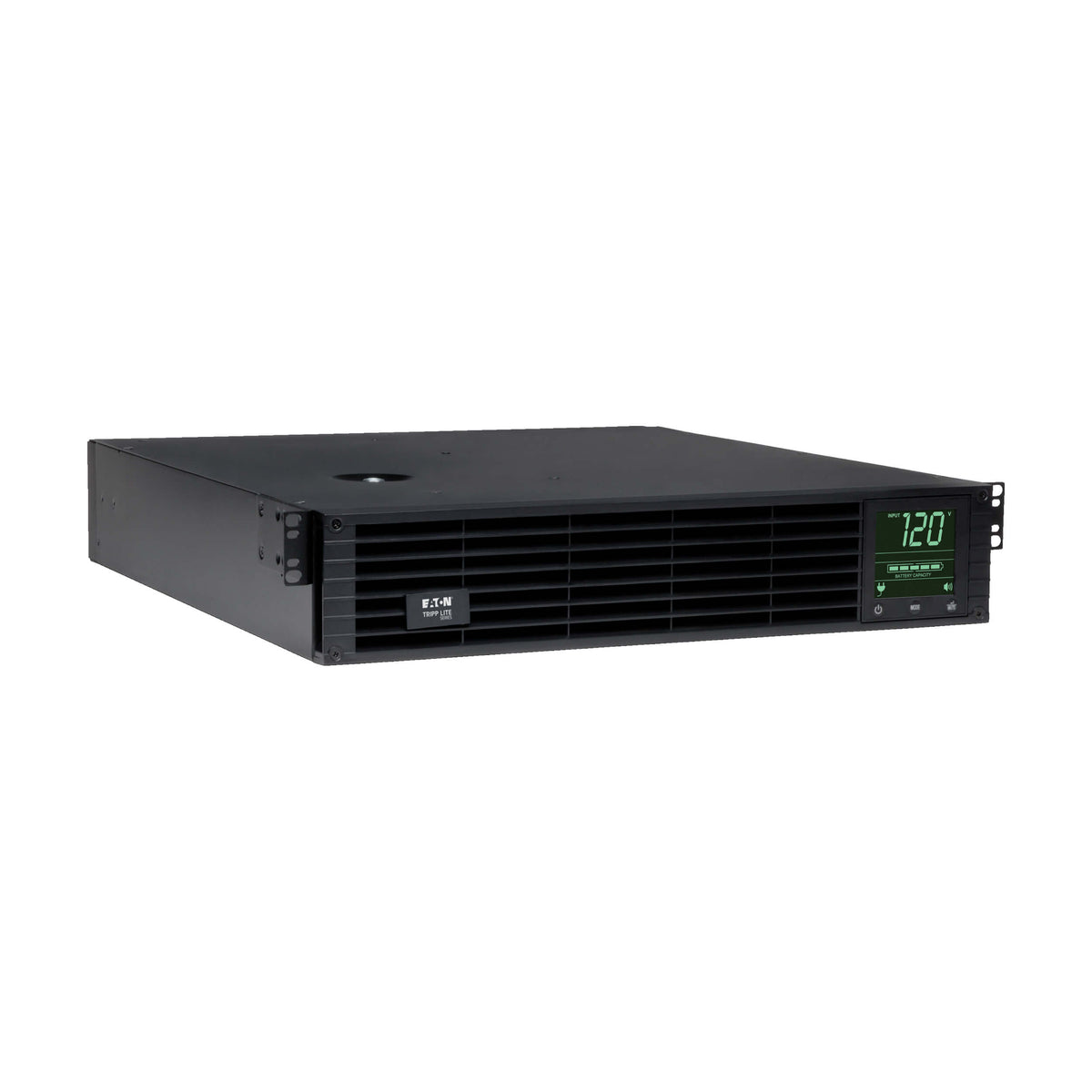

Tripp Lite SM2200RMXL2UP 2200 VA / 1920 W Rack Line-Interactive UPS 2U
Tripp Lite SM2200RMXL2UP 2200 VA / 1920 W Rack Line-Interactive UPS 2U
Regular price
$2,521.99 CAD
Regular price
Sale price
$2,521.99 CAD
Available on order
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SM2200RMXL2UP
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-20P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 13 Minute
- Backup/Run Time (Full Load): 4.50 Minute
- Load Capacity: 2.20 kVA/1.92 kW

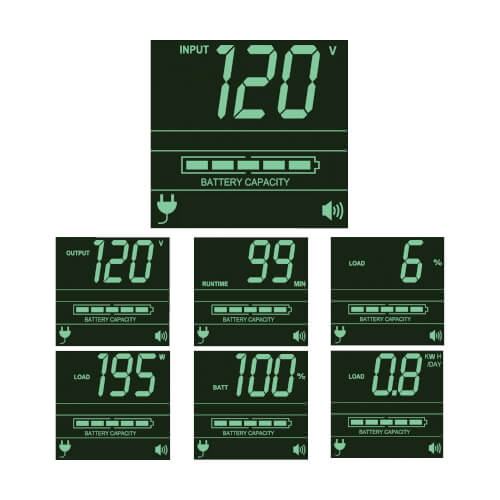

Marketing Information: Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 5 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Input Current | 16 A |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 64 lb (29029.91 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
Power
VA Rating
2200VA
Wattage
1920W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-20P (T-slot 20A)
Input Phase
Single-phase
Output
Output Voltage
120 VAC
Receptacles
4× NEMA 5-15R4× NEMA 5-15/20R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
89 × 444 × 483 mm (3.50 × 17.50 × 19.00 in)
Weight
29.03kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (960 W)
12 min
Full load (1920 W)
4.5 min

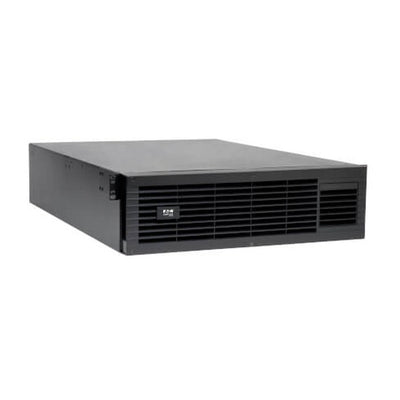

Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The SM2200RMXL2UP side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-2200 2200 VA / 2000 W Line-Interactive UPS, 120 V
Compared with SM2200RMXL2UP Spec SM2200RMXL2UP Xtreme Power Capacity 2200 VA / 1920 W 2200 VA / 2000 W Topology Line-Interactive Line-Interactive Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R 8 × NEMA 5-15/20R Runtime, half load 12 min 12 min Same class on every point compared.
$2,137.53 -
Xtreme Power Conversion
Xtreme Power P91-2000 2000 VA / 1930 W Online UPS, 120 V
Compared with SM2200RMXL2UP Spec SM2200RMXL2UP Xtreme Power Capacity 2200 VA / 1920 W 2000 VA / 1930 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R 8 × NEMA 5-15/20R Runtime, half load 12 min 10 min Differences
- Lower VA rating: 2000 VA instead of 2200 VA
- Online double-conversion, a step up from line-interactive
$2,399.99 -
Compared with SM2200RMXL2UP Spec SM2200RMXL2UP 360PQ Capacity 2200 VA / 1920 W 2000 VA / 2000 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R 4 × NEMA 5-15R, 4 × NEMA 5-20R Runtime, half load 12 min 12 min Differences
- Lower VA rating: 2000 VA instead of 2200 VA
- Online double-conversion, a step up from line-interactive
$1,615.50
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
