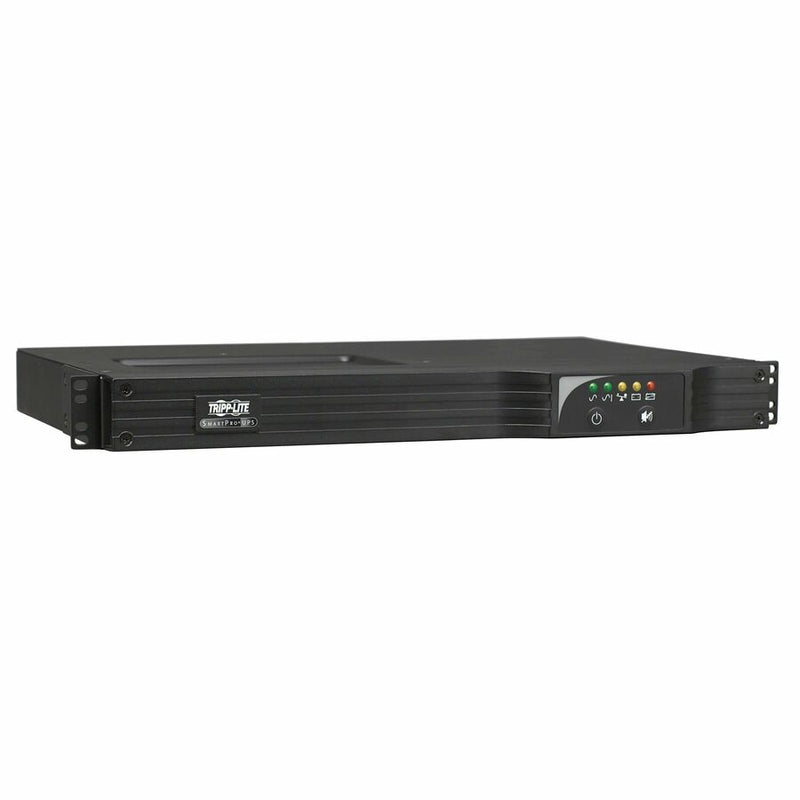

Tripp Lite SmartPro SMART1000RM1UN 1000 VA / 800 W Rack Line-Interactive UPS
Tripp Lite SmartPro SMART1000RM1UN 1000 VA / 800 W Rack Line-Interactive UPS
Regular price
$2,183.99 CAD
Regular price
Sale price
$2,183.99 CAD
In stock
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART1000RM1UN
- Input Voltage: 120 V AC
- Form Factor: Rack-mountable
- Rack Height: 1U
- Product Family: SmartPro
- Backup/Run Time (Full Load): 4 Minute
- Load Capacity: 1 kVA/800 W
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload and low battery
- 6 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 450-joule surge suppression rating
- Supports half load up to 14 min. and full load up to 4 min.
- Internal batteries designed for hot-swap field replacement
- Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, and CLI.
- Optional E2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
- Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)
- 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-147V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- Front-panel LEDs signal power, voltage correction, load level and battery charge state
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software (available via free download at www.tripplite.com/poweralert)
- EPO port supports emergency shutdown in large facilities
- Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
- Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
- Compatible with vertical mount cabinets
Marketing Information:
Protects Mission-Critical Rack-Mounted Equipment
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
LED Indicators
Communications Ports
Versatile Installation Options
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Backup/Run Time (Full Load) | 4 Minute |
| Height | 1.70" (43.18 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.80" (426.72 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 32 lb (14514.96 g) |
| Package Contents |
|
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
Power
VA Rating
1000VA
Wattage
800W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Rackmount 1U
Rack Units
1U
Connectivity
USBSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
Yes
Extended Runtime Capable
No
Condition
New
Dimensions
43 × 444 × 427 mm (1.70 × 17.50 × 16.80 in)
Weight
14.51kg
Certifications
CSA (Canada)NOM (Mexico)UL 1778
Manufacturer Warranty
3 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (400 W)
14 min
Full load (800 W)
4 min
Compare with alternatives
The SMART1000RM1UN side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V
Compared with SMART1000RM1UN Spec SMART1000RM1UN Xtreme Power Capacity 1000 VA / 800 W 1000 VA / 800 W Topology Line-Interactive Online Double-Conversion Form Rackmount 1U, 1U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 3 × NEMA 5-15R Runtime, half load 14 min 20 min Differences
- 3 battery-backed outlets instead of 6
- Network card not included
- Online double-conversion, a step up from line-interactive
$1,390.17 -
Xtreme Power Conversion
Xtreme Power J90-1KLiD 1000 VA / 900 W Lithium-Ion UPS, 120 V
Compared with SMART1000RM1UN Spec SMART1000RM1UN Xtreme Power Capacity 1000 VA / 800 W 1000 VA / 900 W Topology Line-Interactive Online Double-Conversion Form Rackmount 1U, 1U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 4 × NEMA 5-15R Runtime, half load 14 min Not stated Differences
- 4 battery-backed outlets instead of 6
- Network card not included
- Online double-conversion, a step up from line-interactive
$2,970.45 -
Compared with SMART1000RM1UN Spec SMART1000RM1UN Delta Capacity 1000 VA / 800 W 1000 VA / 900 W Topology Line-Interactive Online Double-Conversion Form Rackmount 1U, 1U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 14 min 10 min Differences
- Takes 2U of rack space instead of 1U
- Network card not included
- Online double-conversion, a step up from line-interactive
$1,777.99
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
