Tripp Lite SmartPro SMART1000RT1U 1000 VA / 770 W Rack/Tower UPS

Tripp Lite SmartPro SMART1000RT1U 1000 VA / 770 W Rack/Tower UPS

Discontinued by the manufacturerManufacturer’s current model: SMART1000RM1U. This listing is the earlier model.
$1,951.00 CAD
$1,951.00 CAD
Sale Sold out

Available on order

Shipping calculated at checkout.

Available on order

Request a configured quoteCheck this UPS for your load

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon to Fri

Works with this UPS
Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAATripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA$630.99
View details ↓Bundle & quote in the sizing tool →
View full details
Product details

About this UPS

Tripp Lite by Eaton SmartPro SMART1000RT1U 1000VA Rack/Tower UPS

UPC 0037332239327
1U Rack/Tower - AVR - 6 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - 5 x NEMA 5-15R
General Information
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SMART1000RT1U
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Line: SmartPro
Product Model: SMART1000RT1U
Product Name: SmartPro SMART1000RT1U 1000VA Rack/Tower UPS
Marketing Information:

1000VA/770W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

This SmartPro ® line-interactive UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The thin, compact SMART1000RT1U is ideal protection for servers, switches, phone systems or Pro AV setups in your small-to-mid-size network closet or computer room where you have a rack with unusual space requirements.

Reliable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (385W) and three minutes at full load (770W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout.

Automatically Turns Back On After Power Is Restored

Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.

Optional WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control

The optional WEBCARDLX (sold separately) with the latest version of PowerAlert ® Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.

NEMA 5-15R Outlets Protect Your Connected Components

Five 5-15R outlets in two separate load banks provide connected equipment with pure sine wave AC output during blackouts, overvoltages and severe brownout conditions. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1000RT1U maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Transfer Time: 8 ms
Phase: Single Phase
Application/Usage:
  • Server
  • Switch
  • Telephone System
  • Network Closet
  • Computer Room
  • IT Rack
Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 770 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 540 J
Management
Network Management: RS-232
Alarm:
  • Power Failure
  • Overload
  • Low Battery
Controls/Indicators
Status Indicators:

LED Indicators:

  • AC Output Status (Green)
  • UPS Fault (Solid Red)
  • UPS Abnormal Conditions (Flashing Red).
Interfaces/Ports
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 24 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 6 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 104 °F (40 °C)
Storage Temperature: 5 °F (-15 °C) - 122 °F (50 °C)
Maximum Operating Elevation: 3280 ft (999744 mm)
Sound Emission (A-Weighted): 40 dB(A)
Thermal Dissipation: 307.40 BTU/h
Physical Characteristics
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 21.81" (553.97 mm)
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 14.80 kg
Miscellaneous
Package Contents:
  • SmartPro SMART1000RT1U 1000VA Rack/Tower UPS
  • USB Cable
  • DB9 Cable
  • EPO/ROO Connector
  • Rack-Mounting Hardware
  • Owner's Manual
Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:

3 year with registration.
Specifications

Technical specifications

Power
VA Rating
1000VA
Wattage
770W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120 VAC
Receptacles
5× NEMA 5-15R
Features
Form Factor
Tower/Rack Convertible
Rack Units
1U
Connectivity
USBRS-232 SerialHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
44 × 444 × 554 mm (1.75 × 17.50 × 21.81 in)
Weight
14.8kg
Certifications
CAN/CSA-C22.2 No. 107.3 (Canada)CSA (Canada)ICES (Canada)RETIE (Colombia)UL 1778
Manufacturer Warranty
2 years; 3 years with registration
Manufacturer datasheet (PDF) ↗
Setup checklist: after you receive your UPS →
Backup runtime

How long it'll keep your equipment up.

Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.

Half load (385 W) 10 min
Full load (770 W) 3 min
W
Estimated runtime …min

Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

Discontinued by the manufacturer

Available now

The manufacturer no longer makes the SMART1000RT1U. These UPS are sold today; each card compares one with the discontinued model.

  • Delta

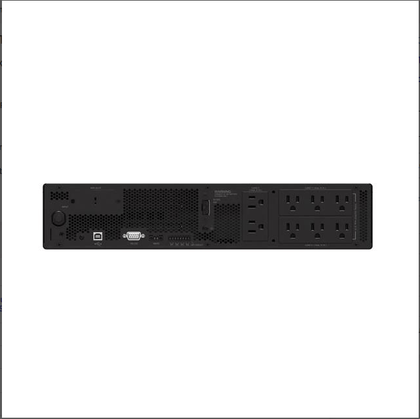

    Delta UPS102R1RT0B0B 1000 VA / 900 W Rack/Tower Online UPS

    SMART1000RT1UDelta
    Capacity 1000 VA / 770 W 1000 VA / 900 W
    Topology Line-Interactive Online Double-Conversion
    Form Tower/Rack Convertible, 1U Tower/Rack Convertible, 2U
    Input plug NEMA 5-15P NEMA 5-15P
    Outlets 5 × NEMA 5-15R 8 × NEMA 5-15R
    Runtime, half load 10 min 10 min

    Differences

    • Takes 2U of rack space instead of 1U
    • Online double-conversion, a step up from line-interactive
    • Larger unit: 900 W instead of 770 W
    $1,777.99
  • Xtreme Power Conversion

    Xtreme Power P80-1100 1100 VA / 990 W Line-Interactive UPS, 120 V

    SMART1000RT1UXtreme Power
    Capacity 1000 VA / 770 W 1100 VA / 990 W
    Topology Line-Interactive Line-Interactive
    Form Tower/Rack Convertible, 1U Tower/Rack Convertible, 2U
    Input plug NEMA 5-15P NEMA 5-15P
    Outlets 5 × NEMA 5-15R 8 × NEMA 5-15R
    Runtime, half load 10 min 11 min

    Differences

    • Takes 2U of rack space instead of 1U
    • Larger unit: 990 W instead of 770 W
    $1,096.42
  • Xtreme Power Conversion

    Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V

    SMART1000RT1UXtreme Power
    Capacity 1000 VA / 770 W 1000 VA / 800 W
    Topology Line-Interactive Online Double-Conversion
    Form Tower/Rack Convertible, 1U Rackmount 1U, 1U
    Input plug NEMA 5-15P NEMA 5-15P
    Outlets 5 × NEMA 5-15R 3 × NEMA 5-15R
    Runtime, half load 10 min 20 min

    Differences

    • Rack mount only, no tower stand
    • 3 battery-backed outlets instead of 5
    • Online double-conversion, a step up from line-interactive
    $1,390.17

Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

Add-ons

Works with this UPS

Only accessories the manufacturer lists for this model.

Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA
Tripp Lite
Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA
Network card for this UPS’s slot
WEBCARDLXE
$630.99
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Frequently asked

Questions before you buy

How do I know this UPS will run my equipment?

Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.

What's covered by the warranty, and how long does it last?

New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.

Can I extend runtime beyond what's shown above?

Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
