Tripp Lite by Eaton SMART1500LCDTXL 1440VA Tower UPS - SMART1500LCDTXL
Tripp Lite by Eaton SMART1500LCDTXL 1440VA Tower UPS - SMART1500LCDTXL
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS

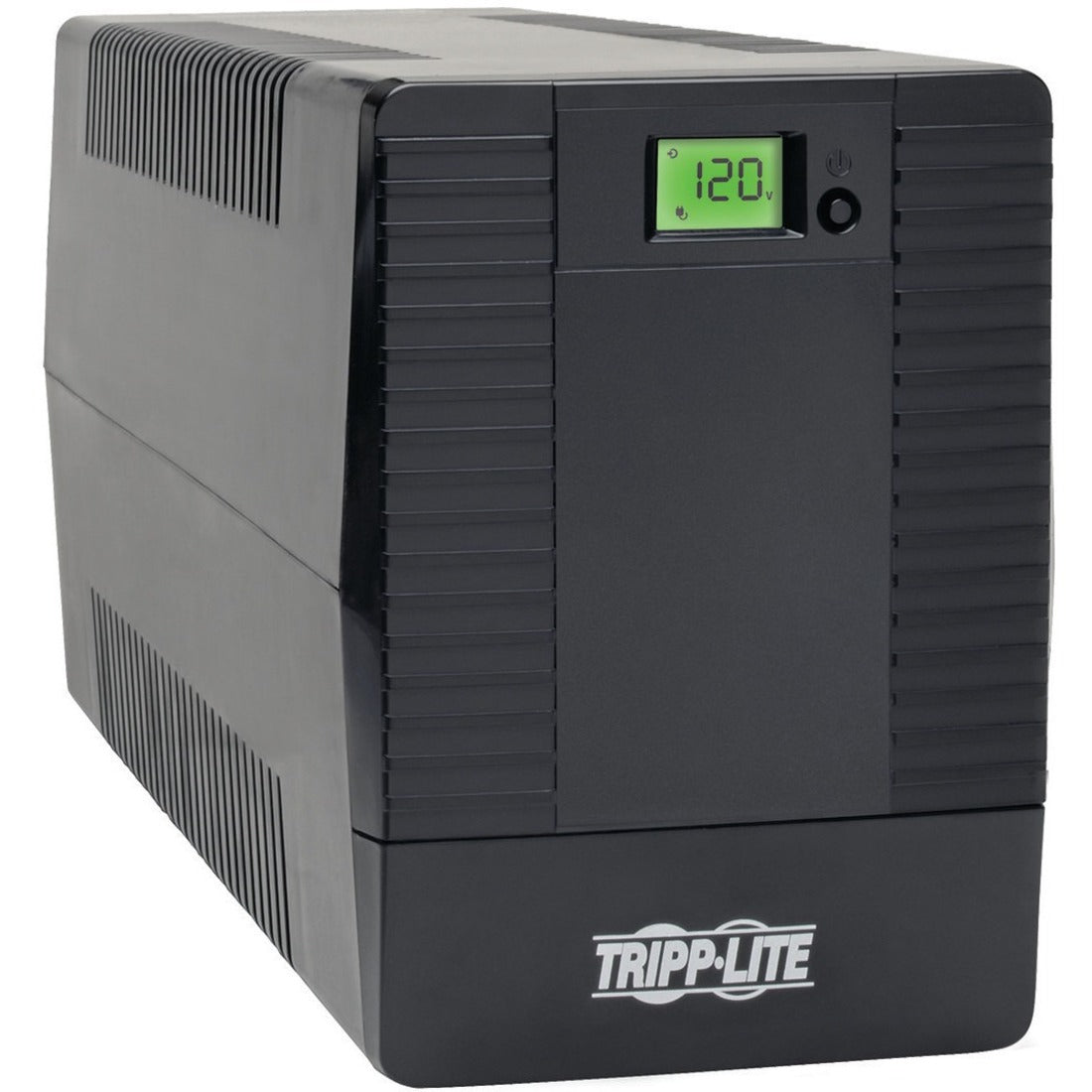

Tripp Lite by Eaton SMART1500LCDTXL 1440VA Tower UPS
| UPC | 0037332221582 |
| Tower - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC, 115 V AC, 110 V AC Output - Single Phase - Serial Port - 8 x NEMA 5-15R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART1500LCDTXL |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMART1500LCDTXL |
| Product Name: | SMART1500LCDTXL 1440VA Tower UPS |
| Marketing Information: |
1440VA/1200W/120V Battery Backup for PC Networks, Security Systems or Digital Signage The SmartPro ® line-interactive SMART1500LCDTXL UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for small networks, wiring closets, security systems, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 90 minutes (using internal batteries only). Supports an External Battery Pack for Extended Runtime In addition to the replaceable internal battery, the SMART1500LCDTXL supports connection of one optional BP24V15RT2U external battery pack (sold separately). During normal operation, incoming utility power keeps the internal and external batteries fully charged, so backup power will always be available. 8 NEMA 5-15R Outlets Protect Your Connected Components Six 5-15R outlets provide battery backup, 316 joules of surge protection and voltage regulation for your computer, monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1500LCDTXL can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Combats Line Noise That Can Harm Equipment EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The SMART1500LCDTXL filters out this disruptive line noise on the AC line, so that it won't affect your equipment. Designed for High Efficiency to Help You Save Money and Protect the Environment A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs. Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7 The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS and site power information when the UPS is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Number of Surge-only Outlets: | 2 |
| Dataline Protection: |
|
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Greater than 95% efficiency - GREEN UPS |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.44 kVA |
| Load Capacity (Watt): | 1.20 kW |
| Input Voltage: | 120 V AC |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pulse-width Modulated Sine Wave |
| Surge Energy Rating: | 316 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
Front Panel LCD Display:
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 12 V DC |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 8 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Thermal Dissipation: | 175 BTU/h | Physical Characteristics |
| Height: | 7.52" (191 mm) |
| Width: | 5.51" (140 mm) |
| Depth: | 15" (381 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 14.61 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | Vietnam |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
