Tripp Lite

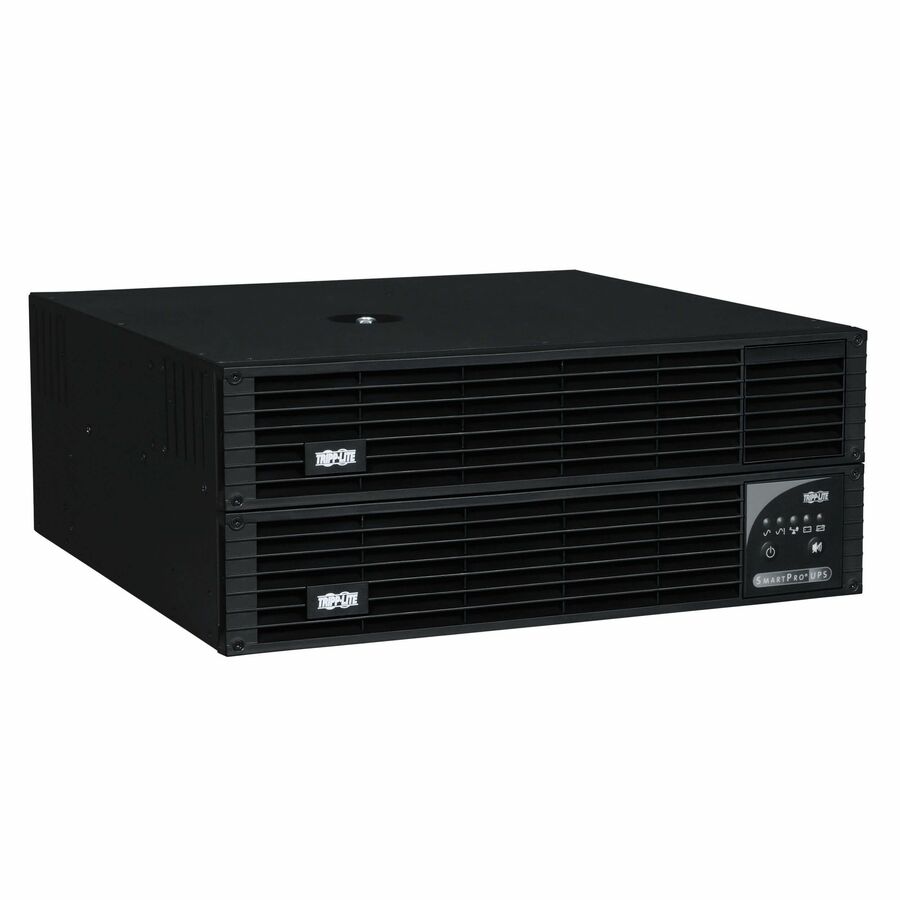

Tripp Lite SmartPro SMART2200CRMXL 2200VA Rack-mountable UPS - SMART2200CRMXL - Line-interactive UPS, 110 V AC, Rack/Tower, 4U, 120 V AC, NEMA 5-20P, SmartPro, 28 Minute, 11 Minute, 2.20 kVA/1.90 kW
Tripp Lite SmartPro SMART2200CRMXL 2200VA Rack-mountable UPS - SMART2200CRMXL - Line-interactive UPS, 110 V AC, Rack/Tower, 4U, 120 V AC, NEMA 5-20P, SmartPro, 28 Minute, 11 Minute, 2.20 kVA/1.90 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART2200CRMXL
- Input Voltage: 110 V AC
- Form Factor: Rack/Tower
- Rack Height: 4U
- Plug/Connector Type: NEMA 5-20P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 28 Minute
- Backup/Run Time (Full Load): 11 Minute
- Load Capacity: 2.20 kVA/1.90 kW
Marketing Information:
Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures. Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations. 97% line power mode efficiency saves operating costs over less efficient UPS types. Runtime is expandable with optional BP48V24-2U (limit 1), BP48V48RT4U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) reduced-depth external battery packs.
SMART2200CRMXL 4U rackmount 2200VA/1900 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Includes NEMA 5-20P input plug, NEMA 5-15R and 5-15/20R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional network management accessory card slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. PowerAlert monitoring software is available via free download. Emergency Power Off (EPO) interface. Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 2-post rackmount accessories included; 2-9USTAND tower stands. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 5.50 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.90 kW |
| Input Voltage | 110 V AC |
| Input Current | 16 A |
| Output Voltage | 120 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 11 Minute |
| Backup/Run Time (Half Load) | 28 Minute |
| Typical Battery Recharge Time | 3.60 Hour |
| Hot Swappable | Yes |
| Height | 7.01" (178.05 mm) |
| Width | 18" (457.20 mm) |
| Depth | 17.25" (438.15 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 100.30 lb (45495.314711 g) |
| Package Contents |
|
| Certifications & Standards | Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class A (EMI) |
| Software Included | PowerAlert Software |
| Recycled | No |
| Country of Origin | China |
| Limited Warranty | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

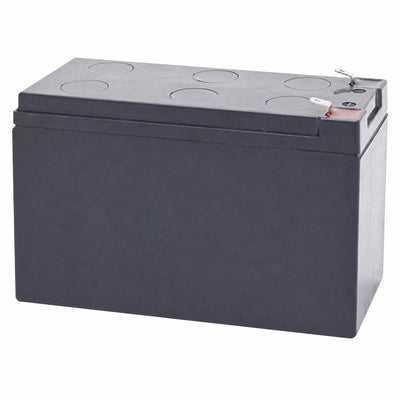

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
