Tripp Lite
Tripp Lite by Eaton SMART 2500XLHG Medical Grade Tower UPS System - SMART2500XLHG - Line-interactive UPS, 120 V AC, Tower, 120 V AC, IEC 60320 C20, SmartPro, 13 Minute, 4.40 Minute, 2.20 kVA/1.92 kW
Tripp Lite by Eaton SMART 2500XLHG Medical Grade Tower UPS System - SMART2500XLHG - Line-interactive UPS, 120 V AC, Tower, 120 V AC, IEC 60320 C20, SmartPro, 13 Minute, 4.40 Minute, 2.20 kVA/1.92 kW
Regular price
$3,745.99 CAD
Regular price
Sale price
$3,745.99 CAD
Quantity
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART2500XLHG
- Input Voltage: 120 V AC
- Form Factor: Tower
- Plug/Connector Type: IEC 60320 C20
- Product Family: SmartPro
- Backup/Run Time (Half Load): 13 Minute
- Backup/Run Time (Full Load): 4.40 Minute
- Load Capacity: 2.20 kVA/1.92 kW

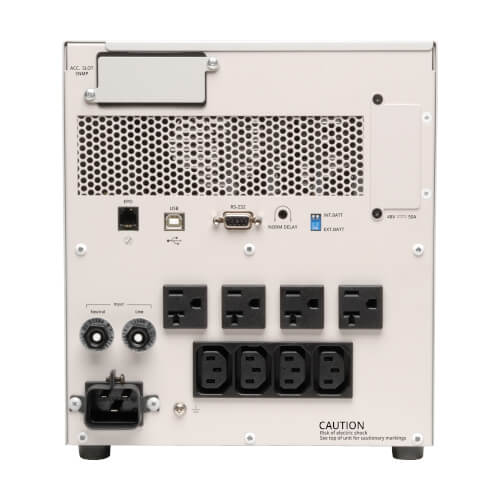

Marketing Information: UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro ® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type |
|
| Receptacle Detail |
|
| Transfer Time | 4 ms |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 4.40 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Height | 9.27" (235.46 mm) |
| Width | 8.90" (226.06 mm) |
| Depth | 19.09" (484.89 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 73.30 lb (33248.32 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
2200VA
Wattage
1920W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
4× IEC 60320 C134× NEMA 5-15
Features
Form Factor
Tower/Rack Convertible
Connectivity
["USB""RS-232 Serial""HTTP/Web Management"]
Extended Runtime Capable
true
Condition
New
Dimensions
235 × 226 × 485 mm (9.27 × 8.90 × 19.09 in)
Weight
33.25kg
Manufacturer Warranty
2 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (960 W)
12.0 min
Full load (1920 W)
4.4 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
