| UPC | 0037332168283 |
| Tower - 4.50 Hour Recharge - 4.40 Minute Stand-by - 120 V AC Input - 120 V AC, 120 V AC Output - Serial Port - USB - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMART2500XLHG |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMART2500XLHG |

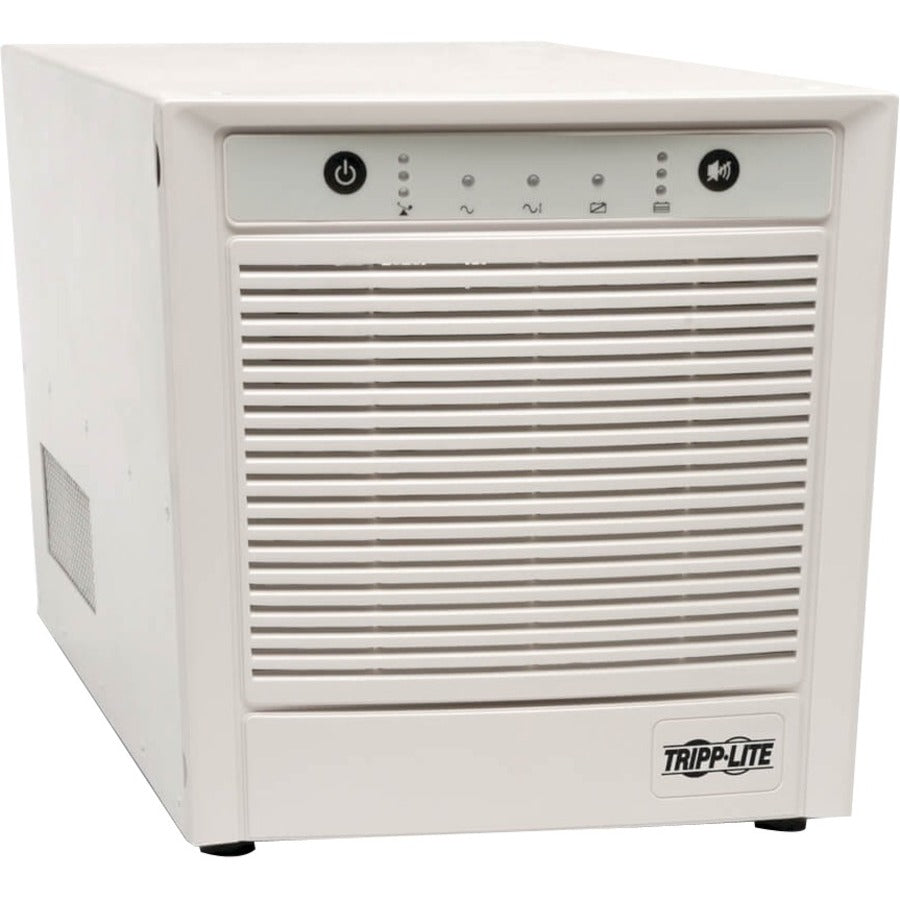

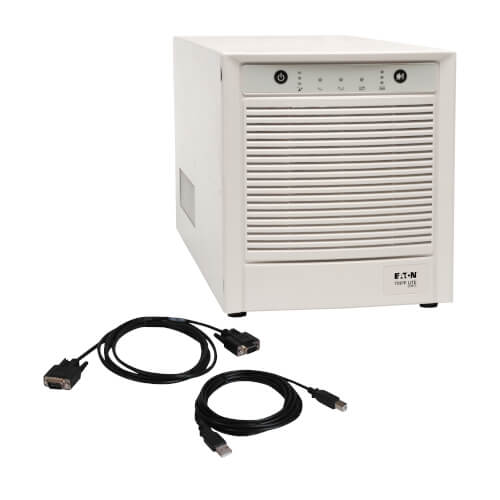

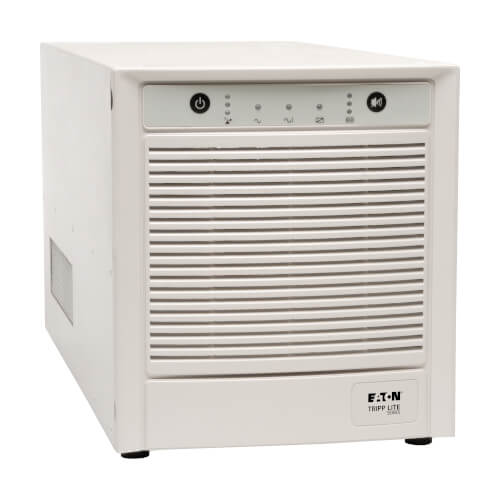

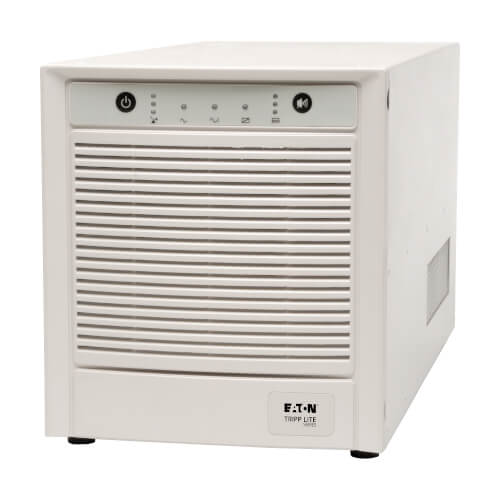

| Product Name: | SMART 2500XLHG Medical Grade Tower UPS System |

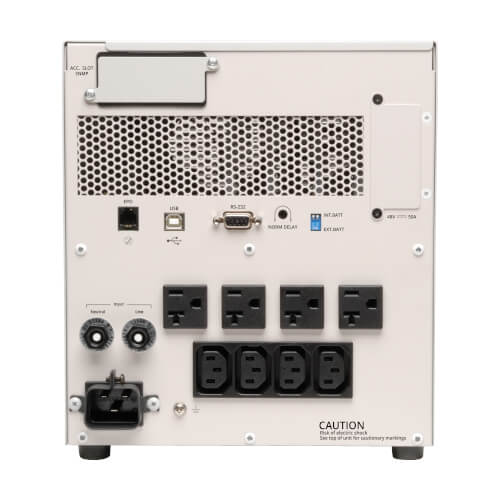

| Marketing Information: | UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 60320 C20 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.92 kW |
| Input Voltage: | 120 V AC |
| Output Voltage: | 120 V AC | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 4.40 Minute |
| Backup/Run Time (Half Load): | 13 Minute |
| Typical Battery Recharge Time: | 4.50 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 9.27" (235.46 mm) |
| Width: | 8.90" (226.06 mm) |
| Depth: | 19.09" (484.89 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 33.25 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
