Tripp Lite SmartPro SMART2600RM2U 2200 VA / 1920 W Rack/Tower UPS

Tripp Lite SmartPro SMART2600RM2U 2200 VA / 1920 W Rack/Tower UPS

Discontinued by the manufacturerManufacturer’s current model: SMART2200RMXL2U. This listing is the earlier model.
$2,552.99 CAD
$2,552.99 CAD
Sale Sold out

Available on order

Shipping calculated at checkout.

Available on order

Request a configured quoteCheck this UPS for your load

Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.

Buying 5 or more? Request volume pricing →

  • Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
  • New in box: manufacturer warranty applies
  • Have a purchase order? Request a quote.

Questions? 438-881-3363 · Mon to Fri

Works with this UPS
Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)$112.99
Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAATripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA$630.99
View details ↓Bundle & quote in the sizing tool →
View full details
Product details

About this UPS

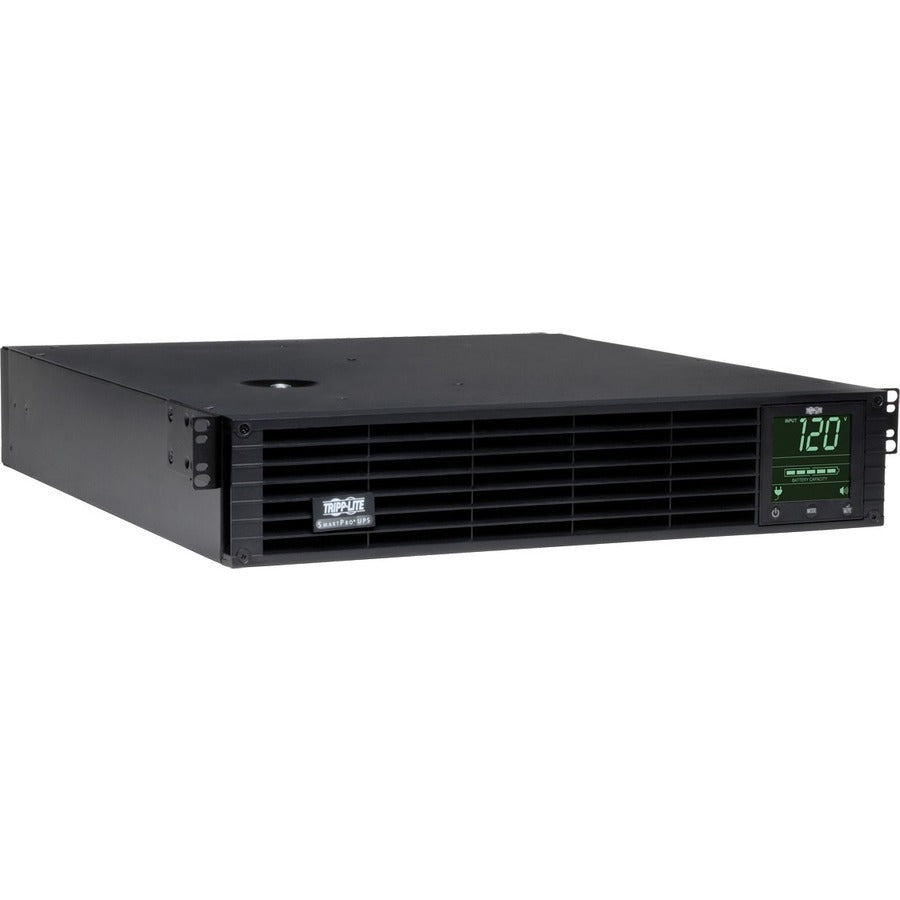

Tripp Lite SmartPro 2600RM2U UPS

UPC 0037332116819
2200VA/1920W - 4.6 Minute Full Load - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-20R
General Information
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: SMART2600RM2U
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Line: SmartPro
Product Model: SMART2600RM2U
Product Name: SmartPro SMART2600RM2U UPS
Marketing Information: Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and installed Network Management Card option, such as Tripp Lite's SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA 5-20P
Receptacle Type:
  • NEMA 5-15R
  • NEMA 5-15/20R
  • NEMA L5-20R
Receptacle Detail:
  • 4 x NEMA 5-15R
  • 4 x NEMA 5-15/20R
  • 1 x NEMA L5-20R
Power Description
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.92 kW
Input Voltage:
  • 110 V AC
  • 115 V AC
  • 120 V AC
Output Voltage: 120 V AC
Battery Information
Backup/Run Time (Full Load): 4.60 Minute
Physical Characteristics
Height: 3.46" (87.88 mm)
Width: 17.32" (439.93 mm)
Depth: 19.46" (494.28 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 29.03 kg
Miscellaneous
Package Contents:
  • SmartPro SMART2600RM2U UPS
  • PowerAlert Software with USB, Serial & EPO cabling
  • 4 x Post Installation kit
  • Owner's Manual
Country of Origin: China
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Specifications

Technical specifications

Power
VA Rating
2200VA
Wattage
1920W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-20P (T-slot 20A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
4× NEMA 5-15R4× NEMA 5-15/20R1× NEMA L5-20R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
88 × 440 × 494 mm (3.46 × 17.32 × 19.46 in)
Weight
29.03kg
Certifications
CSA (Canada)UL 1778
Manufacturer Warranty
3 years
Manufacturer datasheet (PDF) ↗
Setup checklist: after you receive your UPS →
Backup runtime

How long it'll keep your equipment up.

Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.

Half load (960 W) 13 min
Full load (1920 W) 4.6 min

Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →

W
Estimated runtime …min

Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

Discontinued by the manufacturer

Available now

The manufacturer no longer makes the SMART2600RM2U. These UPS are sold today; each card compares one with the discontinued model.

  • Xtreme Power Conversion

    Xtreme Power P80-2200 2200 VA / 2000 W Line-Interactive UPS, 120 V

    SMART2600RM2UXtreme Power
    Capacity 2200 VA / 1920 W 2200 VA / 2000 W
    Topology Line-Interactive Line-Interactive
    Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
    Input plug NEMA 5-20P NEMA 5-20P
    Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R
    Runtime, half load 13 min 12 min

    Differences

    • 8 battery-backed outlets instead of 9
    • No L5-20R outlet
    $2,137.53
  • Xtreme Power Conversion

    Xtreme Power P91-2000 2000 VA / 1930 W Online UPS, 120 V

    SMART2600RM2UXtreme Power
    Capacity 2200 VA / 1920 W 2000 VA / 1930 W
    Topology Line-Interactive Online Double-Conversion
    Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
    Input plug NEMA 5-20P NEMA 5-20P
    Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-20R 8 × NEMA 5-15/20R
    Runtime, half load 13 min 10 min

    Differences

    • 8 battery-backed outlets instead of 9
    • No L5-20R outlet
    • Lower VA rating: 2000 VA instead of 2200 VA
    • Online double-conversion, a step up from line-interactive
    $2,399.99
  • 360PQ

    360PQ Platinum PL-L020-01 2000 VA / 2000 W UPS, 120 V

    SMART2600RM2U360PQ
    Capacity 2200 VA / 1920 W 2000 VA / 2000 W
    Topology Line-Interactive Online Double-Conversion
    Form Rackmount 2U, 2U Tower/Rack Convertible, 2U
    Input plug NEMA 5-20P NEMA 5-20P
    Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15/20R, 1 × NEMA L5-20R 4 × NEMA 5-15R, 4 × NEMA 5-20R
    Runtime, half load 13 min 12 min

    Differences

    • 8 battery-backed outlets instead of 9
    • No L5-20R outlet
    • Lower VA rating: 2000 VA instead of 2200 VA
    • Online double-conversion, a step up from line-interactive
    $1,615.50

Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

Add-ons

Works with this UPS

Only accessories the manufacturer lists for this model.

Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)
Tripp Lite
Tripp Lite Universal 1U Shelf Kit for 4-Post Racks (4POSTRAILKITWM)
Rack rails for this model
4POSTRAILKITWM
$112.99
Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA
Tripp Lite
Tripp Lite Network Management Card WEBCARDLXE for Select UPS Systems, TAA
Network card for this UPS’s slot
WEBCARDLXE
$630.99
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
When the batteries fail

Replacement batteries that fit this exact UPS

A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.

Bookmark this page before you need it.

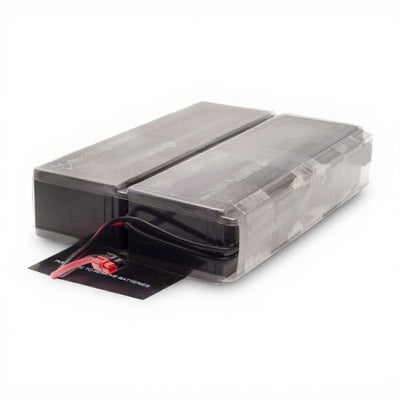

Tripp Lite SMART2600RM2U Battery
Tripp Lite · Compatible replacement
Tripp Lite SMART2600RM2U Battery
Voltage48V
Capacity9.0Ah
$195.49 Shop →
Tripp Lite RBC94-2U Compatible Replacement Battery Kit (48V, 4 x 12V 9Ah)
Tripp Lite · Compatible replacement
Tripp Lite RBC94-2U Compatible Replacement Battery Kit (48V, 4 x 12V 9Ah)
Voltage48V
Capacity9.0Ah
$171.99 Shop →
Frequently asked

Questions before you buy

How do I know this UPS will run my equipment?

Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.

What's covered by the warranty, and how long does it last?

New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.

Can I extend runtime beyond what's shown above?

Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.

Same family

Other models in the same range

If this unit is too small or too big, here are the closest siblings: same topology, same form-factor family.
