Tripp Lite

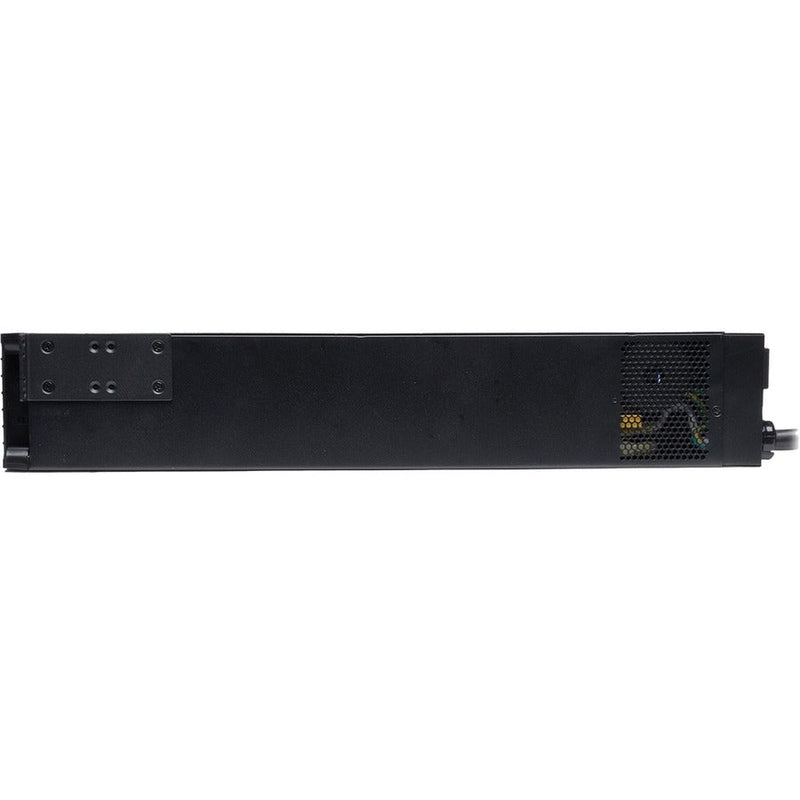

Tripp Lite by Eaton SmartPro SMART3000RM2UL 3000VA Rack-mountable UPS - SMART3000RM2UL - Line-interactive UPS, 120 V AC, Rack-mountable, Pure Sine Wave, 2U, 110 V AC,115 V AC,120 V AC, NEMA L5-30P, SmartPro, 3.50 Minute, 3 kVA/2.25 kW
Tripp Lite by Eaton SmartPro SMART3000RM2UL 3000VA Rack-mountable UPS - SMART3000RM2UL - Line-interactive UPS, 120 V AC, Rack-mountable, Pure Sine Wave, 2U, 110 V AC,115 V AC,120 V AC, NEMA L5-30P, SmartPro, 3.50 Minute, 3 kVA/2.25 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART3000RM2UL
- Input Voltage: 120 V AC
- Form Factor: Rack-mountable
- Waveform Type: Pure Sine Wave
- Rack Height: 2U
- Plug/Connector Type: NEMA L5-30P
- Product Family: SmartPro
- Backup/Run Time (Full Load): 3.50 Minute
- Load Capacity: 3 kVA/2.25 kW
Marketing Information:
Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid Battery
This Tripp Lite SmartPro ® UPS system features a state-of-the-art lithium iron phosphate (LiFePO4) internal battery with longer life, more cycles and faster recharge. It more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100-percent capacity in less than two hours, making the lithium UPS system an ideal backup in case of power outage. The LiFePO4 battery weighs 60-percent less than an equivalent lead acid battery, which reduces the overall UPS weight.
High Efficiency Operation Helps the Environment and Your Cash FlowOperating with a high 98% line-mode efficiency, this 3kVA UPS system can save BTU heat output and energy costs.
Advanced Communications Ports Connect to Any Workstation or ServerUSB and DB9 ports (cables are included) enable data-saving unattended shutdown when used with Tripp Lite's free downloadable PowerAlert ® software. Capabilities include monitoring of equipment load level, self-test data and utility power conditions. The Emergency Power Off (EPO) interface offers options for instantaneous power-off of the UPS system and connected equipment in case of fire or other facility emergency. The SMART3000RM2UL is compatible with Tripp Lite network management cards, such as WEBCARDLX, for detailed monitoring of UPS and site power conditions.
Multi-Function LCD and Audible Alarms Keep You InformedThe front-panel LCD information and configuration screen displays detailed UPS and site power status and operating data, as well as input and output voltage, operating mode, alarm function and additional options. An alarm sounds to warn you of power failure, low battery, overload, UPS fault and remote shutdown conditions.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Transfer Time | 5 ms |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.25 kW |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Waveform Type | Pure Sine Wave |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Typical Battery Recharge Time | 1.70 Hour |
| Hot Swappable | Yes |
| Height | 3.43" (87.12 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 19.46" (494.28 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 50.10 lb (22724.98 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 5 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
