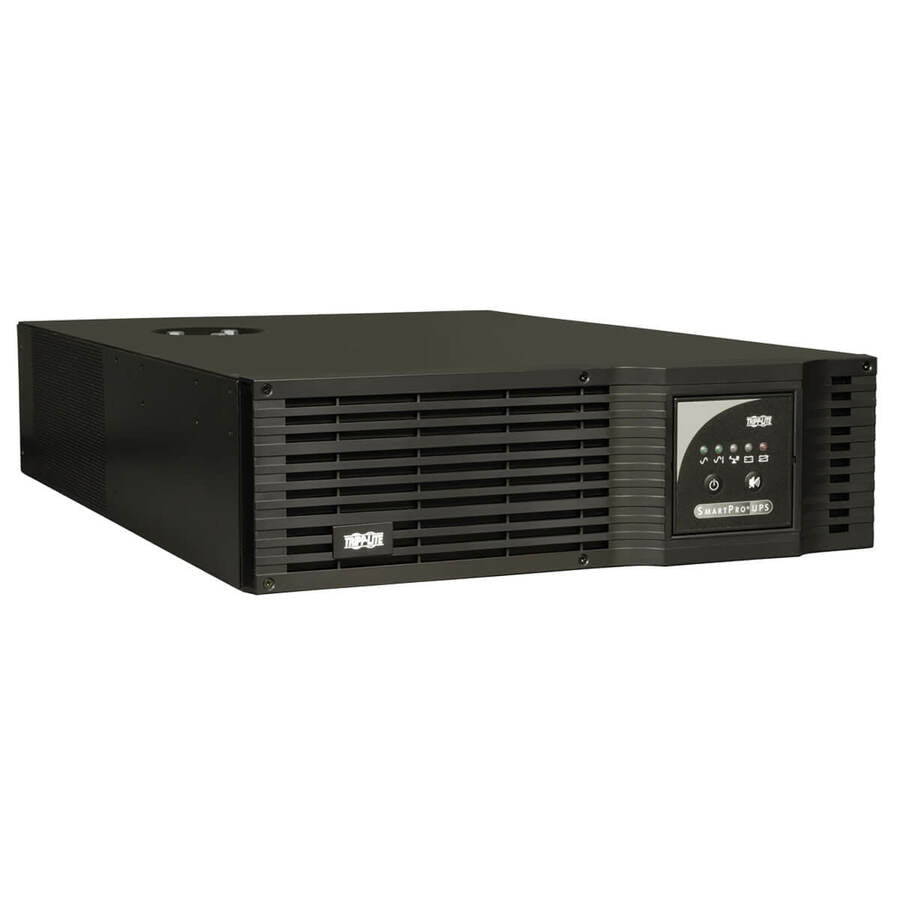

Tripp Lite SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS - SMART5000XFMRXL - Line-interactive UPS, 208 V AC, Tower, 3U, 208 V AC, NEMA L6-30P, SmartPro, 20 Minute, 8.50 Minute, 5 kVA/3.75 kW
Tripp Lite SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS - SMART5000XFMRXL - Line-interactive UPS, 208 V AC, Tower, 3U, 208 V AC, NEMA L6-30P, SmartPro, 20 Minute, 8.50 Minute, 5 kVA/3.75 kW
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART5000XFMRXL
- Input Voltage: 208 V AC
- Form Factor: Tower
- Rack Height: 3U
- Plug/Connector Type: NEMA L6-30P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 20 Minute
- Backup/Run Time (Full Load): 8.50 Minute
- Load Capacity: 5 kVA/3.75 kW
Marketing Information:
Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 3.75 kW |
| Input Voltage | 208 V AC |
| Input Current | 27 A |
| Output Voltage | 208 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Height | 5.25" (133.35 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 3U |
| Form Factor | Tower |
| Weight (Approximate) | 143.30 lb (64999.79 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Software Included | PowerAlert UPS Monitoring Software |
| Country of Origin | China |
| TAA Compliant | Yes |
| Limited Warranty | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

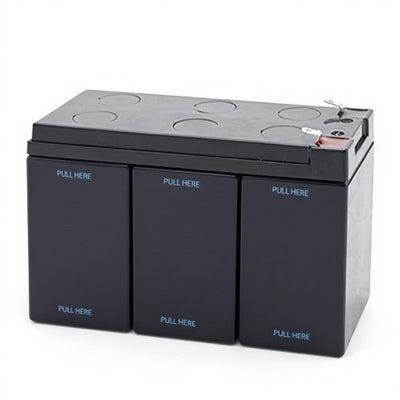

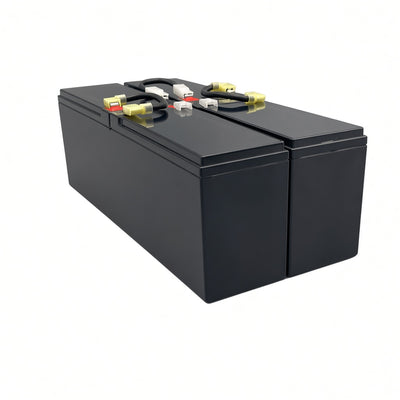

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
