| UPC | 0037332120311 |
| 3000VA/2250W - 4 Minute Full Load - 8 x IEC 320-C13, 1 x IEC 320-C19 | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMARTINT3000VS |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |

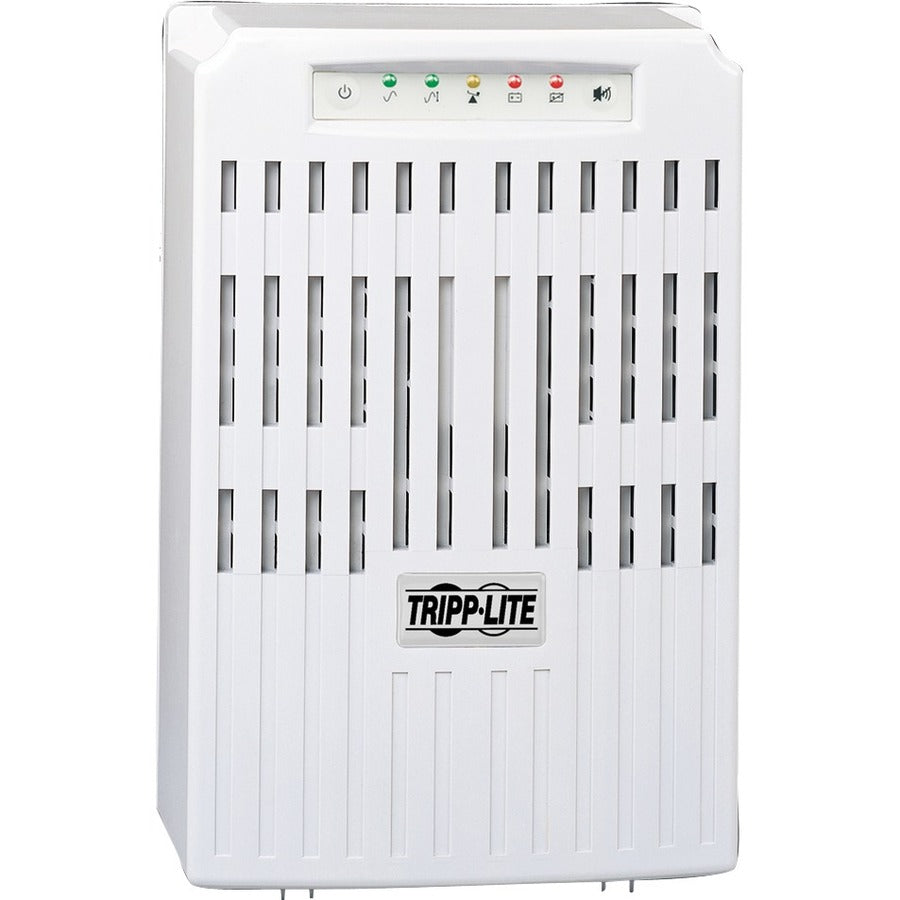

| Product Name: | SmartPro 3000VA Line Interactive Tower UPS |
| Marketing Information: | Tripp Lite's SMARTINT3000VS intelligent, line interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 14 minutes half load runtime and 4 minutes at full load. Runtime is expandable with optional external battery packs. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 3000VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of 9 outlets with 3 load banks that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and lin |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 320-C20 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.25 kW |
| Input Voltage: | 220 V AC |
| Output Voltage: | 230 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 1800 J | Management |
| Network Management: | SNMP Manageable |
| Alarm: | Utility Power Failure | Controls/Indicators |
| Status Indicators: |
5 Front panel LEDs:
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Battery Life: | 6 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 122°F (50°C) | Physical Characteristics |
| Color Family: | Gray |
| Product Color: | Gray |
| Height: | 14.25" (361.95 mm) |
| Width: | 9.25" (234.95 mm) |
| Depth: | 12" (304.80 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 27.67 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Country of Origin: | China | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
