About this UPS

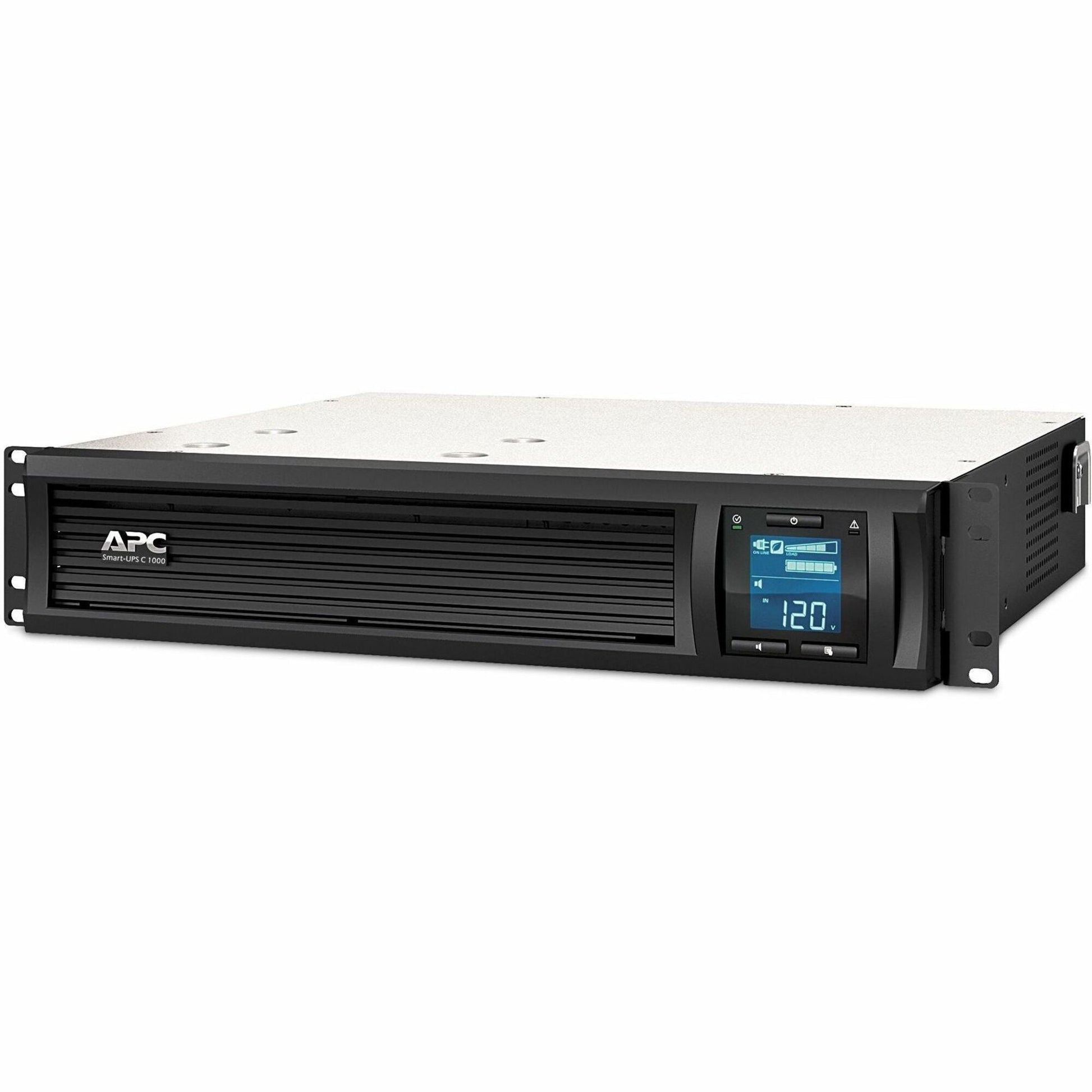

APC by Schneider Electric Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect
| UPC | 138324295403 |
| 2U Rack-mountable - 3 Hour Recharge - 9.20 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 6 x NEMA 5-15R - 6 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMC1000-2UC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Name: | Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect |
| Marketing Information: | This APC Smart-UPS is designed for small to medium business owners to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 600 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it's smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. UPS, Documentation CD, Installation guide, Rack mounting brackets, USB cable. |
| Packaged Quantity: | 1 |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15P |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Cord Length: | 8 ft |
| Transfer Time: | 10 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 600 W |
| Input Voltage: | 120 V |
| Input Voltage Range: | 93 V AC - 130 V AC |
| Output Voltage: | 120 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 680 J | Management |
| Network Management: | SmartConnect | Interfaces/Ports |
| Network (RJ-45): | Yes | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 9.20 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.39" (86 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 15.98" (406 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 20.52 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | cULus|ENERGY STAR V2.0 (USA) |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMC1000-2UC_ROHS_DECLARATION&p_FileName=SMC1000-2UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940260&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940260&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC: | No |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
| Additional Warranty Information: | 2 years repair or replace |
| Directly Connected Equipment Guarantee: |
|
Technical specifications
Power
VA Rating
1000VA
Wattage
600W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Input Plug
NEMA 5-15P (standard 15A)
Input Phase
Single-phase
Output
Output Voltage
120V
Receptacles
6× NEMA 5-15R
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
86 × 432 × 406 mm (3.39 × 17.01 × 15.98 in)
Weight
20.52kg
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (300 W)
15 min
Full load (600 W)
3.2 min
Compare with alternatives
The SMC1000-2UC side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with SMC1000-2UC Spec SMC1000-2UC Xtreme Power Capacity 1000 VA / 600 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 8 × NEMA 5-15R Runtime, half load 15 min 11 min Differences
- Lower VA rating: 800 VA instead of 1000 VA
- Larger unit: 720 W instead of 600 W
$1,068.18 -
Xtreme Power Conversion
Xtreme Power P91c-1000 1000 VA / 800 W Online UPS, 120 V
Compared with SMC1000-2UC Spec SMC1000-2UC Xtreme Power Capacity 1000 VA / 600 W 1000 VA / 800 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Rackmount 1U, 1U Input plug NEMA 5-15P NEMA 5-15P Outlets 6 × NEMA 5-15R 3 × NEMA 5-15R Runtime, half load 15 min 20 min Differences
- 3 battery-backed outlets instead of 6
- Online double-conversion, a step up from line-interactive
- Larger unit: 800 W instead of 600 W
$1,390.17
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
APC · Compatible replacement
APC 0M-10120E-001 Battery Replacement Kit
$85.99
Shop →
APC · Compatible replacement

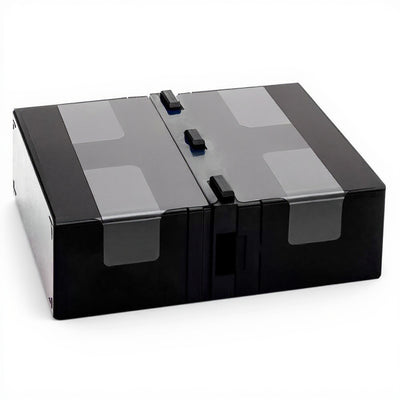

Replacement Battery for APC Smart-UPS 1000VA LCD SMC1000-2UC
$85.99
Shop →
APC · Compatible replacement

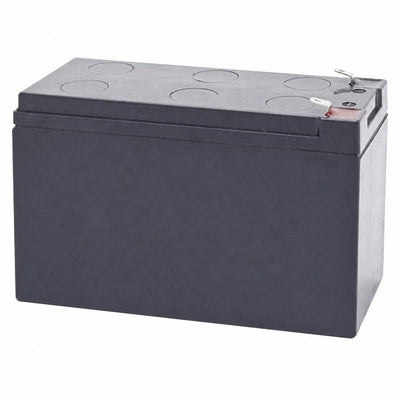

APC SMC1000-2UC Replacement Battery Set
$77.39
Shop →
APC · Compatible replacement

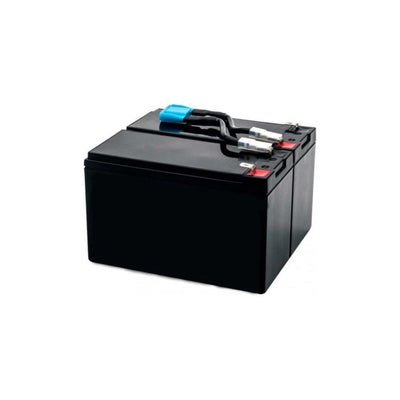

APC APCRBC124 (RBC124) Assembled Replacement Battery Cartridge
$85.99
Shop →
APC · Compatible replacement
APC APCRBC124 (RBC124) Replacement Battery Set
$77.39
Shop →
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
