About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMC10002URM
- Input Voltage: 120 V AC
- Form Factor: Rack/Tower
- Waveform Type: Sine Wave,Pure Sine Wave
- Rack Height: 2U

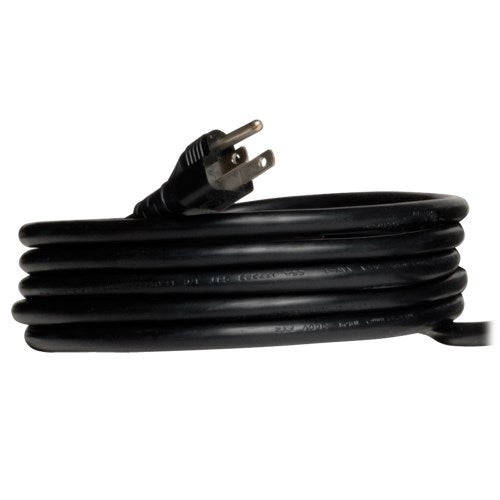

- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 15.60 Minute
- Backup/Run Time (Full Load): 6.40 Minute
- Load Capacity: 1 kVA/700 W
Marketing Information:

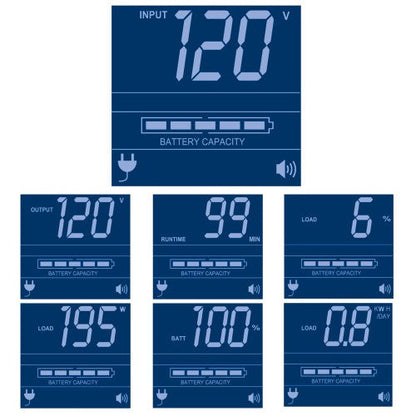

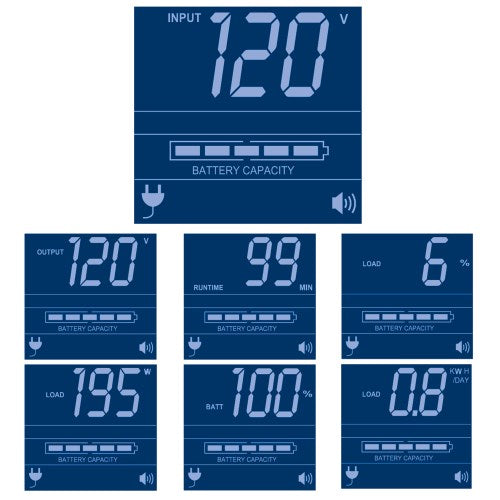

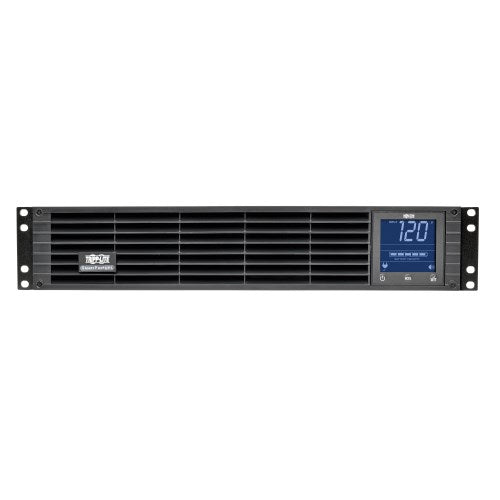

Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
| PRODUCT SPECIFICATIONS | |
|---|---|

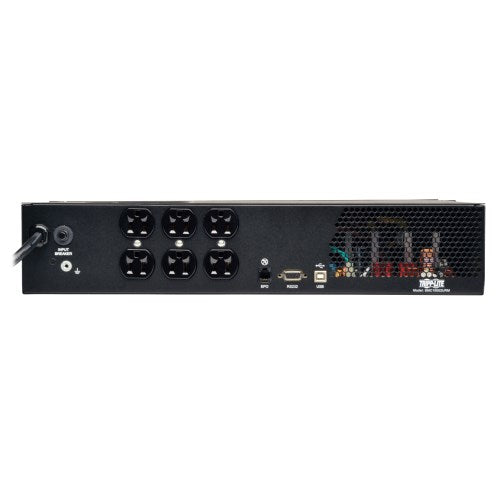

| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Protection Type |
|
| Emergency Power OFF | Yes |
| Cord Length | 9.8 ft (3 m) |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 120 V AC |
| Input Current | 9.20 A |
| Output Voltage | 120 V AC |
| Waveform Type |
|
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Alarm |
|
| Battery Management | user-replaceable |
| Status Indicators | LEDs |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 6.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Sound Emission | 45 dB |
| Thermal Dissipation | 122 BTU/h |
| Height | 3.45" (87.63 mm) |
| Width | 17.35" (440.69 mm) |
| Depth | 12.50" (317.50 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb (16057.17 g) |
| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.

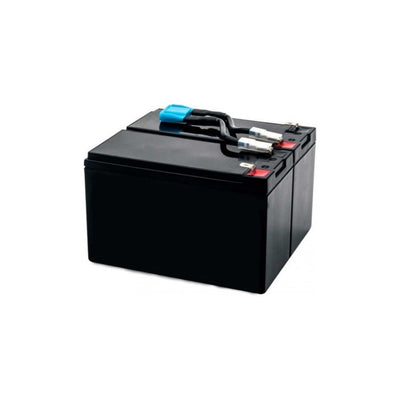

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
