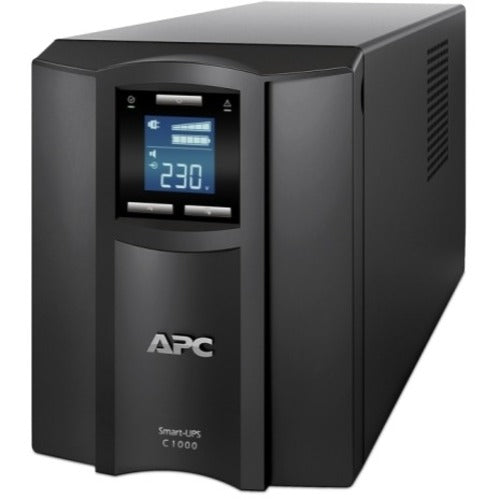

APC by Schneider Electric Smart-UPS C 1000VA LCD 230V - SMC1000I
APC by Schneider Electric Smart-UPS C 1000VA LCD 230V - SMC1000I
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
APC by Schneider Electric Smart-UPS C 1000VA LCD 230V
| UPC | 0731304303688 |
| Tower - 3 Hour Recharge - 6.10 Minute Stand-by - 230 V AC Input - 230 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC Jumper, 8 x IEC 60320 C13 - 10 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMC1000I |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SMC |
| Product Name: | Smart-UPS C 1000VA LCD 230V |
| Marketing Information: | Over 20 million units sold - the UPS you can trust |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | IEC 60320 C14 |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 10 | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 600 W |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 170 V AC - 300 V AC |
| Output Voltage: | 230 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 455 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Multifunction LCD status and control console |
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Number of Batteries: | 1 |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 6.10 Minute |
| Backup/Run Time (Half Load): | 16.18 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 113 °F (45 °C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) |
| Maximum Storage Elevation: | 50000 ft (15240000 mm) |
| Operating Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 41 dB(A) |
| Thermal Dissipation: | 100 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 8.62" (219 mm) |
| Width: | 6.73" (171 mm) |
| Depth: | 17.28" (439 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 17.27 kg | Miscellaneous |
| Package Contents: |
|
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

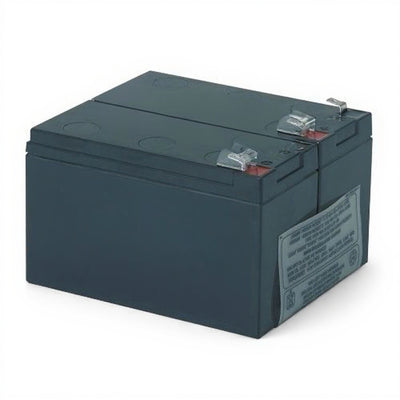

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
