| UPC | 0731304426240 |
| 1U Rack-mountable - AVR - 4 Hour Recharge - 4.75 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 4 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMT1500RM1UC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SMT |

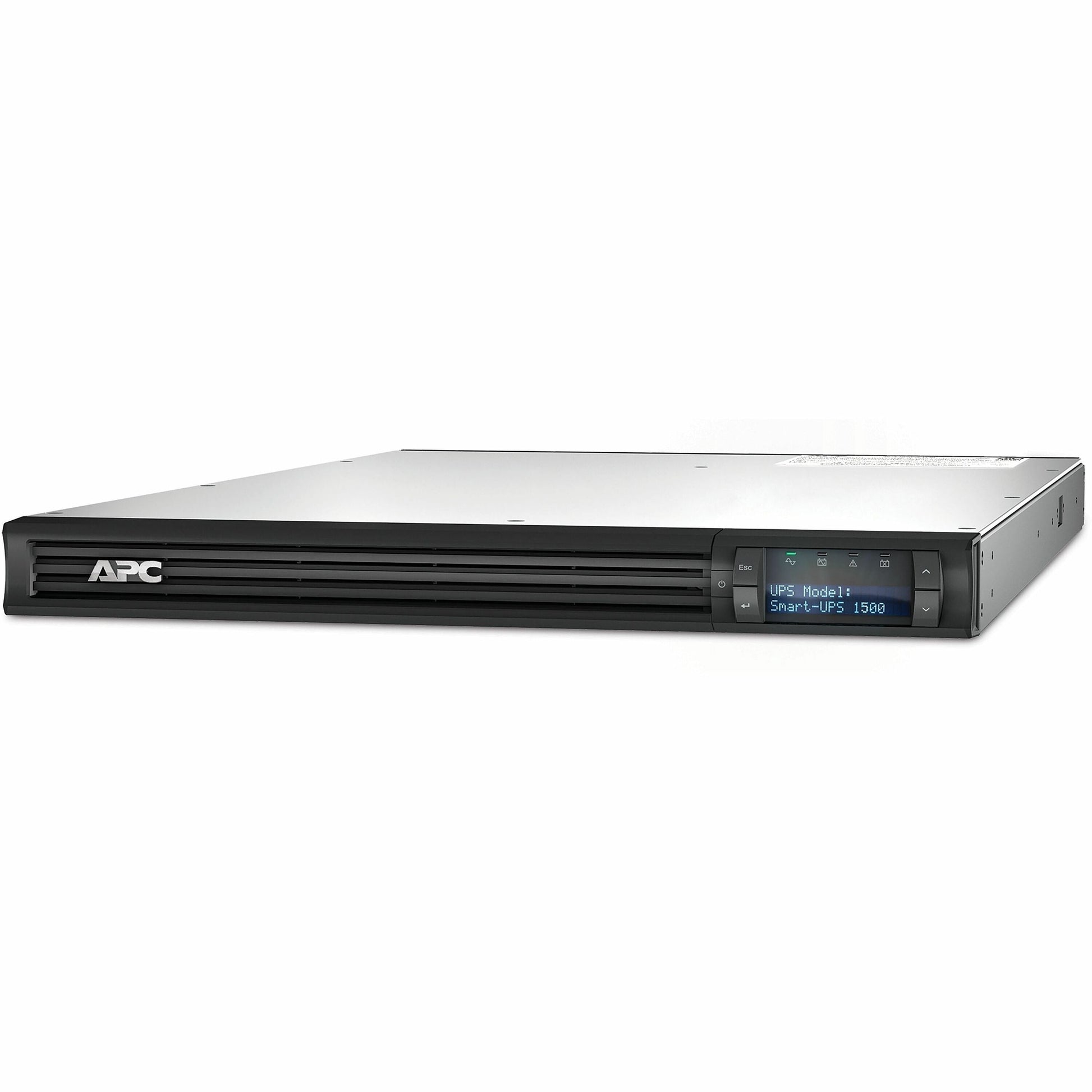

| Product Name: | Smart-UPS SMT 1500VA Rack-mountable UPS |
| Marketing Information: | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. |
| Packaged Quantity: | 1 |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15P |
| Receptacle Detail: | 4 x NEMA 5-15R |
| Cord Length: | 8 ft |
| Transfer Time: | 4 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.44 kVA |
| Load Capacity (Watt): | 1 kW |
| Input Voltage: | 120 V |
| Input Voltage Range: |
|
| Input Current: | 12 A |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 645 J |
| Input Power Factor: | 0.7 | Display & Graphics |
| Display: | LCD | Management |
| Network Management: | SmartConnect |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Multi-function LCD status and control console |
Interfaces/Ports |
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes |
| EPO Port: | Yes | Battery Information |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 36V |
| Battery Capacity: | 54000 mAh |
| Battery Energy: | 1054.8 kJ |
| Backup/Run Time (Full Load): | 4.75 Minute |
| Backup/Run Time (Half Load): | 16.57 Minute |
| Battery Life: | 5 Year |
| Typical Battery Recharge Time: | 4 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) |
| Maximum Storage Elevation: | 50000 ft (15240000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission: | 46 dB |
| Thermal Dissipation: | 116 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 1.73" (44 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 26.18" (665 mm) |
| Rack Height: | 1U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 24.50 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA)|CSA|UL 1778 5th edition|FCC part 15 class A|cUL |
| Software Included: | Powerchute Serial Edition |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM1UC_ROHS_DECLARATION&p_FileName=SMT1500RM1UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108618&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108618&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Energy Efficiency Certification: | ENERGY STAR 2.0 |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee: |
|
