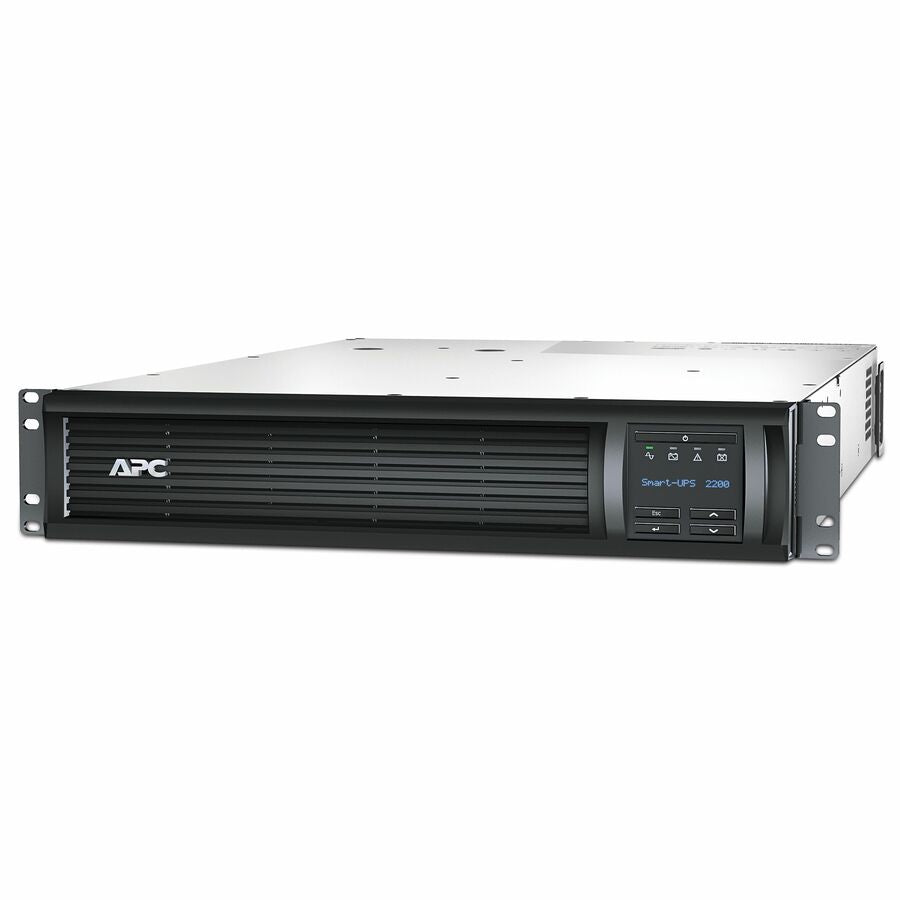

About this UPS
Product Features:
- Brand: APC by Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMT2200RM2UNC
- Input Voltage: 120 V
- Form Factor: Rack-mountable
- Waveform Type: Sine Wave
- Rack Height: 2U
- Product Family: Smart-UPS
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 1.92 kVA/1.92 kW
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Application/Usage |
|
| Load Capacity (VA) | 1.92 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Color Family | Black |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 26.89" (683 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 93.28 lb (42311.10 g) |
| Package Contents |
|
| Certifications & Standards | CSA |
| Energy Star | Yes |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200RM2UNC_ROHS_DECLARATION&p_FileName=SMT2200RM2UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940386&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940386&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee |
|
Technical specifications
Power
VA Rating
1920VA
Wattage
1920W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
2× NEMA 5-20R6× NEMA 5-15R
Features
Form Factor
Rackmount 2U
Connectivity
["USB""RS-232 Serial""SNMP (via Network Management Card)""HTTP/Web Management"]
Network Card Installed
true
Extended Runtime Capable
true
Condition
New
Dimensions
86 × 480 × 683 mm (3.39 × 18.90 × 26.89 in)
Weight
42.31kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (960 W)
24.0 min
Full load (1920 W)
5.0 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.

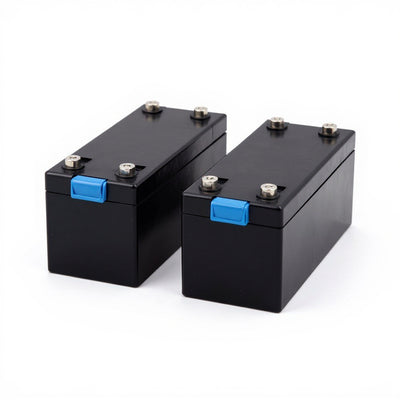

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
