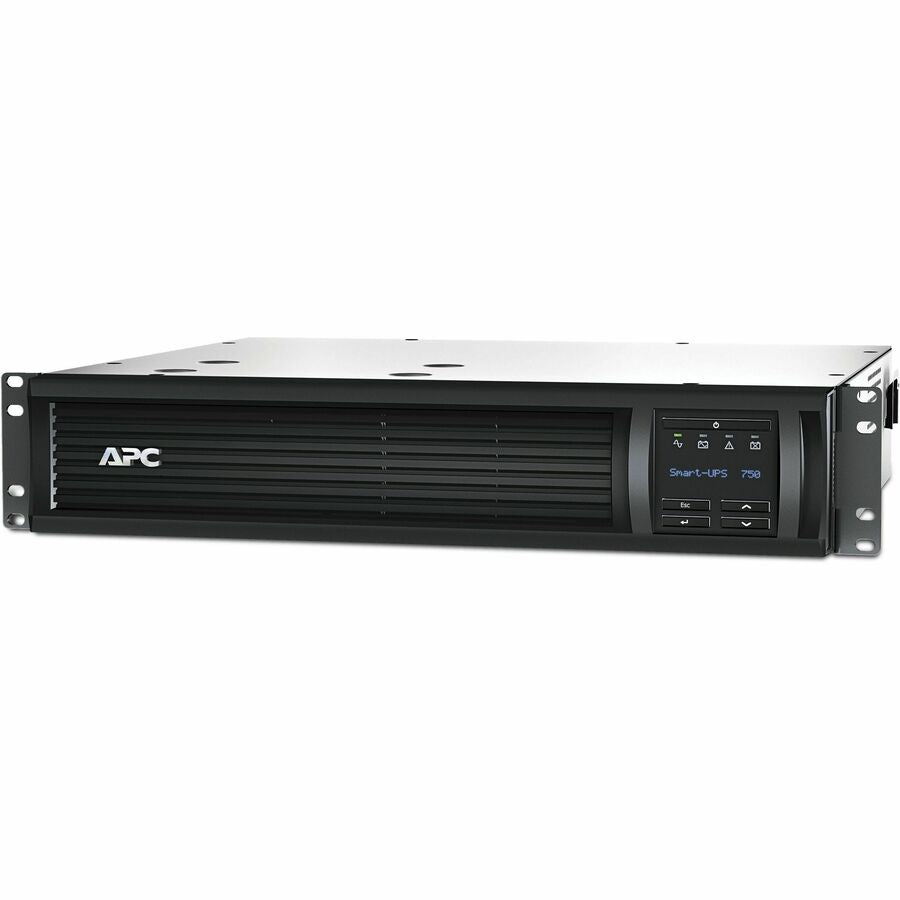

About this UPS
Product Features:
- Brand: APC by Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMT750RMI2U
- Input Voltage: 230 V
- Form Factor: Rack-mountable
- Rack Height: 2U
- Product Family: Smart-UPS
- Backup/Run Time (Half Load): 16 Minute
- Backup/Run Time (Full Load): 5 Minute
- Load Capacity: 750 VA/500 W
Marketing Information: This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Receptacle Type | IEC 320-C14 |
| Receptacle Detail |
|
| Number of Battery & Surge Outlets | 6 |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 15.98" (406 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 38.07 lb (17268.26 g) |
| Package Contents |
|
| Certifications & Standards | CE|CSA|EAC|RCM|T�V|VDE |
| Software Included | Powerchute Serial Edition |
| Green Premium | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750RMI2U_ROHS_DECLARATION&p_FileName=SMT750RMI2UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035394&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035394&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
Technical specifications
Power
VA Rating
750VA
Wattage
500W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Output
Output Voltage
230V
Features
Form Factor
Rackmount 2U
Connectivity
["USB""RS-232 Serial""SNMP (via Network Management Card)""HTTP/Web Management""Smart Slot (expansion bay)"]
Condition
New
Dimensions
89 × 432 × 406 mm (3.50 × 17.01 × 15.98 in)
Weight
17.27kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (250 W)
16.0 min
Full load (500 W)
5.0 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
