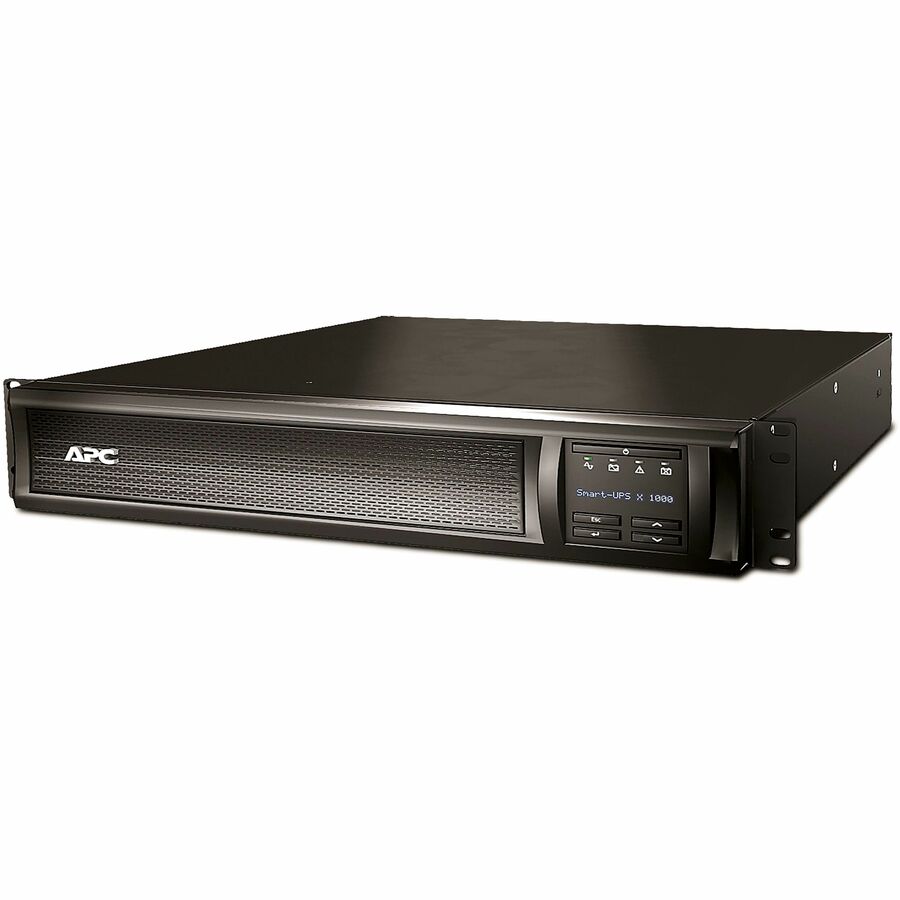

About this UPS
Product Features:
- Brand: APC by Schneider Electric
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMX1000CNC
- Input Voltage: 120 V AC
- Form Factor: Tower/Rack Convertible
- Backup/Run Time (Half Load): 19.70 Minute
- Backup/Run Time (Full Load): 8 Minute
- Load Capacity: 1 kVA/900 W
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Cord Length | 8 ft (2.44 m) |
| Application/Usage |
|
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 693 J |
| Network Management | SmartConnect |
| Alarm |
|
| Status Indicators |
Control Panel:
|
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 19.70 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Color Family | Black |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.50" (89 mm) |
| Depth | 19.29" (490 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Mounting Preference | Lower |
| Weight (Approximate) | 50.40 lb (22861.06 g) |
| Certifications & Standards | ENERGY STAR V2.0 (USA)|cUL Listed |
| Software Included | Ecostruxure IT |
| Energy Star | Yes |
| Green Premium | Yes |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX1000CNC_ROHS_DECLARATION&p_FileName=SMX1000CNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108619&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108619&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Directly Connected Equipment Guarantee |
|
Technical specifications
Power
VA Rating
1000VA
Wattage
900W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
8× NEMA 5-15R
Features
Form Factor
Tower/Rack Convertible
Connectivity
["USB""SNMP (via Network Management Card)""HTTP/Web Management"]
Network Card Installed
true
Extended Runtime Capable
true
Condition
New
Dimensions
432 × 89 × 490 mm (17.01 × 3.50 × 19.29 in)
Weight
22.86kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (450 W)
28.0 min
Full load (900 W)
8.0 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
