Tripp Lite SmartPro SMX1500XLRT2U 1500 VA / 1500 W Rack/Tower UPS 230 V
- Power
- 1500 VA / 1500 W
- Form
- Tower/Rack Convertible
- Outlets
- 8× IEC 60320 C13
$1,863.99
Tripp Lite

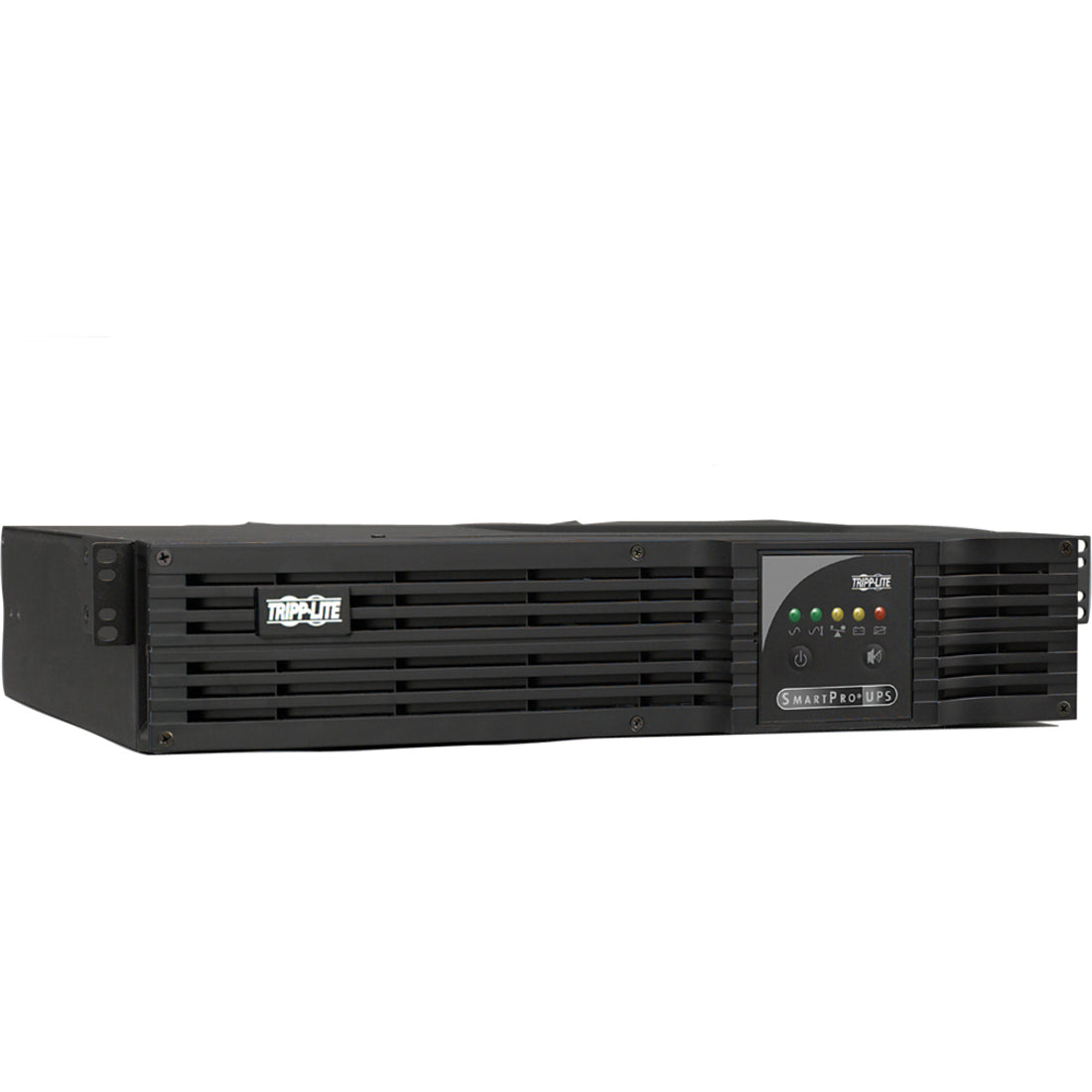

Tripp Lite SmartPro SMX1000RT2U 1000 VA / 900 W Rack Line-Interactive UPS
Tripp Lite SmartPro SMX1000RT2U 1000 VA / 900 W Rack Line-Interactive UPS
Discontinued by the manufacturerManufacturer’s current model: SMX1500XLRT2U. This listing is the earlier model.
Regular price
$1,016.99 CAD
Regular price
Sale price
$1,016.99 CAD
Available on order
230 V model. Not for 120 V outlets.
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMX1000RT2U
- Input Voltage: 220 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Plug/Connector Type: IEC 320-C14
- Product Family: SmartPro
- Backup/Run Time (Half Load): 11.90 Minute
- Backup/Run Time (Full Load): 3.60 Minute
- Load Capacity: 1 kVA/900 W
- Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
- Audible alarm signals loss of utility power, overload, low battery and fault conditions
- 6 C13 outlets
- C14 inlet accepts user-supplied AC power cord with country-specific plug
- 350-joule surge suppression rating
- Supports half load up to 11.9 min. and full load up to 3.6 min.
- Internal batteries designed for hot-swap field replacement
- 97% line-power efficiency rating saves money in energy costs
- Can control 4 outlets remotely to reboot equipment or shed nonessential loads
- Maintains 230V nominal output over input range of 182V-278V without using battery power
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
- Front-panel LCD signals voltage, battery and load statuses
- Supports multiple advanced user setup and operating preferences
- Rotates for easy viewing in rack-mount or tower configurations
- Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
- PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
- IP-based Auto Probe detects lost connectivity and restores service autonomously
- USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's Power Alert software (available via free download at
- www.tripplite.com/poweralert)
- EPO port supports emergency shutdown in large facilities
- Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- Mounts in upright tower position with optional 2-9USTAND accessory
Marketing Information:
Protects Mission-Critical Rack-Mounted Equipment
Reliable Battery Backup
2 Load Banks with Switchable Outlets
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
Interactive LCD Screen
Optional Network Management Cards
Communications Ports
Versatile Installation Options
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 13.50" (342.90 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 33.40 lb (15149.99 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Software Included | PowerAlert monitoring software |
| Country of Origin | China |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1000VA
Wattage
900W
Topology
Line-Interactive
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C14
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
6× IEC 60320 C13
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Dimensions
89 × 444 × 343 mm (3.50 × 17.50 × 13.50 in)
Weight
15.15kg
Certifications
GOST (Russia)IEC/EN 62040
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (450 W)
12 min
Full load (900 W)
3.6 min
Available now
The manufacturer no longer makes the SMX1000RT2U. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power J90i-1KLi 1000 VA / 900 W Lithium-Ion UPS, 230 V
Compared with SMX1000RT2U Spec SMX1000RT2U Xtreme Power Capacity 1000 VA / 900 W 1000 VA / 900 W Topology Line-Interactive Online Double-Conversion Form Rackmount 2U, 2U Rackmount 1U, 1U Input plug IEC C14 IEC C14 Outlets 6 × IEC 60320 C13 4 × IEC 60320 C13 Runtime, half load 12 min Not stated Differences
- 4 battery-backed outlets instead of 6
- Online double-conversion, a step up from line-interactive
$2,911.04
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SMX1000RT2U. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

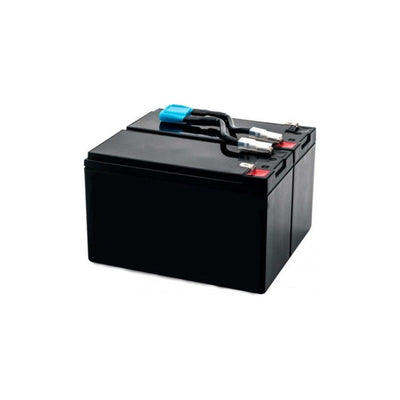

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
