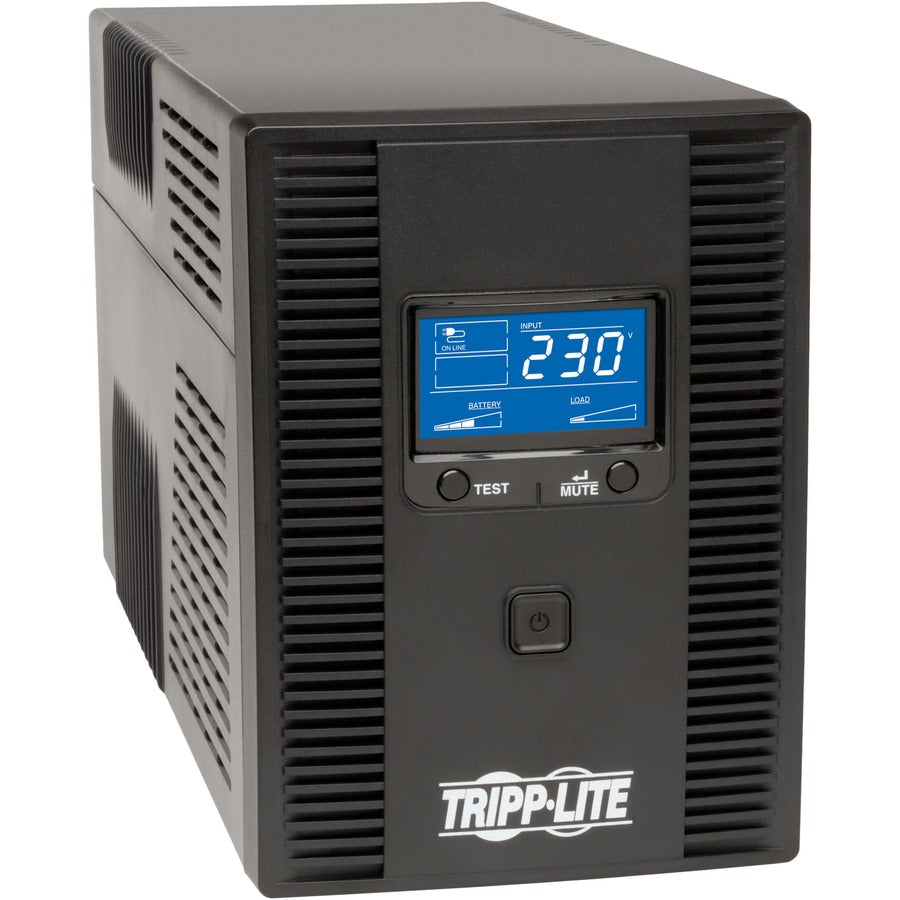

About this UPS
Product Features:
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMX1500LCDTA
- Input Voltage: 230 V AC
- Form Factor: Tower
- Backup/Run Time (Half Load): 10 Minute
- Load Capacity: 1.50 kVA/900 W
Marketing Information: Desktop UPS offers complete power protection for small network applications, including home offices, security systems and digital signage.
Features | 1.5kVA/900W/230V Battery Backup for PCs, Home Theaters or Digital Signage
This SmartPro ® line-interactive UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 230V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, kiosks, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 90 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
8 IEC 320 C13 Outlets Protect Your Connected Components
Six C13 outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other two C13 outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. Included outlet adapters convert two C13 outlets to 10A Australia/New Zealand-compatible outlets. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMX1500LCDTA can correct brownouts as low as 170V and overvoltages as high as 280V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
455 Joules Fight Back Against Unexpected Power Surges
A 455-joule surge suppression rating protects connected components from the harmful effects of power surges. In addition to the C13 outlets, the RJ45 jacks for phone, DSL, fax, modem and Ethernet connections (not compatible with PoE applications) also are protected against surges.
Product Specifications:
Product Features:
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Number of Surge-only Outlets | 2 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 455 J |
| Alarm |
|
| Status Indicators |
LCD Interface:
|
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 122 °F (50 °C) |
| Thermal Dissipation | 918 BTU/h |
| Height | 7.99" (203 mm) |
| Width | 5.75" (146 mm) |
| Depth | 15.51" (394 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 24.69 lb (11200 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Power
VA Rating
1500VA
Wattage
900W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C14
Input Phase
Single-phase
Output
Output Voltage
220V
Receptacles
6× IEC 60320 C132× IEC 60320 C13 (no battery backup)
Features
Form Factor
Tower
Connectivity
USBHTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
No
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
203 × 146 × 394 mm (7.99 × 5.75 × 15.51 in)
Weight
11.2kg
Certifications
GOST (Russia)EN 62040-1EN 62040-2
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (450 W)
10 min
Full load (900 W)
2.3 min
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

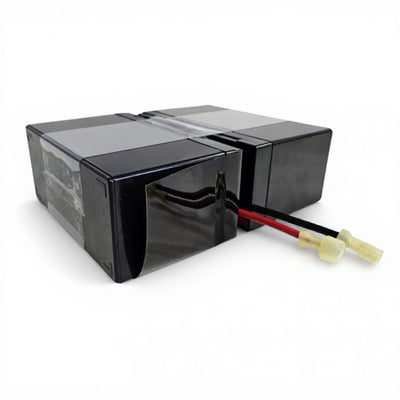

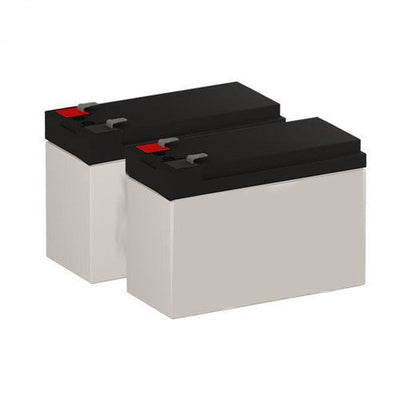

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
