Tripp Lite SmartPro SMX1500XLRT2UN 1500 VA / 1500 W Rack/Tower UPS 230 V
Tripp Lite SmartPro SMX1500XLRT2UN 1500 VA / 1500 W Rack/Tower UPS 230 V
Available on order
230 V model. Not for 120 V outlets.
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMX1500XLRT2UN
- Input Voltage: 230 V AC
- Form Factor: Rack/Tower
- Waveform Type: Pure Sine Wave
- Rack Height: 2U
- Plug/Connector Type: IEC 60320 C14
- Product Family: SmartPro
- Backup/Run Time (Half Load): 13.60 Minute
- Backup/Run Time (Full Load): 4.90 Minute
- Load Capacity: 1.50 kVA/1.35 kW
Marketing Information:
1.5kVA/1.35kW/230V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro ® line-interactive SMX1500XLRT2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 230V battery backup with 0.9 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 13.6 minutes of support at half load (675W) and 4.9 minutes at full load (1350W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP36V15-2U (sold separately).
WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
8 Outlets Protect Your Connected Components
Eight C13 outlets provide battery backup, 350 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMX1500XLRT2UN can correct brownouts as low as 158V and overvoltages as high as 278V back to nominal 230V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 97% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock
The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
| PRODUCT SPECIFICATIONS | |
|---|---|
| AVR | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Application/Usage |
|
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.50 kW |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 350 J |
| Network Management | SNMP/Telnet/SSH |
| Alarm |
|
| Status Indicators |
Front Panel LCD Information And Configuration Screen:
|
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 36 V DC |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 13.60 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Sensors |
|
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 5 °F (-15 °C) - 122 °F (50 °C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 689 BTU/h |
| Height | 3.50" (89 mm) |
| Width | 17.40" (442 mm) |
| Depth | 13.50" (343 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 43.10 lb (19550 g) |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Compare with alternatives
The SMX1500XLRT2UN side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P91g-1500 1500 VA / 1500 W Online UPS, 230 V
Compared with SMX1500XLRT2UN Spec SMX1500XLRT2UN Xtreme Power Capacity 1500 VA / 1500 W 1500 VA / 1500 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug IEC C14 NEMA L6-20P Outlets 8 × IEC 60320 C13 8 × IEC 60320 C13 Runtime, half load 14 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C14 inlet cord
- Online double-conversion, a step up from line-interactive
$1,745.43 -
Xtreme Power Conversion
Xtreme Power P91g-2000 2000 VA / 2000 W Online UPS, 208/230 V
Compared with SMX1500XLRT2UN Spec SMX1500XLRT2UN Xtreme Power Capacity 1500 VA / 1500 W 2000 VA / 2000 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug IEC C14 NEMA L6-20P Outlets 8 × IEC 60320 C13 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 14 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C14 inlet cord
- Online double-conversion, a step up from line-interactive
- Larger unit: 2000 W instead of 1500 W
$2,292.00 -
Xtreme Power Conversion
Xtreme Power J90i-2KLiD 2000 VA / 1800 W Lithium-Ion UPS, 230 V
Compared with SMX1500XLRT2UN Spec SMX1500XLRT2UN Xtreme Power Capacity 1500 VA / 1500 W 2000 VA / 1800 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Rackmount 1U, 1U Input plug IEC C14 IEC C20 Outlets 8 × IEC 60320 C13 3 × IEC 60320 C13, 1 × IEC 60320 C19 Runtime, half load 14 min 12 min Differences
- Input inlet IEC C20 instead of IEC C14: uses a different power cord
- Rack mount only, no tower stand
- 4 battery-backed outlets instead of 8
- Online double-conversion, a step up from line-interactive
$4,871.54
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.

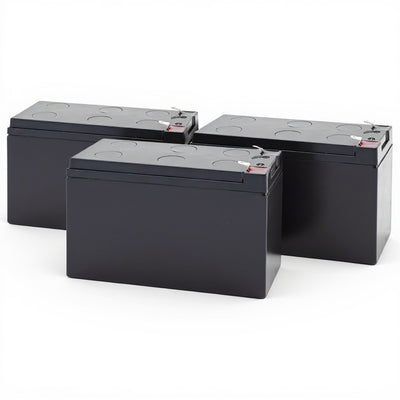

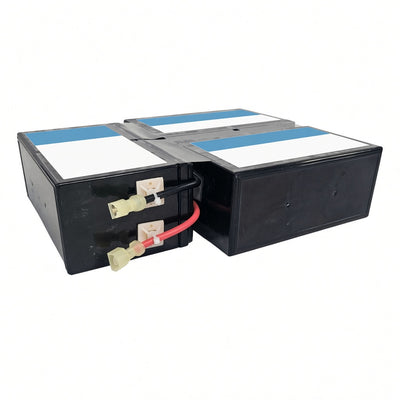

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
