Tripp Lite

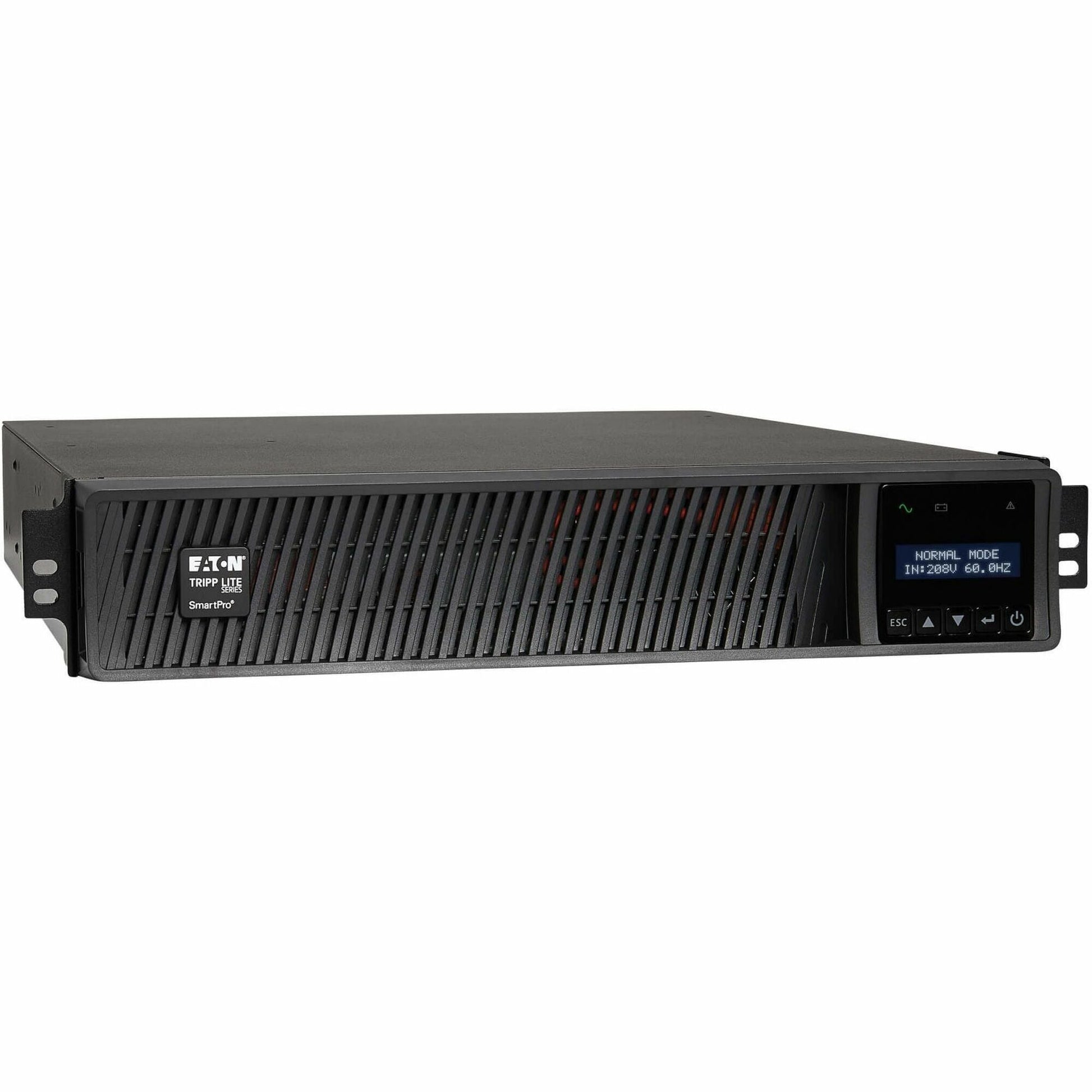

Tripp Lite by Eaton SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS - SMX1500XLRT2UN
Tripp Lite by Eaton SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS - SMX1500XLRT2UN
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
Tripp Lite by Eaton SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS
| UPC | 0037332256423 |
| 2U Rack/Tower - AVR - 4.50 Hour Recharge - 4.90 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 8 x IEC 60320 C13 | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SMX1500XLRT2UN |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartPro |
| Product Model: | SMX1500XLRT2UN |
| Product Name: | SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS |
| Marketing Information: |
1.5kVA/1.5kW/208V Battery Backup for Distributed IT, Telecom or Enterprise Deployments This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMX1500XLRT2UN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7 C13 Outlets Protect Your Connected Components Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better ENERGY STAR-Certified to Help You Save Money and Protect the Environment |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | IEC 60320 C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: | 8 x IEC 60320 C13 |
| Overload Protection: | Yes |
| Transfer Time: | 6 ms |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Energy Saving: | Green Energy-Saving |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.50 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 50 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 350 J | Management |
| Network Management: | SNMP/Telnet/SSH |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
Front Panel LCD Information And Configuration Screen:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 36 V DC |
| Backup/Run Time (Full Load): | 4.90 Minute |
| Backup/Run Time (Half Load): | 13.60 Minute |
| Typical Battery Recharge Time: | 4.50 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Environmental Sensors: |
|
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 122 °F (50 °C) |
| Sound Emission (A-Weighted): | 45 dB(A) |
| Thermal Dissipation: | 689 BTU/h | Physical Characteristics |
| Height: | 3.50" (89 mm) |
| Width: | 17.40" (442 mm) |
| Depth: | 13.50" (343 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 19.55 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
