| UPC | 0731304292609 |
| 4U Rack-mountable - 3 Hour Recharge - 10 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - USB - 2 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - 12 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX2200HV |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Series: | SMX |

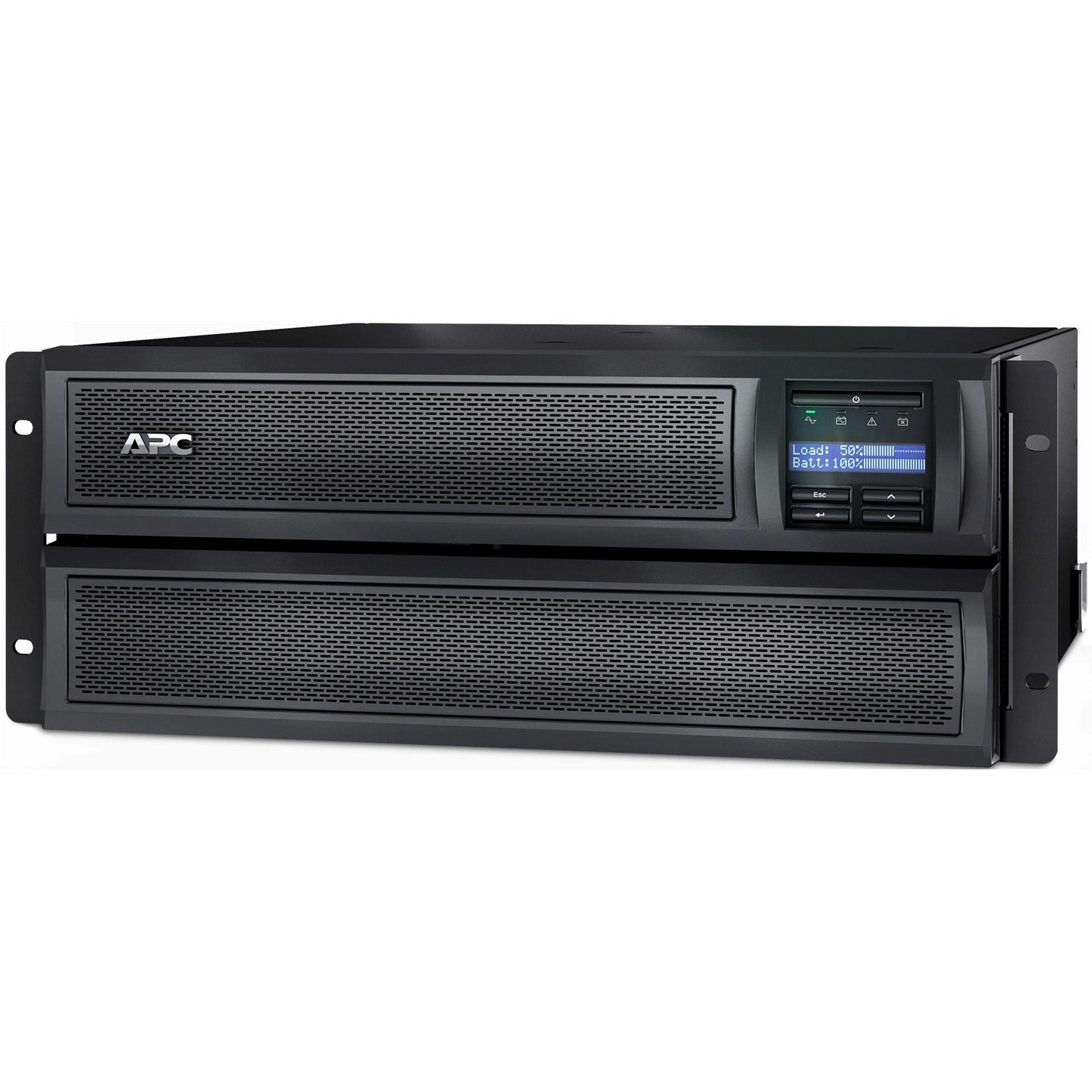

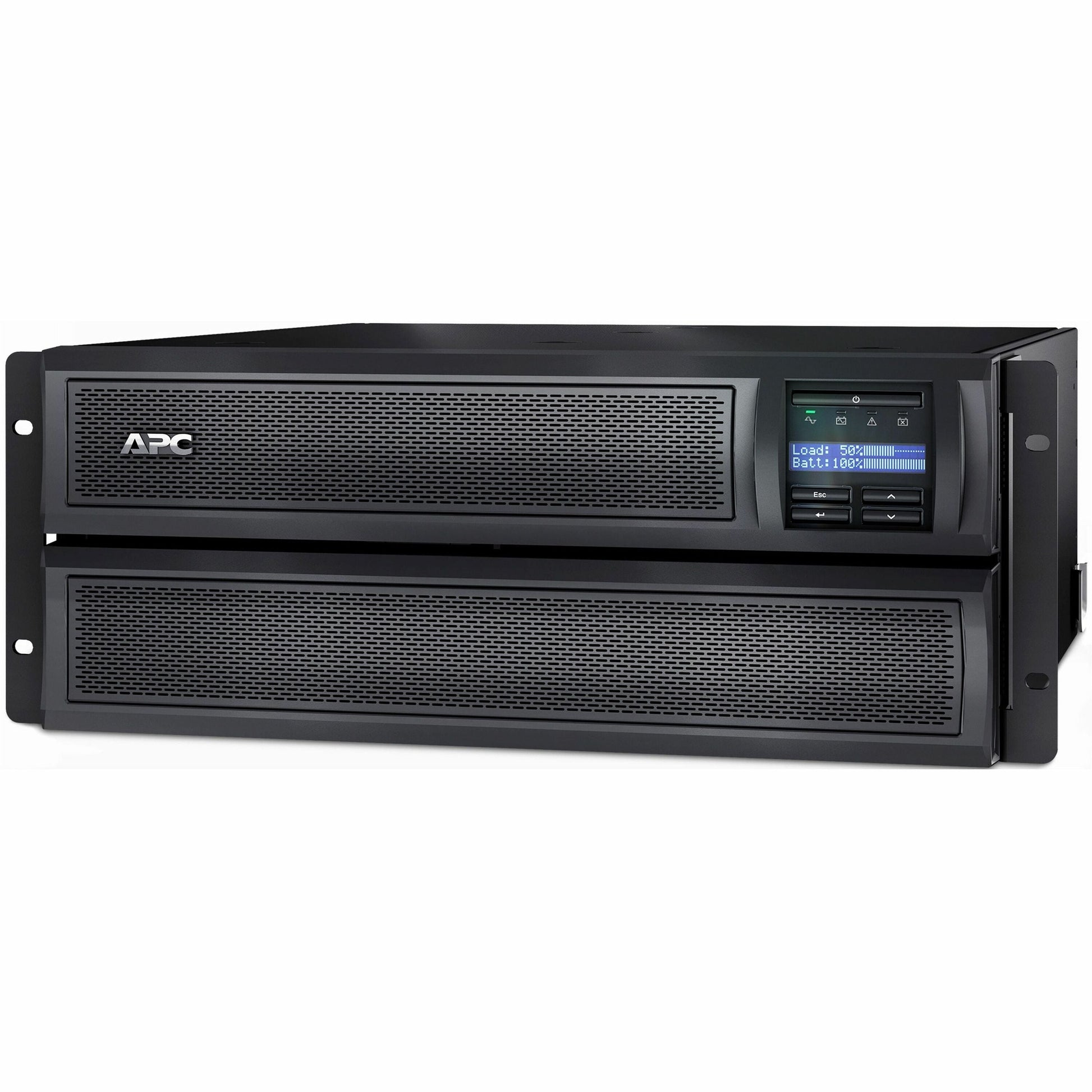

| Product Name: | Smart-UPS X 2200VA Rack/Tower LCD 200-240V |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: | Schuko CEE 7/EU1-16P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 12 |
| Emergency Power OFF: | Yes |
| Cord Length: | 6.6 ft | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.98 kW |
| Input Voltage: |
|
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 645 J | Management |
| Alarm: |
|
Interfaces/Ports |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 10 Minute |
| Backup/Run Time (Half Load): | 25 Minute |
| Typical Battery Recharge Time: | 3 Hour | Environmental Conditions |
| Sound Emission (A-Weighted): | 55 dB(A) |
| Thermal Dissipation: | 150 BTU/h | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 7.01" (178 mm) |
| Depth: | 19.02" (483 mm) |
| Rack Height: | 4U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 38.56 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CE|EAC|IRAM|RCM|TISI|VDE|UK PSTI |
| Software Included: | Powerchute Serial Edition |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2200HV_ROHS_DECLARATION&p_FileName=SMX2200HVKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166972&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166972&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
Call us if more information required.
