| UPC | 0731304327738 |
| 2U Tower - 3 Hour Recharge - 9.80 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - 11 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX2200R2HVNC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |

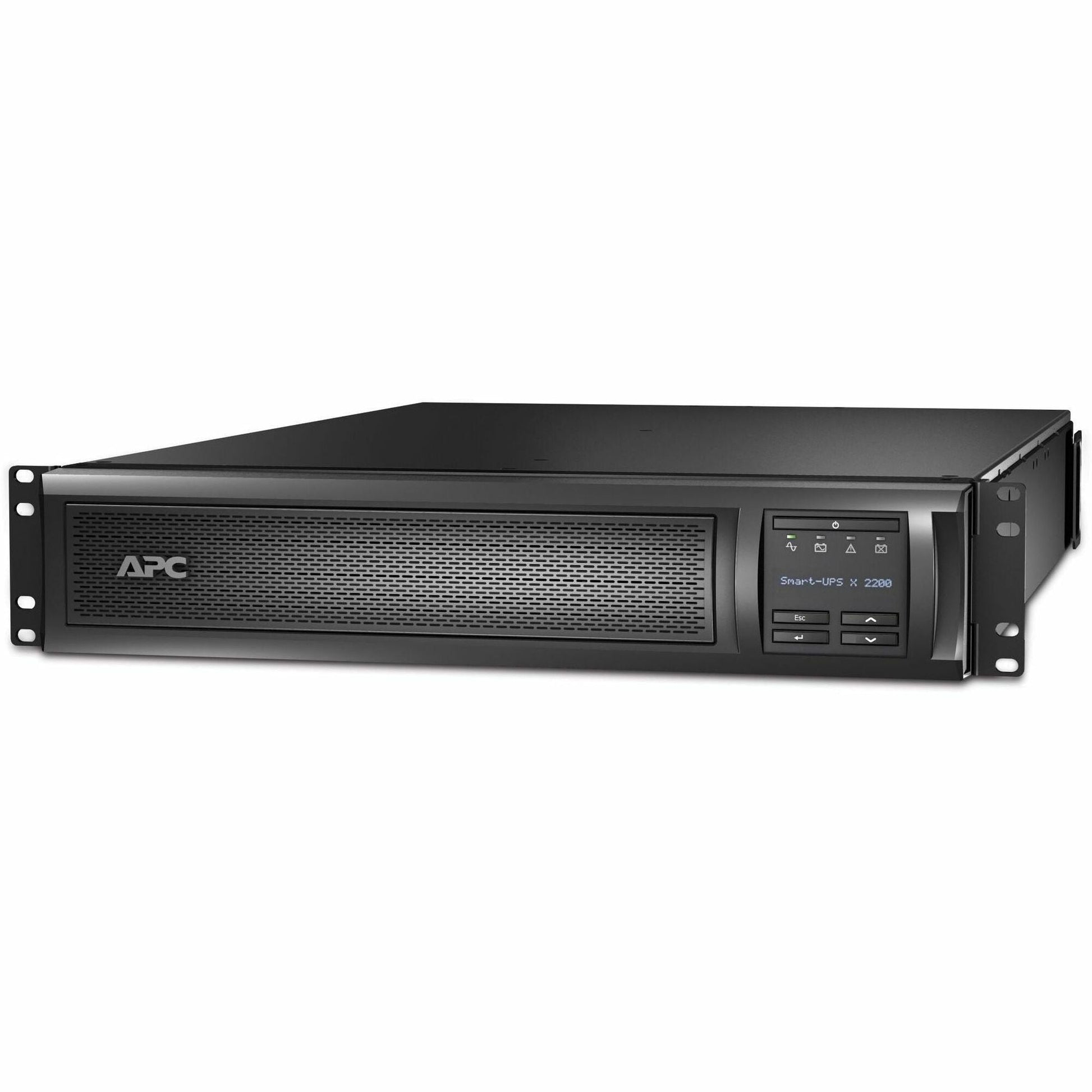

| Product Name: | Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network Card |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: | Schuko CEE 7/EU1-16P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 11 |
| Cord Length: | 6 ft |
| Transfer Time: | 10 ms | Power Description |
| Load Capacity (VA): | 2.20 kVA |
| Load Capacity (Watt): | 1.98 kW |
| Input Voltage: |
|
| Output Voltage: |
|
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 645 J | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 9.80 Minute |
| Typical Battery Recharge Time: | 3 Hour | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.35" (85 mm) |
| Width: | 17.01" (432 mm) |
| Depth: | 26.26" (667 mm) |
| Rack Height: | 2U |
| Form Factor: | Tower |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 37.24 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | CE|EAC|IRAM|RCM|TISI|VDE|UK PSTI |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2200R2HVNC_ROHS_DECLARATION&p_FileName=SMX2200R2HVNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563160&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563160&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery |
Call us if more information required.
