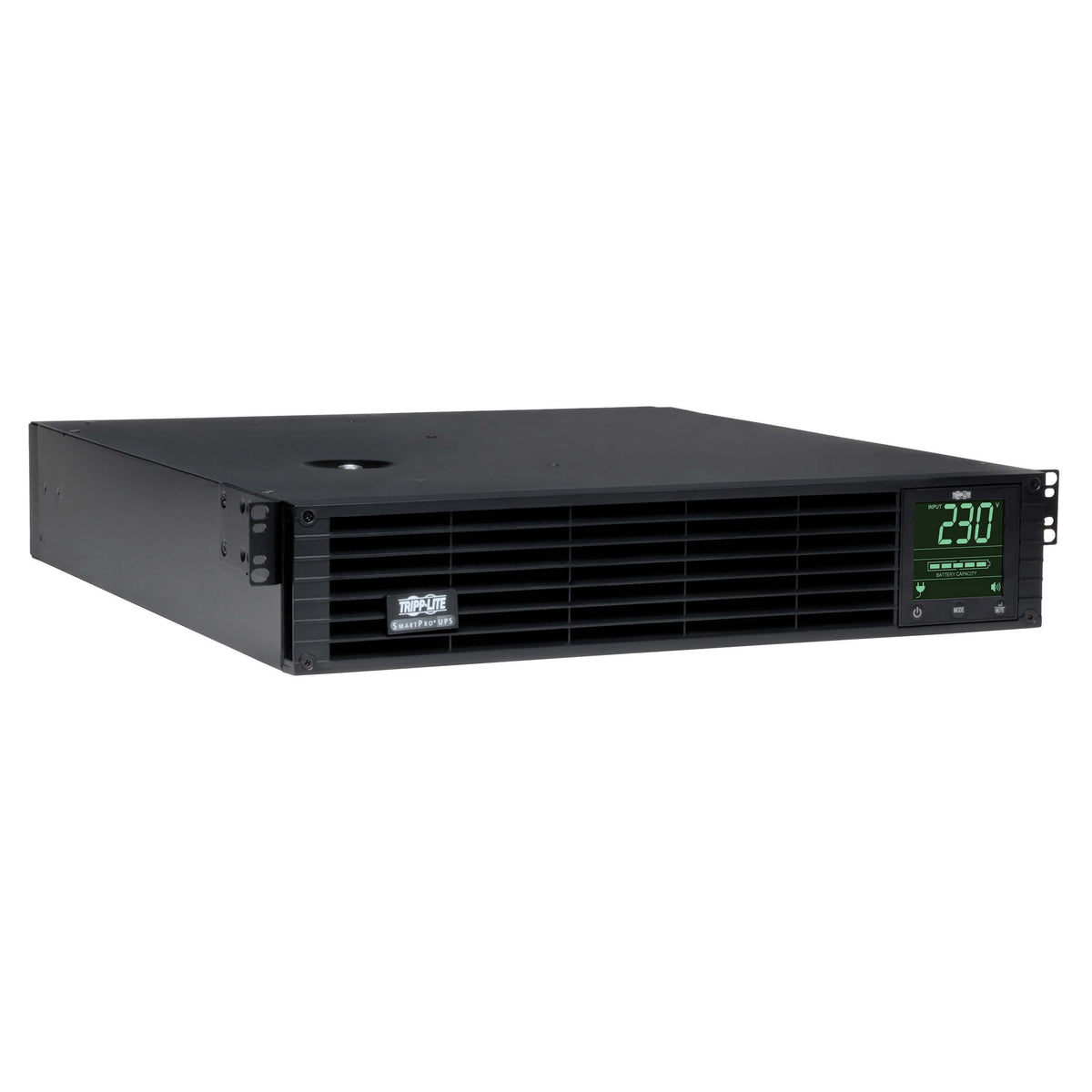

Tripp Lite SmartPro SMX2200XLRT2U 2200 VA / 1920 W Rack/Tower UPS 230 V

Product Features:

Manufacturer:Eaton Corporation

Manufacturer Part Number:SMX2200XLRT2U

Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica

Brand Name:Tripp Lite by Eaton

Product Line:SmartPro

Product Model:SMX2200XLRT2U

Product Name:SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS

Marketing Information:Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

PRODUCT SPECIFICATIONS
AVR	Yes
Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C13
Receptacle Detail	8 x IEC 60320 C13
Protection Type	EMI RFI
Emergency Power OFF	Yes
Transfer Time	6 ms
EMI/RFI Noise Filter	Yes
Phase	Single Phase
Energy Saving	Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage	Server Network Telecommunication
Load Capacity (VA)	2.20 kVA
Load Capacity (Watt)	1.92 kW
Input Voltage	230 V AC
Input Current	10.70 A
Output Voltage	220 V AC 230 V AC 240 V AC
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave
Surge Energy Rating	350 J
Circuit Breaker	Yes
Network Management	SNMP Manageable
Alarm	UPS StartUp Power Failure Low Battery Overload UPS Fault Remote Shutdown
Status Indicators	Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
USB	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes
DC System Voltage	48 V DC
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	11.90 Minute
Typical Battery Recharge Time	4.50 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Maximum Operating Temperature	104 °F (40 °C)
Storage Temperature	5 °F (-15 °C) - 122 °F (50 °C)
Sound Emission (A-Weighted)	45 dB(A)
Thermal Dissipation	161 BTU/h
Height	3.50" (88.90 mm)
Width	17.50" (444.50 mm)
Depth	19.50" (495.30 mm)
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	68.75 lb (31184.48 g)
Package Contents	SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS USB, Serial & EPO cabling 4 post rackmount installation kit Set of 3 C13/C14 power cables Instruction manual
Additional Information	Customized load management receptacles: 3 load banks (1 outlet per bank) that support load shedding and remote reboot on demand of locked network devices. Controllable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices Switches: 2 front panel-mounted push-button switches for system enable, self-test and alarm cancel functions. Rear: set of input voltage dip switches to set unit to actual input voltage. Battery charge level dip switch to adjust UPS system's battery charge rate
Certifications & Standards	CE/IEC 62040 FCC Class A (Emissions) GOST SASO TUV w/GS mark
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Limited Warranty	2 Year
