| UPC | 0731304340393 |
| 4U Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - 2 x IEC 320-C19, 2 x NEMA L6-20R, 3 x IEC Jumper, 4 x IEC 320-C13 - 11 x Battery/Surge Outlet - TAA Compliant | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX3000HVTUS |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS X |
| Product Model: | SMX3000HVTUS |

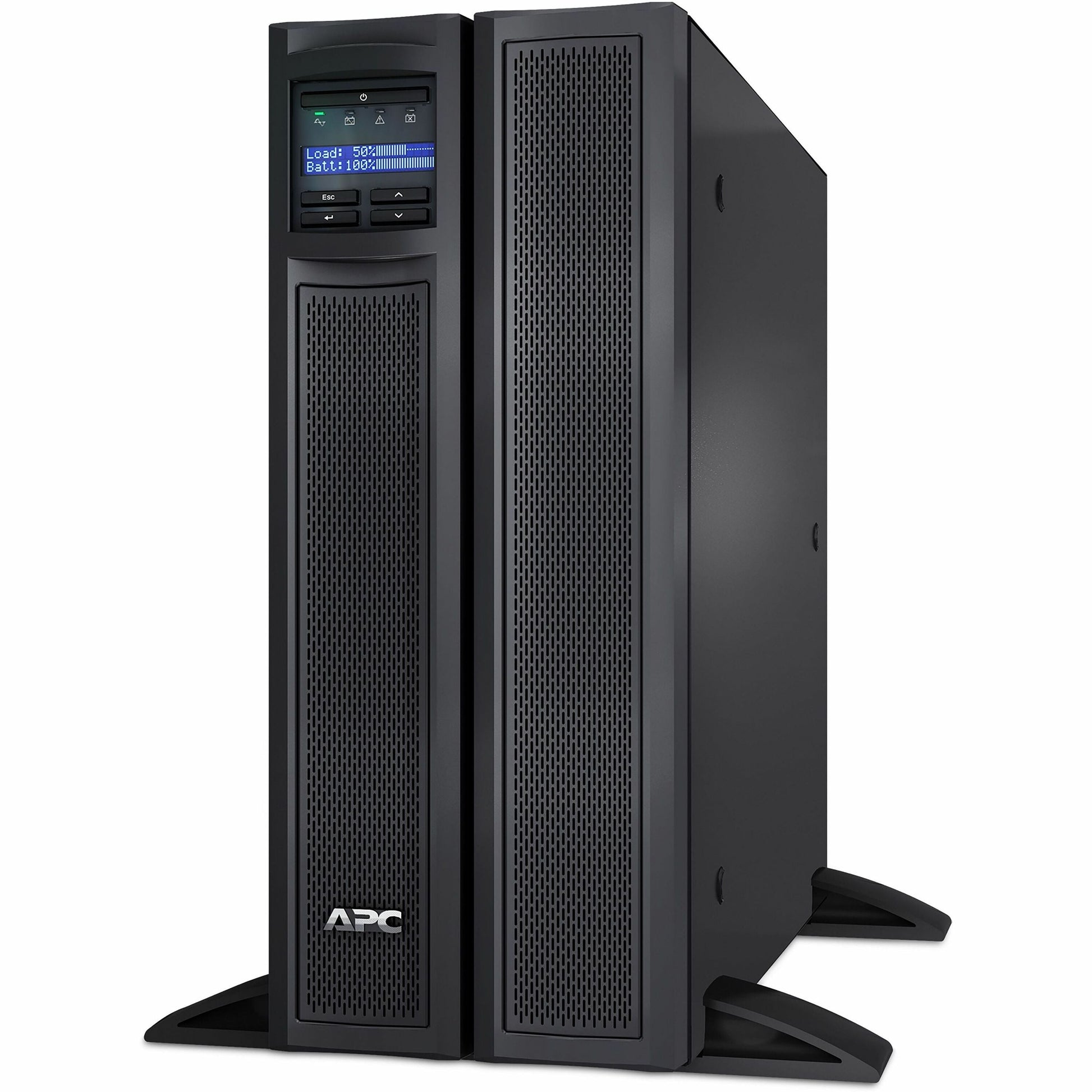

| Product Name: | Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA L6-20P |
| Receptacle Type: | NEMA L6-20P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 11 |
| Cord Length: | 8 ft |
| Transfer Time: | 2 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 208 V |
| Input Voltage Range: | 141 V AC - 280 V AC |
| Output Voltage: | 208 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 645 J | Battery Information |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 6.30 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 7.01" (178 mm) |
| Depth: | 19.02" (483 mm) |
| Rack Height: | 4U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 38.64 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | C-tick|CE|CSA|GOST|IRAM|TAA compliance|VDE |
| Software Included: | Powerchute Serial Edition |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVTUS_ROHS_DECLARATION&p_FileName=SMX3000HVTUSKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326964&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326964&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| TAA Compliant: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
Call us if more information required.
