| UPC | 0731304292654 |
| 4U Rack-mountable - 3 Hour Recharge - 6 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - USB - 1 x NEMA L5-30R, 3 x NEMA 5-20R, 6 x NEMA 5-15R - 10 x Battery/Surge Outlet - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMX3000LVNC |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |

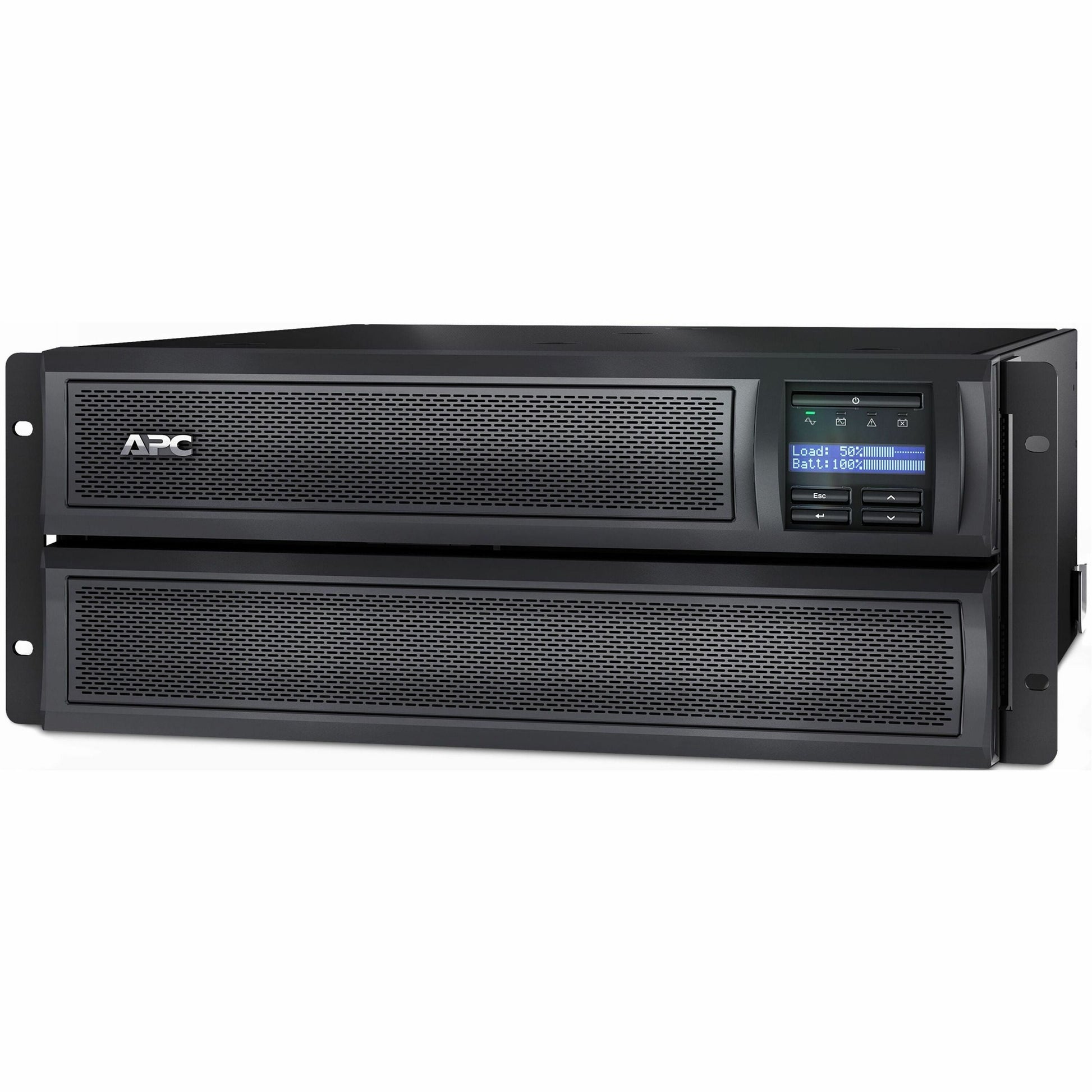

| Product Name: | Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card |
| Marketing Information: | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA L5-30P |
| Receptacle Type: | NEMA L5-30P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 10 |
| Emergency Power OFF: | Yes |
| Cord Length: | 8 ft |
| Transfer Time: | 4 ms | Power Description |
| Load Capacity (VA): | 2.88 kVA |
| Load Capacity (Watt): | 2.70 kW |
| Input Voltage: | 120 V |
| Input Current: | 15 A |
| Output Voltage: | 120 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 540 J | Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Number of Batteries: | 1 |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 6 Minute |
| Backup/Run Time (Half Load): | 18 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 17.01" (432 mm) |
| Width: | 7.01" (178 mm) |
| Depth: | 19.02" (483 mm) |
| Rack Height: | 4U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Mounting Location: | Front |
| Weight (Approximate): | 38.64 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | BSMI|CSA|NOM|TÃœV|VCCI Class A |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000LVNC_ROHS_DECLARATION&p_FileName=SMX3000LVNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166984&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166984&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available |
| Directly Connected Equipment Guarantee: |
|
